Resin 3D printing has revolutionized the world of additive manufacturing, offering unparalleled precision and detail. This technology allows for the creation of highly intricate and complex objects that were previously impossible to achieve with traditional 3D printing methods. Whether you're a hobbyist, a professional designer, or an engineer, understanding the nuances of resin 3D printing can open up a world of possibilities.
Understanding Resin 3D Printing
Resin 3D printing, also known as stereolithography (SLA) or digital light processing (DLP), involves the use of liquid photopolymer resin that is cured layer by layer using UV light. This process results in highly detailed and smooth surfaces, making it ideal for applications that require fine details and high accuracy.

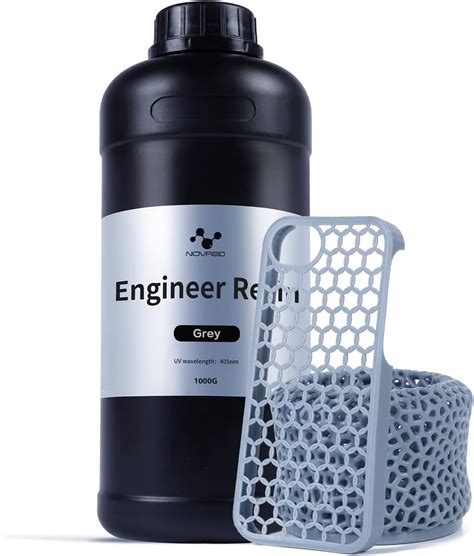

There are several types of resins available for 3D printing, each with its own unique properties and applications. Some of the most common types include:
- Standard Resin: Ideal for general-purpose printing, offering a good balance of strength and detail.
- Tough Resin: Designed for parts that require high impact resistance and durability.
- Flexible Resin: Suitable for creating flexible and elastic parts, such as gaskets and seals.
- Castable Resin: Used for creating molds and patterns for jewelry and other castable materials.
- Biocompatible Resin: Safe for use in medical and dental applications, ensuring biocompatibility.
Setting Up Your Resin 3D Printer
Before you can start printing, you need to set up your resin 3D printer. This involves several steps, including calibration, resin selection, and software configuration. Here’s a step-by-step guide to help you get started:
Calibration
Calibration is crucial for ensuring that your prints come out accurately. Most resin 3D printers come with built-in calibration tools, but you may need to perform manual adjustments as well. Follow these steps:
- Level the build platform to ensure it is perfectly horizontal.
- Adjust the Z-offset to set the correct distance between the build platform and the resin vat.
- Run a test print to check for any issues with layer adhesion or print quality.
Resin Selection
Choosing the right resin is essential for achieving the desired properties in your prints. Consider the following factors when selecting a resin:
- The intended use of the printed object.
- The required mechanical properties, such as strength and flexibility.
- The desired surface finish and detail level.
- The curing time and post-processing requirements.
Software Configuration
Most resin 3D printers come with proprietary software for slicing and printing. Familiarize yourself with the software and configure the settings according to your specific needs. Key settings to adjust include:
- Layer height: Determines the resolution of the print.
- Exposure time: Affects the curing of each layer.
- Support structures: Necessary for overhangs and complex geometries.
🔧 Note: Always refer to the manufacturer's guidelines for specific instructions on calibration and software configuration.
The Resin 3D Printing Process
The resin 3D printing process involves several key steps, from preparation to post-processing. Understanding each step will help you achieve the best results.
Preparation
Before starting a print, ensure that your resin 3D printer is properly set up and calibrated. Prepare your resin by mixing it thoroughly if necessary, and pour it into the resin vat. Make sure the build platform is clean and free of any debris.
Printing

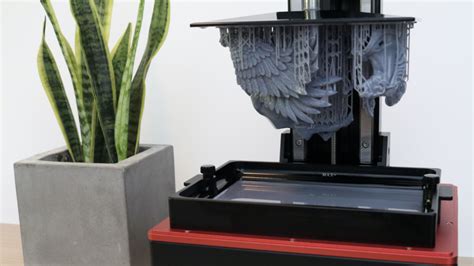

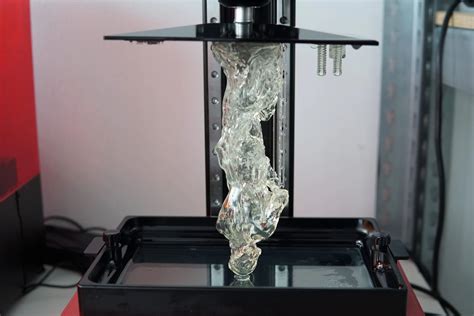

Once everything is set up, you can start the printing process. The printer will cure the resin layer by layer using UV light, building up the object from the bottom up. The printing time will depend on the size and complexity of the object, as well as the layer height and exposure time settings.
Post-Processing
After the print is complete, you will need to perform post-processing steps to achieve the final product. This typically includes:
- Removing the print from the build platform.
- Washing the print in isopropyl alcohol (IPA) to remove any uncured resin.
- Curing the print under UV light to fully harden the resin.
- Removing any support structures and sanding or polishing the surface as needed.
💡 Note: Always wear appropriate protective gear, such as gloves and safety glasses, when handling resin and performing post-processing steps.
Applications of Resin 3D Printing
Resin 3D printing has a wide range of applications across various industries. Some of the most common uses include:
Prototyping
Resin 3D printing is ideal for creating detailed prototypes that require high precision and fine details. This makes it a popular choice for product designers and engineers who need to test and iterate their designs quickly.
Jewelry Making
The ability to create intricate and delicate designs makes resin 3D printing perfect for jewelry making. Many jewelers use resin 3D printing to create molds and patterns for casting precious metals.
Dental and Medical Applications
Biocompatible resins are used in dental and medical applications, such as creating custom dental implants, orthodontic models, and surgical guides. The high accuracy and detail of resin 3D printing make it suitable for these critical applications.

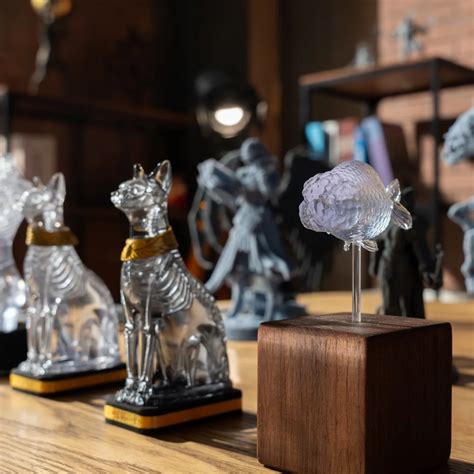

Art and Design

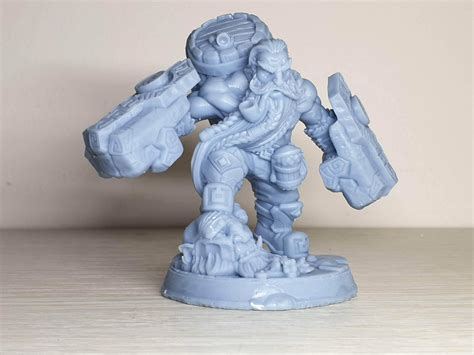

Artists and designers often use resin 3D printing to create unique and intricate sculptures, figurines, and decorative items. The ability to produce highly detailed and smooth surfaces makes it a popular choice for artistic endeavors.
Tips for Successful Resin 3D Printing
To ensure successful resin 3D printing, follow these tips:
- Use fresh resin for each print to ensure optimal curing.
- Store resin in a cool, dark place to prevent premature curing.
- Regularly clean the resin vat and build platform to remove any residue.
- Adjust exposure times and layer heights based on the specific resin and printer settings.
- Use support structures for complex geometries to prevent print failures.
🛠️ Note: Always follow the manufacturer's guidelines for maintenance and troubleshooting to keep your printer in optimal condition.
Common Issues and Troubleshooting
Even with careful preparation, issues can arise during the resin 3D printing process. Here are some common problems and their solutions:
Layer Adhesion Issues
If you notice that layers are not adhering properly, it could be due to incorrect exposure times or an improperly calibrated printer. Adjust the exposure time and ensure that the build platform is level.
Resin Curing Problems
If the resin is not curing properly, it could be due to a weak UV light source or contaminated resin. Check the UV light and replace the resin if necessary.
Print Failures
Print failures can occur due to various reasons, such as incorrect support structures, insufficient curing, or mechanical issues with the printer. Ensure that support structures are properly placed and that the printer is functioning correctly.
Comparing Resin 3D Printing to Other Methods
Resin 3D printing offers several advantages over other 3D printing methods, such as Fused Deposition Modeling (FDM) and Selective Laser Sintering (SLS). Here’s a comparison:
| Method | Resolution | Material Properties | Post-Processing |
|---|---|---|---|
| Resin 3D Printing | High | Smooth, detailed surfaces | Requires washing and curing |
| FDM | Lower | Layered, rough surfaces | Minimal post-processing |
| SLS | Medium | Strong, durable parts | Requires powder removal |
While FDM is more affordable and easier to use, resin 3D printing offers superior detail and surface finish. SLS is ideal for functional parts but lacks the fine detail of resin 3D printing.
📊 Note: The choice of 3D printing method depends on the specific requirements of your project, including resolution, material properties, and post-processing needs.
Future Trends in Resin 3D Printing
Resin 3D printing technology is continually evolving, with new advancements and innovations emerging regularly. Some of the future trends to watch out for include:
- Improved resin formulations with enhanced mechanical properties and biocompatibility.
- Faster printing speeds and higher resolution through advancements in UV light sources and printing algorithms.
- Integration with AI and machine learning for automated calibration and troubleshooting.
- Expansion into new industries, such as aerospace and automotive, where high precision and durability are crucial.
As resin 3D printing technology continues to advance, it will open up even more possibilities for creators and innovators across various fields.
Resin 3D printing has transformed the way we approach additive manufacturing, offering unmatched precision and detail. From prototyping to jewelry making, dental applications to artistic creations, the versatility of resin 3D printing makes it a valuable tool for professionals and hobbyists alike. By understanding the nuances of this technology and following best practices, you can unlock its full potential and create stunning, high-quality prints. The future of resin 3D printing is bright, with ongoing advancements promising even more exciting possibilities in the years to come.
