Residence Time Distribution

Understanding the dynamics of chemical reactors is crucial for optimizing industrial processes. One of the key concepts in this field is the Residence Time Distribution (RTD), which provides insights into how long reactants spend in the reactor. This distribution is essential for designing and operating reactors efficiently, ensuring that reactions occur under optimal conditions.

Table of Contents

What is Residence Time Distribution?

The Residence Time Distribution (RTD) is a statistical measure that describes the time spent by fluid elements within a reactor. It is a fundamental concept in chemical engineering, particularly in the design and analysis of continuous flow reactors. The RTD helps engineers understand the mixing patterns and flow characteristics within the reactor, which are critical for achieving desired reaction outcomes.

Importance of Residence Time Distribution

The RTD is important for several reasons:

Optimizing Reactor Performance: By understanding the RTD, engineers can optimize the reactor's performance, ensuring that reactants spend the right amount of time in the reactor to achieve complete conversion.
Improving Product Quality: The RTD helps in maintaining consistent product quality by ensuring uniform mixing and reaction conditions.
Reducing Operational Costs: Efficient use of the reactor based on RTD data can lead to reduced operational costs by minimizing energy consumption and waste.
Enhancing Safety: Proper understanding of the RTD can help in designing safer reactors by preventing hot spots and ensuring uniform temperature distribution.

Types of Residence Time Distribution

There are two primary types of RTD: ideal and non-ideal. Each type has its own characteristics and implications for reactor design and operation.

Ideal Residence Time Distribution

An ideal RTD assumes perfect mixing within the reactor. There are two main types of ideal RTD:

Plug Flow Reactor (PFR): In a PFR, the fluid moves through the reactor in a plug-like manner, with no axial mixing. The RTD for a PFR is a narrow distribution centered around the mean residence time.
Continuous Stirred Tank Reactor (CSTR): In a CSTR, the fluid is perfectly mixed, resulting in an exponential RTD. The RTD for a CSTR is broader, indicating a wider range of residence times.

Non-Ideal Residence Time Distribution

In reality, most reactors exhibit non-ideal behavior due to factors such as dead zones, bypassing, and channeling. Non-ideal RTD can be more complex and requires detailed analysis to understand the flow patterns within the reactor.

Measuring Residence Time Distribution

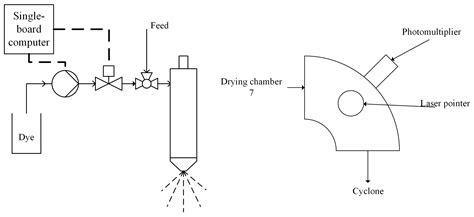

Measuring the RTD involves injecting a tracer into the reactor and monitoring its concentration at the outlet over time. The tracer should be inert and easily detectable. The data collected is then used to construct the RTD curve, which provides insights into the flow characteristics of the reactor.

Here are the steps to measure the RTD:

Select a Tracer: Choose a tracer that is inert and can be easily detected. Common tracers include dyes, salts, and radioactive isotopes.
Inject the Tracer: Inject the tracer into the reactor at a specific point. The injection should be instantaneous to ensure accurate measurement.
Monitor the Outlet: Collect samples at the reactor outlet at regular intervals and measure the tracer concentration.
Construct the RTD Curve: Plot the tracer concentration against time to construct the RTD curve. The area under the curve represents the total amount of tracer injected.

📝 Note: The accuracy of the RTD measurement depends on the precision of the tracer injection and the sampling frequency. Ensure that the tracer is well-mixed and that the sampling intervals are sufficiently small to capture the dynamics of the system.

Interpreting Residence Time Distribution Curves

The RTD curve provides valuable information about the flow patterns within the reactor. Key parameters derived from the RTD curve include:

Mean Residence Time (τ): The average time spent by fluid elements in the reactor. It is calculated as the ratio of the reactor volume to the volumetric flow rate.
Variance (σ²): A measure of the spread of the RTD curve. A narrower curve indicates less dispersion and more plug-like flow, while a broader curve indicates more mixing and non-ideal behavior.
Dead Time: The time taken for the tracer to first appear at the outlet. It indicates the presence of dead zones or bypassing in the reactor.

Here is an example of an RTD curve for a CSTR:

Time (min)	Tracer Concentration (ppm)
0	0
1	5
2	10
3	15
4	20
5	25
6	30
7	25
8	20
9	15
10	10
11	5
12	0

The RTD curve for a CSTR typically shows an exponential decay, indicating a wide range of residence times. In contrast, the RTD curve for a PFR is narrower and more peaked, reflecting the plug-like flow.

Applications of Residence Time Distribution

The RTD has numerous applications in chemical engineering, including:

Reactor Design: Understanding the RTD helps in designing reactors that achieve the desired conversion and selectivity.
Process Optimization: The RTD can be used to optimize process conditions, such as temperature, pressure, and flow rate, to improve reactor performance.
Troubleshooting: Analyzing the RTD can help identify and resolve issues such as dead zones, bypassing, and channeling in the reactor.
Scale-Up: The RTD provides valuable insights for scaling up laboratory-scale reactors to industrial-scale operations.

Challenges in Measuring Residence Time Distribution

Measuring the RTD can be challenging due to several factors:

Tracer Selection: Choosing an appropriate tracer that is inert and easily detectable can be difficult, especially in complex systems.
Sampling Frequency: Ensuring that the sampling frequency is sufficient to capture the dynamics of the system requires careful planning and execution.
Data Analysis: Analyzing the RTD data to derive meaningful insights can be complex, especially for non-ideal reactors.

📝 Note: Overcoming these challenges requires a combination of theoretical knowledge, experimental skills, and advanced data analysis techniques. Collaboration with experts in chemical engineering and data science can be beneficial.

Future Trends in Residence Time Distribution

The field of RTD is evolving rapidly, driven by advancements in technology and computational methods. Some of the future trends include:

Advanced Tracers: Development of new tracers that are more sensitive and specific, allowing for more accurate measurement of RTD.
Real-Time Monitoring: Implementation of real-time monitoring systems that provide continuous data on the RTD, enabling dynamic optimization of reactor performance.
Machine Learning: Application of machine learning algorithms to analyze RTD data and predict reactor behavior under different conditions.
Integrated Systems: Integration of RTD analysis with other process monitoring tools to provide a comprehensive view of reactor performance.

These trends are expected to enhance the accuracy and efficiency of RTD measurements, leading to improved reactor design and operation.

In conclusion, the Residence Time Distribution (RTD) is a critical concept in chemical engineering that provides valuable insights into the dynamics of chemical reactors. By understanding and measuring the RTD, engineers can optimize reactor performance, improve product quality, reduce operational costs, and enhance safety. The future of RTD analysis holds promise with advancements in technology and computational methods, paving the way for more efficient and effective reactor design and operation.
