Electrical wiring can be a complex task, especially when it comes to relay wiring. A relay is an electrically operated switch that can control a circuit by opening and closing contacts. Understanding how to wire a relay correctly is crucial for ensuring the safety and functionality of your electrical system. This Relay Wiring Guide will walk you through the basics of relay wiring, including the types of relays, their components, and step-by-step wiring instructions.
Understanding Relays
A relay is an essential component in many electrical and electronic circuits. It acts as a switch that can be controlled by an electrical signal. Relays are used in a variety of applications, from automotive systems to industrial machinery, and even in home automation. There are several types of relays, each with its own specific use cases.
Types of Relays
Relays can be categorized based on their construction and operation. The most common types include:
- Electromechanical Relays: These relays use an electromagnet to mechanically operate a switch. They are reliable and can handle high currents and voltages.
- Solid-State Relays (SSR): These relays use semiconductor devices to switch currents. They are faster and more durable than electromechanical relays but are generally more expensive.
- Thermal Relays: These relays use heat to operate a switch. They are often used in applications where temperature control is necessary.
- Latching Relays: These relays remain in their last position even after the control signal is removed. They are useful in applications where power needs to be conserved.
Components of a Relay
Regardless of the type, a relay typically consists of the following components:
- Coil: The part of the relay that generates a magnetic field when an electric current is passed through it.
- Contacts: The points where the electrical circuit is made or broken. Contacts can be normally open (NO) or normally closed (NC).
- Armature: The moving part of the relay that is attracted by the magnetic field generated by the coil.
- Spring: The component that returns the armature to its original position when the magnetic field is removed.
Relay Wiring Basics
Wiring a relay involves connecting the coil and the contacts to the appropriate parts of your circuit. The process can vary slightly depending on the type of relay, but the basic principles remain the same. Here is a step-by-step guide to wiring a typical electromechanical relay.
Tools and Materials Needed
Before you begin, gather the following tools and materials:
- Relay
- Wire strippers
- Screwdrivers
- Multimeter
- Electrical tape
- Wires
Step-by-Step Relay Wiring Guide
Follow these steps to wire your relay correctly:
- Identify the Relay Terminals: Most relays have four or five terminals. The coil terminals are usually labeled as "Coil 1" and "Coil 2," while the contact terminals are labeled as "Common," "Normally Open (NO)," and "Normally Closed (NC)."
- Connect the Coil: Connect one end of the coil to the positive terminal of your power source and the other end to the negative terminal. This will energize the relay when the power is applied.
- Connect the Contacts: Connect the "Common" terminal to the load you want to control. Connect the "Normally Open (NO)" terminal to one side of the load and the "Normally Closed (NC)" terminal to the other side of the load, if applicable.
- Test the Relay: Use a multimeter to test the continuity of the contacts. When the coil is energized, the "Common" terminal should be connected to the "Normally Open (NO)" terminal. When the coil is de-energized, the "Common" terminal should be connected to the "Normally Closed (NC)" terminal.
🔧 Note: Always ensure that the power is turned off before making any connections to avoid electrical shock.
Common Relay Wiring Configurations
Relays can be wired in various configurations depending on the application. Here are some common configurations:
Single-Pole Single-Throw (SPST) Relay
An SPST relay has one set of contacts that can be either open or closed. This is the simplest type of relay and is often used in basic switching applications.
| Terminal | Connection |
|---|---|
| Coil 1 | Positive terminal of power source |
| Coil 2 | Negative terminal of power source |
| Common | One side of the load |
| NO | Other side of the load |
Single-Pole Double-Throw (SPDT) Relay
An SPDT relay has one set of contacts that can be connected to either of two positions. This type of relay is useful when you need to switch between two different loads.
| Terminal | Connection |
|---|---|
| Coil 1 | Positive terminal of power source |
| Coil 2 | Negative terminal of power source |
| Common | One side of the load |
| NO | Other side of the load |
| NC | Other side of the load |
Double-Pole Single-Throw (DPST) Relay
A DPST relay has two sets of contacts that can be either open or closed simultaneously. This type of relay is useful when you need to control two separate circuits with a single relay.
| Terminal | Connection |
|---|---|
| Coil 1 | Positive terminal of power source |
| Coil 2 | Negative terminal of power source |
| Common 1 | One side of the first load |
| NO 1 | Other side of the first load |
| Common 2 | One side of the second load |
| NO 2 | Other side of the second load |
Safety Precautions
Working with electrical components, including relays, can be dangerous if not done correctly. Here are some safety precautions to keep in mind:
- Turn Off Power: Always turn off the power supply before making any connections or disconnections.
- Use Insulated Tools: Use insulated tools to avoid electrical shock.
- Wear Protective Gear: Wear appropriate protective gear, such as safety glasses and gloves.
- Check for Continuity: Use a multimeter to check for continuity before and after making connections.
⚠️ Note: Never work on live circuits. Always ensure that the power is turned off before handling any electrical components.
Troubleshooting Relay Wiring
Even with careful wiring, issues can arise. Here are some common problems and their solutions:
Relay Not Switching
If the relay is not switching, check the following:
- Ensure that the coil is receiving power.
- Check for continuity in the coil.
- Verify that the contacts are not stuck or damaged.
Relay Sticking
If the relay is sticking, it may be due to:
- Dirt or debris in the contacts.
- A weak spring.
- Excessive heat.
Clean the contacts and ensure that the relay is not overheating.
Relay Overheating
If the relay is overheating, it may be due to:
- Excessive current through the coil.
- Poor ventilation.
- A faulty relay.
Reduce the current through the coil and ensure proper ventilation.
🛠️ Note: Regular maintenance and inspection can help prevent many relay-related issues.
Applications of Relays
Relays are used in a wide range of applications, from simple switching tasks to complex control systems. Here are some common applications:
Automotive Systems

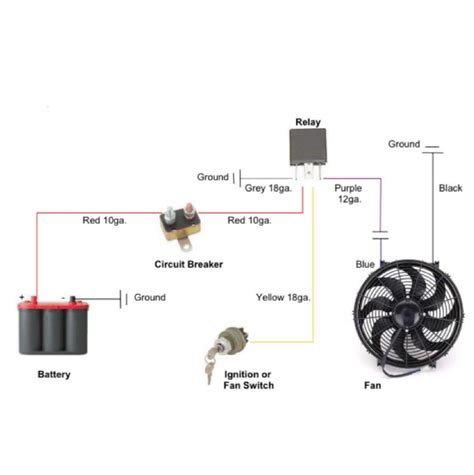

Relays are used in automotive systems to control various functions, such as headlights, windshield wipers, and fuel pumps. They help manage the high currents required by these components without overloading the control circuits.
Industrial Machinery
In industrial settings, relays are used to control motors, pumps, and other machinery. They are essential for automating processes and ensuring safety by isolating control circuits from high-power circuits.
Home Automation
Relays are used in home automation systems to control lights, appliances, and HVAC systems. They allow for remote control and automation of various household functions, enhancing convenience and energy efficiency.
Telecommunications
Relays are used in telecommunications to switch signals between different circuits. They are crucial for routing calls and data in telecommunication networks.
🔧 Note: Always choose the right type of relay for your specific application to ensure optimal performance and safety.
Relay wiring is a fundamental skill for anyone working with electrical systems. By understanding the basics of relay wiring and following a Relay Wiring Guide, you can ensure the safe and efficient operation of your electrical circuits. Whether you are working on automotive systems, industrial machinery, or home automation, relays play a crucial role in controlling and managing electrical power. Always prioritize safety and follow best practices to avoid potential hazards and ensure reliable performance.
