Understanding the intricacies of a refrigeration system is crucial for anyone involved in HVAC (Heating, Ventilation, and Air Conditioning) or refrigeration engineering. One of the most fundamental aspects of these systems is the refrigerant cycle diagram. This diagram provides a visual representation of the processes involved in transferring heat from one location to another, making it an essential tool for both learning and troubleshooting.
Understanding the Basics of a Refrigerant Cycle
A refrigeration cycle is a series of processes that involve the compression and expansion of a refrigerant to absorb and release heat. The cycle typically consists of four main components: the compressor, condenser, expansion valve, and evaporator. Each of these components plays a crucial role in the overall operation of the system.
The Components of a Refrigerant Cycle Diagram

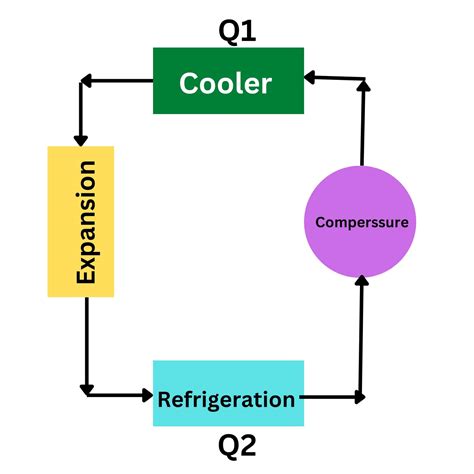

The refrigerant cycle diagram is a schematic representation of these components and their interactions. Let's break down each component and its function:
- Compressor: This is the heart of the refrigeration system. It compresses the refrigerant gas, increasing its pressure and temperature.
- Condenser: The high-pressure, high-temperature refrigerant gas from the compressor flows into the condenser, where it releases heat to the surrounding environment and condenses into a liquid.
- Expansion Valve: The liquid refrigerant then passes through an expansion valve, which reduces its pressure and temperature, converting it into a low-pressure, low-temperature liquid-vapor mixture.
- Evaporator: Finally, the refrigerant enters the evaporator, where it absorbs heat from the surrounding environment, causing it to evaporate and return to a gaseous state.
The Refrigerant Cycle Process
The refrigeration cycle can be divided into four main processes: compression, condensation, expansion, and evaporation. Each of these processes is represented on the refrigerant cycle diagram and is crucial for understanding how the system works.
Compression
The cycle begins with the compressor, which takes in low-pressure, low-temperature refrigerant vapor and compresses it. This process increases the pressure and temperature of the refrigerant, preparing it for the next stage.
Condensation
The high-pressure, high-temperature refrigerant vapor then flows into the condenser. Here, it releases heat to the surrounding environment, causing it to condense into a liquid. This process is essential for removing heat from the system.
Expansion
The liquid refrigerant then passes through an expansion valve, which reduces its pressure and temperature. This sudden drop in pressure causes the refrigerant to partially evaporate, creating a low-pressure, low-temperature liquid-vapor mixture.
Evaporation
Finally, the refrigerant enters the evaporator, where it absorbs heat from the surrounding environment. This causes the refrigerant to evaporate completely, returning it to a gaseous state. The low-pressure, low-temperature refrigerant vapor is then ready to be compressed again, completing the cycle.
Types of Refrigerant Cycle Diagrams
There are several types of refrigerant cycle diagrams, each designed to illustrate different aspects of the refrigeration process. The most common types include:

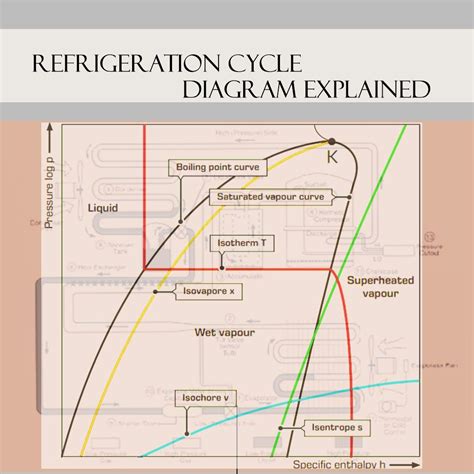

- Pressure-Enthalpy Diagram: This diagram shows the relationship between pressure and enthalpy (total heat content) of the refrigerant. It is useful for understanding the energy changes that occur during the refrigeration cycle.
- Temperature-Entropy Diagram: This diagram illustrates the relationship between temperature and entropy (a measure of disorder) of the refrigerant. It is helpful for analyzing the efficiency of the refrigeration cycle.
- P-h Diagram: This is a simplified version of the pressure-enthalpy diagram, often used for educational purposes. It provides a clear visual representation of the refrigeration cycle without the complexity of a full pressure-enthalpy diagram.
Interpreting a Refrigerant Cycle Diagram
Interpreting a refrigerant cycle diagram involves understanding the relationships between pressure, temperature, and enthalpy at each stage of the cycle. Here are some key points to consider:
- Pressure and Temperature: The pressure and temperature of the refrigerant change at each stage of the cycle. Understanding these changes is crucial for diagnosing and troubleshooting issues in the system.
- Enthalpy: Enthalpy is a measure of the total heat content of the refrigerant. It is important for understanding the energy changes that occur during the refrigeration cycle.
- Entropy: Entropy is a measure of the disorder or randomness in the system. It is useful for analyzing the efficiency of the refrigeration cycle and identifying areas for improvement.
To better understand the refrigerant cycle diagram, let's look at a simplified example:
| Stage | Pressure | Temperature | Enthalpy | Entropy |
|---|---|---|---|---|
| Compression | High | High | High | Low |
| Condensation | High | High | Medium | Medium |
| Expansion | Low | Low | Low | High |
| Evaporation | Low | Low | Medium | Medium |
🔍 Note: The values in the table are relative and can vary depending on the specific refrigerant and system design.
Applications of Refrigerant Cycle Diagrams
The refrigerant cycle diagram is a versatile tool used in various applications, including:
- HVAC Systems: In heating, ventilation, and air conditioning systems, the diagram helps in designing and troubleshooting the refrigeration cycle.
- Refrigeration Units: For commercial and industrial refrigeration units, the diagram is essential for optimizing performance and ensuring efficient operation.
- Heat Pumps: In heat pump systems, the diagram aids in understanding the heat transfer process and improving energy efficiency.
- Academic Research: In educational settings, the diagram is used to teach students about the principles of refrigeration and heat transfer.
Common Issues and Troubleshooting
Understanding the refrigerant cycle diagram is also crucial for troubleshooting common issues in refrigeration systems. Some of the most common problems include:
- Low Refrigerant Charge: This can cause the system to operate inefficiently, leading to higher energy consumption and reduced cooling capacity.
- Compressor Failure: Issues with the compressor can disrupt the entire refrigeration cycle, leading to system failure.
- Condenser Problems: Clogged or dirty condensers can reduce the system's ability to release heat, affecting its overall performance.
- Expansion Valve Issues: Problems with the expansion valve can lead to improper refrigerant flow, causing the system to malfunction.
- Evaporator Issues: A faulty evaporator can result in inadequate heat absorption, reducing the system's cooling capacity.
By analyzing the refrigerant cycle diagram, technicians can identify the root cause of these issues and take appropriate corrective actions.
For example, if the system is not cooling properly, the diagram can help determine whether the issue is with the compressor, condenser, expansion valve, or evaporator. This systematic approach ensures that the problem is addressed efficiently, minimizing downtime and repair costs.
Additionally, the diagram can be used to optimize the system's performance by identifying areas where energy efficiency can be improved. For instance, adjusting the refrigerant charge or cleaning the condenser can enhance the system's overall efficiency.
In summary, the refrigerant cycle diagram is an indispensable tool for anyone working with refrigeration systems. It provides a clear visual representation of the processes involved in transferring heat, making it easier to understand, troubleshoot, and optimize these systems.
By mastering the refrigerant cycle diagram, professionals can ensure that refrigeration systems operate efficiently and reliably, providing the desired cooling or heating effects while minimizing energy consumption and maintenance costs.
In conclusion, the refrigerant cycle diagram is a fundamental tool in the field of refrigeration and HVAC engineering. It offers a comprehensive view of the refrigeration cycle, helping professionals to design, troubleshoot, and optimize systems effectively. Whether you are a student learning the basics of refrigeration or a seasoned professional, understanding the refrigerant cycle diagram is essential for success in this field.
