Understanding the intricacies of a refrigerant AC car system is crucial for anyone looking to maintain or upgrade their vehicle's cooling capabilities. This blog post delves into the fundamentals of refrigerant AC car systems, their components, common issues, and maintenance tips to ensure optimal performance.
Understanding Refrigerant AC Car Systems

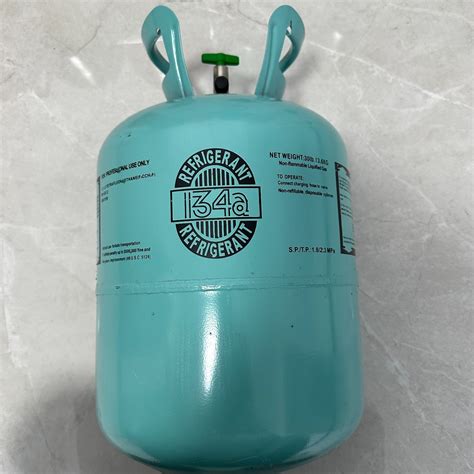

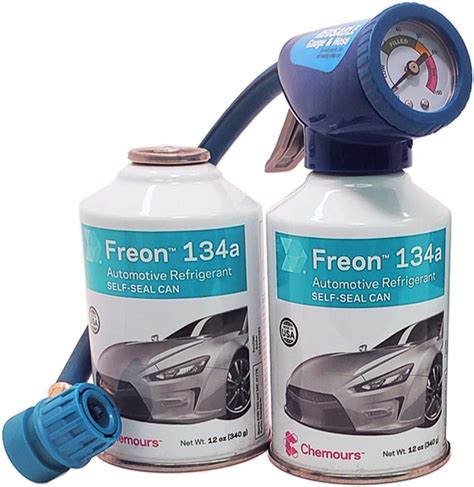

A refrigerant AC car system is designed to cool the interior of a vehicle by removing heat and humidity. The system operates on a cycle that involves several key components, each playing a vital role in the cooling process. The primary refrigerant used in modern car AC systems is R-134a, although newer vehicles may use R-1234yf due to environmental regulations.
Key Components of a Refrigerant AC Car System
The refrigerant AC car system consists of several essential components:
- Compressor: The heart of the system, the compressor pressurizes the refrigerant, converting it from a low-pressure gas to a high-pressure gas.
- Condenser: Located at the front of the vehicle, the condenser dissipates heat from the high-pressure refrigerant, converting it into a liquid.
- Receiver/Drier or Accumulator: This component stores excess refrigerant and removes moisture and contaminants from the system.
- Expansion Valve or Orifice Tube: This component regulates the flow of refrigerant into the evaporator, allowing it to expand and cool.
- Evaporator: Located inside the vehicle, the evaporator absorbs heat from the cabin air, cooling it before it is circulated back into the interior.
How a Refrigerant AC Car System Works
The operation of a refrigerant AC car system can be broken down into four main stages:
- Compression: The compressor squeezes the refrigerant, increasing its pressure and temperature.
- Condensation: The high-pressure, high-temperature refrigerant flows through the condenser, where it releases heat and condenses into a liquid.
- Expansion: The liquid refrigerant passes through the expansion valve or orifice tube, where it rapidly expands and cools.
- Evaporation: The cold, low-pressure refrigerant flows through the evaporator, absorbing heat from the cabin air and cooling it.
This cycle repeats continuously, ensuring that the vehicle's interior remains cool and comfortable.
Common Issues with Refrigerant AC Car Systems
Despite their efficiency, refrigerant AC car systems can encounter various issues. Some of the most common problems include:
- Refrigerant Leaks: Leaks in the system can cause a loss of refrigerant, leading to reduced cooling performance. Common leak points include hoses, seals, and the compressor.
- Compressor Failure: The compressor is a critical component, and its failure can render the entire system inoperable. Common causes of compressor failure include electrical issues, lack of lubrication, and contamination.
- Condenser Problems: The condenser can become clogged with debris or damaged, reducing its ability to dissipate heat. This can lead to poor cooling performance and increased strain on the compressor.
- Evaporator Issues: The evaporator can become clogged with debris or develop leaks, affecting its ability to absorb heat from the cabin air. This can result in reduced cooling performance and potential health risks due to mold growth.
Maintaining Your Refrigerant AC Car System
Regular maintenance is essential to keep your refrigerant AC car system running smoothly. Here are some tips to ensure optimal performance:
- Regular Inspections: Have your AC system inspected by a professional at least once a year. This can help identify potential issues before they become major problems.
- Refrigerant Checks: Ensure that the refrigerant level is adequate. Low refrigerant levels can indicate a leak, which should be addressed promptly.
- Filter Replacement: Replace the cabin air filter regularly to prevent debris from entering the system and clogging the evaporator.
- Condenser Cleaning: Keep the condenser clean and free of debris. This can be done by gently washing it with water or using a compressed air cleaner.
- Belt Inspection: Check the serpentine belt that drives the compressor for signs of wear or damage. A worn belt can cause the compressor to malfunction.
By following these maintenance tips, you can extend the lifespan of your refrigerant AC car system and ensure it continues to provide reliable cooling performance.
🔧 Note: Always use a certified technician for major repairs and refrigerant handling to comply with environmental regulations and safety standards.
Troubleshooting Refrigerant AC Car Issues
If you encounter problems with your refrigerant AC car system, here are some troubleshooting steps you can take:
- Check the Fuses and Relays: Inspect the fuses and relays associated with the AC system. A blown fuse or faulty relay can prevent the system from functioning properly.
- Inspect the Compressor Clutch: Ensure that the compressor clutch is engaging when the AC is turned on. If it is not, there may be an electrical issue or a problem with the clutch itself.
- Listen for Unusual Noises: Pay attention to any unusual noises coming from the AC system. Grinding, squealing, or rattling sounds can indicate a problem with the compressor, fan, or other components.
- Check for Leaks: Use a UV dye or electronic leak detector to identify any refrigerant leaks in the system. Leaks can be repaired by a professional technician.
- Inspect the Condenser and Evaporator: Ensure that the condenser and evaporator are clean and free of debris. Clogged components can reduce cooling performance.
If these troubleshooting steps do not resolve the issue, it is best to consult a professional technician for further diagnosis and repair.
🛠️ Note: Always turn off the engine and allow the system to cool down before performing any inspections or repairs.
Environmental Considerations for Refrigerant AC Car Systems
The refrigerant used in refrigerant AC car systems has significant environmental implications. Older refrigerants, such as R-12, are known to deplete the ozone layer and contribute to global warming. Modern refrigerants, like R-134a and R-1234yf, are designed to be more environmentally friendly but still require proper handling and disposal.
When servicing or disposing of a refrigerant AC car system, it is crucial to follow environmental regulations and guidelines. This includes:
- Proper Disposal: Ensure that old refrigerant is properly recovered and disposed of according to local regulations. This helps prevent environmental contamination and compliance with legal standards.
- Certified Technicians: Use certified technicians who are trained in handling refrigerants safely and responsibly. This ensures that the system is serviced correctly and that environmental standards are met.
- Regular Maintenance: Regularly maintain your AC system to prevent leaks and ensure efficient operation. This not only extends the lifespan of the system but also reduces the environmental impact.
By adhering to these environmental considerations, you can help minimize the impact of your refrigerant AC car system on the environment while ensuring optimal performance.
🌍 Note: Always check local regulations and guidelines for handling and disposing of refrigerants to ensure compliance with environmental standards.
Upgrading Your Refrigerant AC Car System
If you are considering upgrading your refrigerant AC car system, there are several factors to consider. Upgrading can improve cooling performance, fuel efficiency, and environmental impact. Here are some options for upgrading your system:
- Refrigerant Conversion: Convert your system from an older refrigerant, such as R-12, to a more environmentally friendly option like R-134a or R-1234yf. This requires flushing the system and replacing all components that come into contact with the refrigerant.
- Compressor Upgrade: Upgrade to a more efficient compressor that can handle higher pressures and temperatures. This can improve cooling performance and reduce strain on the system.
- Condenser and Evaporator Replacement: Replace the condenser and evaporator with more efficient models. This can enhance heat dissipation and absorption, leading to better cooling performance.
- Expansion Valve or Orifice Tube Upgrade: Upgrade the expansion valve or orifice tube to a more precise and efficient model. This can improve refrigerant flow and cooling performance.
Before proceeding with any upgrades, it is essential to consult with a professional technician to ensure compatibility and proper installation. Upgrading your refrigerant AC car system can significantly enhance its performance and efficiency, providing a more comfortable driving experience.
🔧 Note: Always consult with a certified technician before upgrading your AC system to ensure compatibility and proper installation.
Refrigerant AC Car System Components and Their Functions
The following table outlines the key components of a refrigerant AC car system and their functions:
| Component | Function |
|---|---|
| Compressor | Pressurizes the refrigerant, converting it from a low-pressure gas to a high-pressure gas. |
| Condenser | Dissipates heat from the high-pressure refrigerant, converting it into a liquid. |
| Receiver/Drier or Accumulator | Stores excess refrigerant and removes moisture and contaminants from the system. |
| Expansion Valve or Orifice Tube | Regulates the flow of refrigerant into the evaporator, allowing it to expand and cool. |
| Evaporator | Absorbs heat from the cabin air, cooling it before it is circulated back into the interior. |
Understanding the functions of these components is crucial for diagnosing and maintaining your refrigerant AC car system effectively.
🛠️ Note: Regular inspections and maintenance of these components can prevent major issues and ensure optimal performance.
In conclusion, a well-maintained refrigerant AC car system is essential for keeping your vehicle’s interior cool and comfortable. By understanding the components, common issues, and maintenance tips, you can ensure that your system operates efficiently and reliably. Regular inspections, proper handling of refrigerants, and timely upgrades can extend the lifespan of your AC system and minimize its environmental impact. Whether you are troubleshooting issues or considering an upgrade, consulting with a professional technician is always a wise choice to ensure the best results.
