Red White Black Wiring

Understanding the intricacies of electrical wiring is crucial for anyone involved in home improvement or electrical projects. One of the most common wiring configurations is the Red White Black Wiring system, which is widely used in residential and commercial settings. This system involves three primary wires: red, white, and black, each serving a specific purpose in the electrical circuit. In this post, we will delve into the details of Red White Black Wiring, its components, and how to properly install and maintain it.

Table of Contents

Understanding the Components of Red White Black Wiring

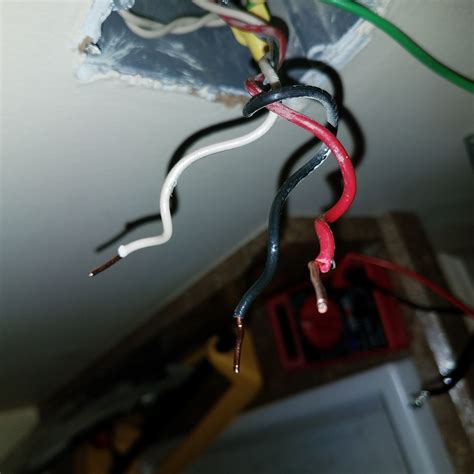

The Red White Black Wiring system is composed of three main wires, each with a distinct function:

Black Wire: This is the hot wire and carries the electrical current from the power source to the outlet or switch.
White Wire: This is the neutral wire and completes the circuit by providing a return path for the electrical current.
Red Wire: This is the secondary hot wire and is often used in switch legs or for connecting multiple switches in a circuit.

In addition to these three wires, you may also encounter a bare copper or green wire, which is the ground wire. The ground wire provides a safe path for electrical current to flow in case of a short circuit, helping to prevent electrical shocks.

Installing Red White Black Wiring

Installing Red White Black Wiring requires careful attention to detail to ensure safety and proper functionality. Here are the steps to follow:

Gathering the Necessary Tools and Materials

Before you begin, make sure you have the following tools and materials:

Wire strippers
Screwdrivers
Wire nuts
Electrical tape
Circuit tester
Wire cutters
Safety glasses
Red, white, black, and ground wires

Turning Off the Power

Safety is paramount when working with electrical wiring. Always turn off the power at the circuit breaker before beginning any work. Use a circuit tester to ensure that the power is off.

Stripping the Wires

Use wire strippers to remove about ½ inch of insulation from the ends of each wire. Be careful not to nick the wire itself, as this can cause shorts or other issues.

Connecting the Wires

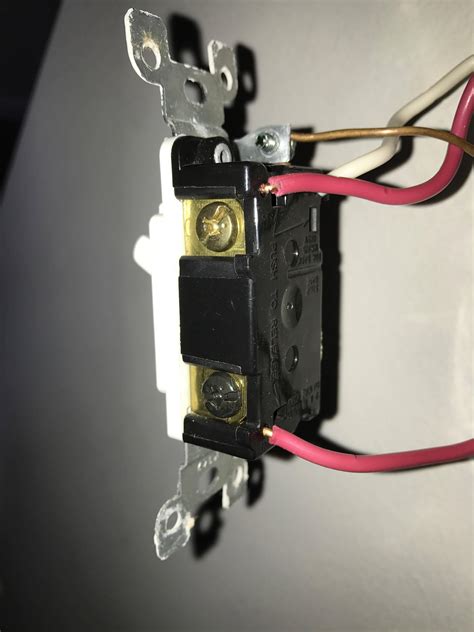

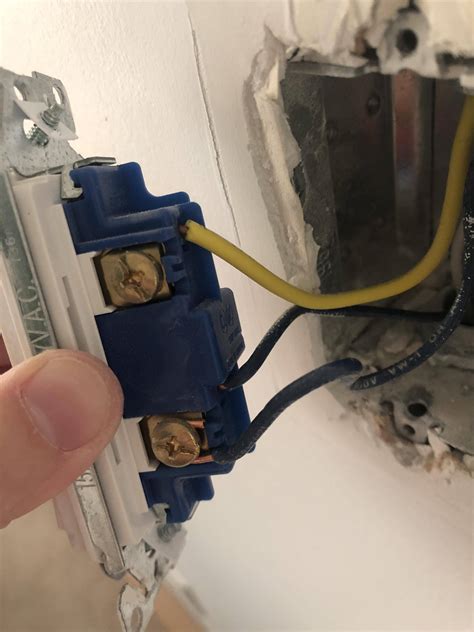

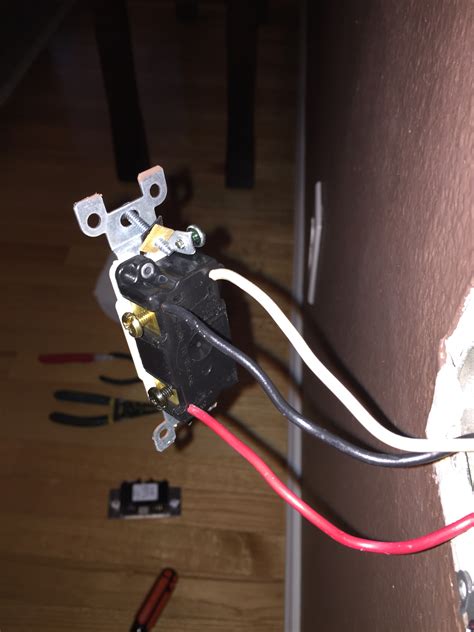

Connect the wires to the appropriate terminals on the outlet or switch. The black wire should be connected to the brass screw, the white wire to the silver screw, and the red wire to the other brass screw if available. If there is no separate terminal for the red wire, it can be connected to the same terminal as the black wire.

If you are using a ground wire, connect it to the green screw on the outlet or switch. If there is no green screw, you can connect the ground wire to the metal box using a ground pigtail.

Securing the Connections

Once the wires are connected, twist the exposed ends together and secure them with wire nuts. Make sure the connections are tight and secure to prevent any loose wires.

Testing the Circuit

After all the connections are made, turn the power back on and use a circuit tester to ensure that the outlet or switch is functioning properly. If everything is working correctly, you can proceed to the next step.

🔧 Note: Always double-check your connections before turning the power back on to avoid any potential hazards.

Maintaining Red White Black Wiring

Maintaining your Red White Black Wiring system is essential for ensuring its longevity and safety. Here are some tips for maintaining your wiring:

Regular Inspections: Periodically inspect your wiring for any signs of wear, damage, or corrosion. Look for frayed wires, loose connections, or any other issues that could compromise the safety of your electrical system.
Avoid Overloading: Be mindful of the electrical load on your circuits. Overloading can cause overheating and potentially start a fire. Distribute your electrical devices evenly across different circuits to avoid overloading.
Use Surge Protectors: Surge protectors can help safeguard your electrical devices from power surges, which can damage your wiring and appliances.
Keep Wires Organized: Ensure that your wires are neatly organized and not tangled or cramped. This will make it easier to identify and access specific wires when needed.

Troubleshooting Common Issues

Even with proper installation and maintenance, issues can still arise with Red White Black Wiring. Here are some common problems and how to troubleshoot them:

No Power to the Outlet or Switch

If there is no power to the outlet or switch, check the following:

Ensure that the circuit breaker is not tripped.
Verify that the wires are properly connected to the outlet or switch.
Check for any loose or damaged wires.
Use a circuit tester to confirm that power is reaching the outlet or switch.

Flickering Lights

Flickering lights can be caused by several issues, including:

Loose connections in the wiring.
Overloaded circuits.
Faulty light bulbs.
Issues with the switch or outlet.

To troubleshoot flickering lights, check the connections, ensure that the circuit is not overloaded, and replace any faulty light bulbs. If the problem persists, you may need to replace the switch or outlet.

Short Circuits

Short circuits can be dangerous and should be addressed immediately. If you suspect a short circuit, follow these steps:

Turn off the power at the circuit breaker.
Inspect the wiring for any signs of damage or exposed wires.
Check for any loose connections or frayed wires.
Replace any damaged wires or components.

If you are unsure about how to handle a short circuit, it is best to consult a professional electrician.

⚠️ Note: Always prioritize safety when dealing with electrical issues. If you are not comfortable performing the troubleshooting yourself, seek the help of a qualified electrician.

Safety Precautions

Working with electrical wiring can be hazardous if proper precautions are not taken. Here are some safety tips to keep in mind:

Turn Off the Power: Always turn off the power at the circuit breaker before working on any electrical wiring.
Use Proper Tools: Use insulated tools designed for electrical work to minimize the risk of electrical shock.
Wear Protective Gear: Wear safety glasses and other protective gear to protect yourself from potential hazards.
Avoid Water: Keep electrical components and wiring away from water to prevent short circuits and electrical shocks.
Follow Codes and Regulations: Ensure that your wiring meets local electrical codes and regulations to guarantee safety and compliance.

By following these safety precautions, you can minimize the risks associated with electrical work and ensure a safe working environment.

In addition to the safety precautions mentioned above, it is important to understand the color-coding of wires in the Red White Black Wiring system. The colors are standardized to help identify the function of each wire:

Wire Color	Function
Black	Hot wire (carries electrical current)
White	Neutral wire (completes the circuit)
Red	Secondary hot wire (used in switch legs or multiple switches)
Green or Bare Copper	Ground wire (provides a safe path for electrical current)

Understanding these color codes will help you correctly identify and connect the wires, ensuring the proper functioning of your electrical system.

In conclusion, the Red White Black Wiring system is a fundamental aspect of electrical wiring in residential and commercial settings. By understanding the components, proper installation techniques, maintenance tips, and safety precautions, you can ensure the safe and efficient operation of your electrical system. Regular inspections and prompt troubleshooting of any issues will help maintain the integrity of your wiring and prevent potential hazards. Always prioritize safety when working with electrical wiring, and do not hesitate to seek professional help if needed.
