Rare Earth Permanent Magnets (REPMs) are a critical component in modern technology, powering everything from electric vehicles to wind turbines and consumer electronics. These magnets are prized for their exceptional magnetic properties, which include high coercivity and remanence. This blog post delves into the world of Rare Earth Permanent Magnets, exploring their types, applications, manufacturing processes, and the challenges they face in the global market.
Understanding Rare Earth Permanent Magnets

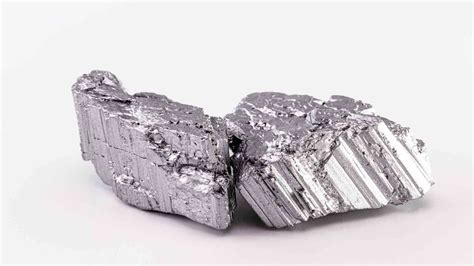

Rare Earth Permanent Magnets are a type of magnet made from alloys of rare earth elements. The most common types are Neodymium Iron Boron (NdFeB) and Samarium Cobalt (SmCo). These magnets are known for their strong magnetic fields and resistance to demagnetization, making them ideal for various high-performance applications.
Types of Rare Earth Permanent Magnets
There are two primary types of Rare Earth Permanent Magnets: Neodymium Iron Boron (NdFeB) and Samarium Cobalt (SmCo). Each type has its unique properties and applications.

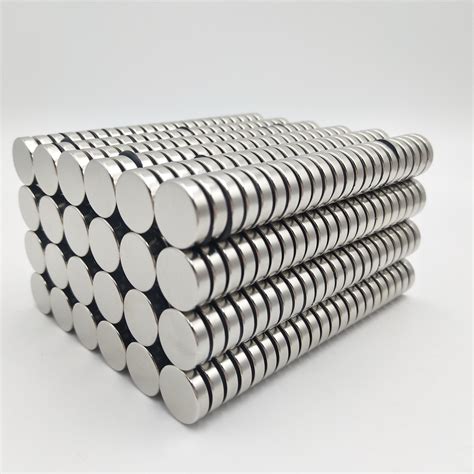

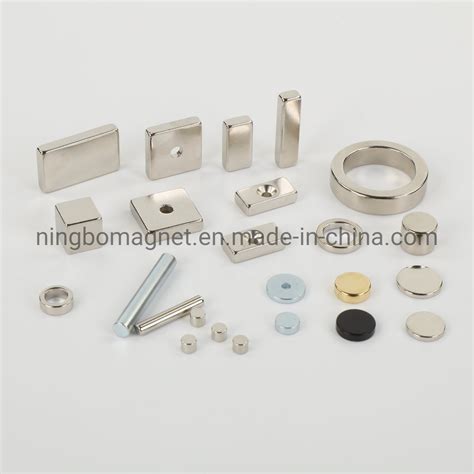

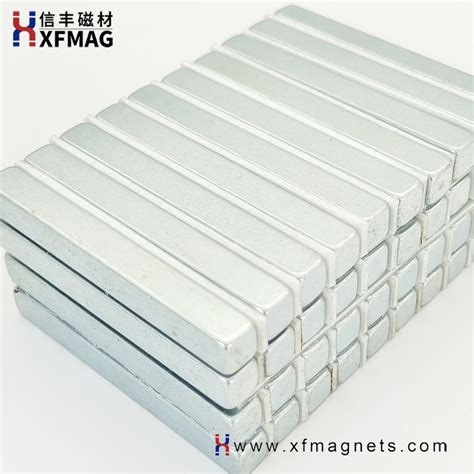

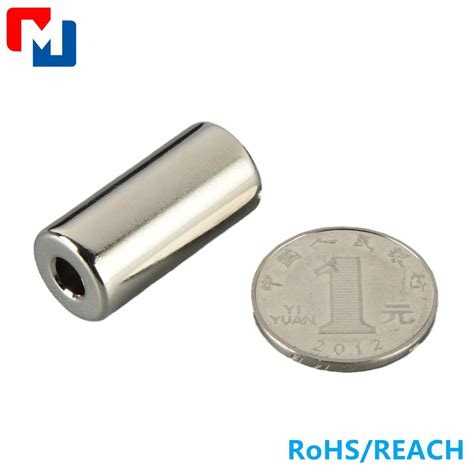

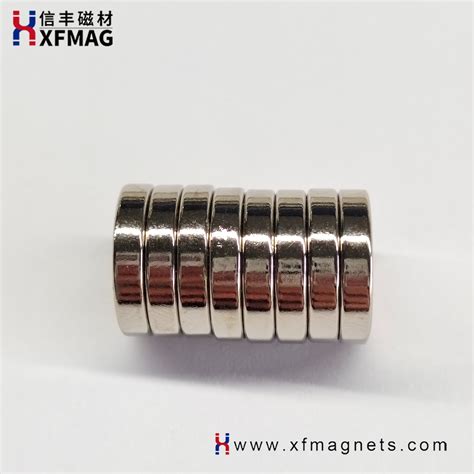

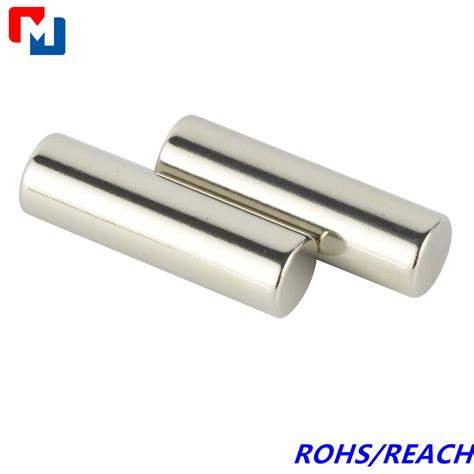

Neodymium Iron Boron (NdFeB) Magnets
NdFeB magnets are the strongest type of permanent magnet available, with a high magnetic energy product. They are widely used in applications where strong magnetic fields are required, such as in electric motors, generators, and hard disk drives. NdFeB magnets are also relatively inexpensive compared to other types of Rare Earth Permanent Magnets.

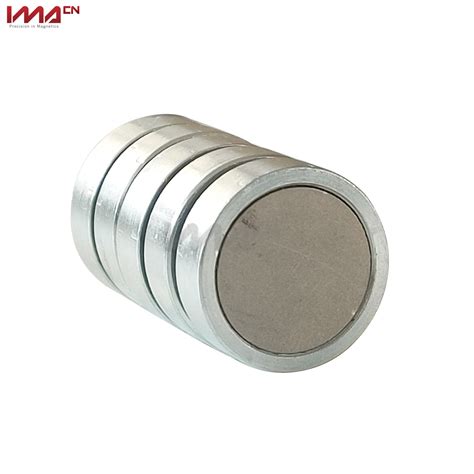

Samarium Cobalt (SmCo) Magnets
SmCo magnets are known for their excellent temperature stability and resistance to corrosion. They are often used in high-temperature applications, such as in aerospace and military equipment. SmCo magnets are more expensive than NdFeB magnets but offer superior performance in extreme conditions.
Applications of Rare Earth Permanent Magnets
Rare Earth Permanent Magnets have a wide range of applications across various industries. Some of the most common applications include:
- Electric Vehicles: REPMs are used in the electric motors of electric vehicles, providing the necessary torque and efficiency.
- Wind Turbines: These magnets are essential in the generators of wind turbines, converting mechanical energy into electrical energy.
- Consumer Electronics: REPMs are used in various consumer electronics, such as hard disk drives, speakers, and headphones.
- Aerospace and Defense: SmCo magnets are used in high-temperature applications, such as in aircraft and military equipment.
- Medical Devices: REPMs are used in medical imaging equipment, such as MRI machines, and in various other medical devices.
Manufacturing Process of Rare Earth Permanent Magnets
The manufacturing process of Rare Earth Permanent Magnets involves several steps, including raw material preparation, alloying, powder production, compaction, sintering, and finishing. Each step is crucial in ensuring the final product meets the required magnetic properties.
Raw Material Preparation
The process begins with the preparation of raw materials, which include rare earth elements, iron, boron, and cobalt. These materials are carefully selected and purified to ensure high-quality magnets.
Alloying
The raw materials are then melted and mixed to form an alloy. This step is critical as it determines the magnetic properties of the final product. The alloy is typically produced in a vacuum or inert gas atmosphere to prevent oxidation.
Powder Production
The alloy is then crushed into a fine powder. This powder is used to create the magnet's shape and size. The powder production process involves milling and grinding the alloy to achieve the desired particle size.
Compaction
The powder is compacted under high pressure to form a green compact. This step is crucial as it determines the magnet's density and magnetic properties. The green compact is then sintered to form a solid magnet.
Sintering
Sintering involves heating the green compact to a high temperature in a controlled atmosphere. This process causes the powder particles to bond together, forming a solid magnet with the desired magnetic properties.
Finishing
The final step involves finishing the magnet, which includes machining, coating, and magnetizing. Machining is used to achieve the desired shape and size, while coating protects the magnet from corrosion. Magnetizing aligns the magnetic domains to create a strong magnetic field.
🔍 Note: The manufacturing process of Rare Earth Permanent Magnets requires precise control of temperature, pressure, and atmosphere to ensure high-quality magnets.
Challenges in the Rare Earth Permanent Magnet Market
The Rare Earth Permanent Magnet market faces several challenges, including supply chain issues, environmental concerns, and geopolitical risks. These challenges can impact the availability and cost of REPMs, affecting various industries that rely on these magnets.
Supply Chain Issues
Rare Earth Permanent Magnets are primarily produced in China, which controls a significant portion of the global supply. This concentration of production can lead to supply chain disruptions and price volatility. Additionally, the extraction and processing of rare earth elements can be environmentally damaging, raising concerns about sustainability.
Environmental Concerns
The mining and processing of rare earth elements can have significant environmental impacts, including soil and water pollution, and habitat destruction. These environmental concerns have led to calls for more sustainable mining practices and the development of alternative materials.
Geopolitical Risks
The geopolitical risks associated with the Rare Earth Permanent Magnet market include trade disputes, sanctions, and political instability. These risks can disrupt the supply chain and impact the availability and cost of REPMs. For example, trade disputes between the United States and China have led to tariffs on rare earth elements, affecting the global market.
Future of Rare Earth Permanent Magnets
The future of Rare Earth Permanent Magnets is promising, with ongoing research and development aimed at improving their performance and sustainability. Some of the key areas of focus include:
- Alternative Materials: Researchers are exploring alternative materials that can replace or reduce the use of rare earth elements in magnets. These materials include iron-nitrogen compounds and manganese-based alloys.
- Recycling: Recycling Rare Earth Permanent Magnets can help reduce the environmental impact of mining and processing. Researchers are developing new recycling technologies to recover rare earth elements from end-of-life products.
- Sustainable Mining: Sustainable mining practices can help mitigate the environmental impacts of rare earth element extraction. This includes using cleaner technologies and implementing stricter environmental regulations.

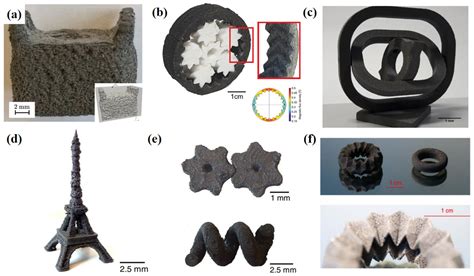

In addition to these areas, the development of new manufacturing technologies and processes can help improve the performance and cost-effectiveness of Rare Earth Permanent Magnets. For example, additive manufacturing techniques, such as 3D printing, can be used to create complex magnet shapes and sizes.
Moreover, advancements in magnet design and optimization can enhance the magnetic properties of REPMs. This includes the use of advanced simulation tools and machine learning algorithms to optimize magnet performance.
Overall, the future of Rare Earth Permanent Magnets is bright, with ongoing innovations and developments aimed at addressing the challenges and opportunities in the market.
Rare Earth Permanent Magnets play a crucial role in modern technology, powering a wide range of applications from electric vehicles to consumer electronics. Understanding the types, applications, manufacturing processes, and challenges of REPMs is essential for appreciating their significance and potential. As research and development continue to advance, the future of Rare Earth Permanent Magnets looks promising, with innovations aimed at improving performance, sustainability, and cost-effectiveness. The ongoing efforts to address supply chain issues, environmental concerns, and geopolitical risks will be key in ensuring the continued availability and affordability of these vital components in the global market.
