Rammed Earth Wall

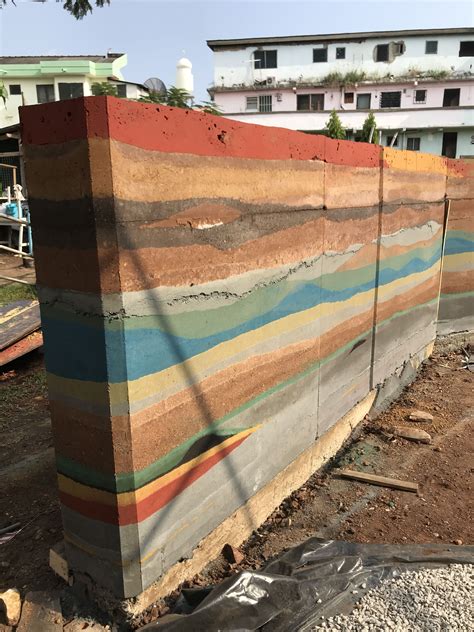

Rammed earth construction is an ancient building technique that has seen a resurgence in modern sustainable architecture. This method involves compressing a mixture of soil, gravel, and stabilizers into a solid mass to create walls. One of the most notable features of this technique is the rammed earth wall, which offers a unique blend of aesthetic appeal, durability, and environmental friendliness.

Understanding Rammed Earth Walls

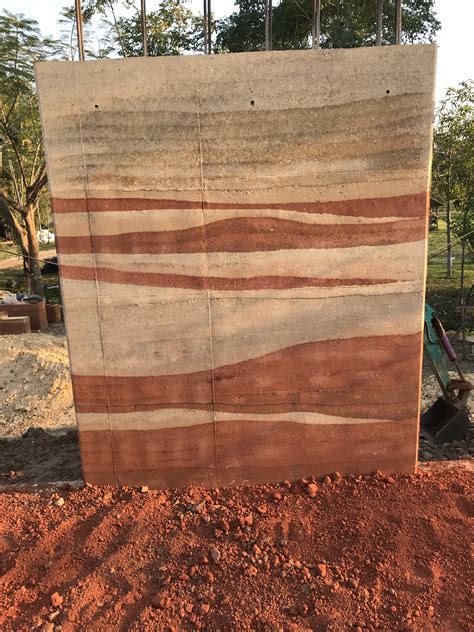

A rammed earth wall is constructed by compacting moist subsoil into a formwork, layer by layer, until the desired height is achieved. The process involves several key steps, including site preparation, material selection, formwork construction, and compaction. Each step is crucial in ensuring the structural integrity and longevity of the wall.

Benefits of Rammed Earth Walls

Rammed earth walls offer numerous benefits that make them an attractive option for modern construction. Some of the key advantages include:

• Sustainability: Rammed earth construction uses locally sourced materials, reducing the carbon footprint associated with transportation. Additionally, the process itself is energy-efficient, making it an eco-friendly choice.
• Durability: Properly constructed rammed earth walls can last for centuries. Historical structures built using this technique, such as the Great Wall of China, stand as testament to its longevity.

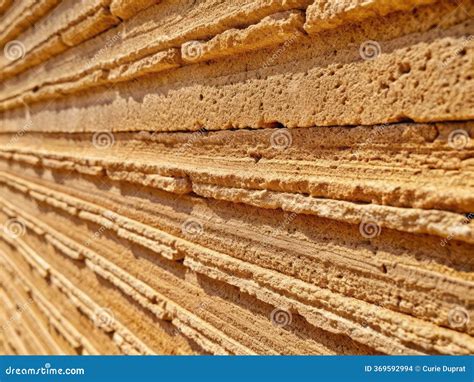

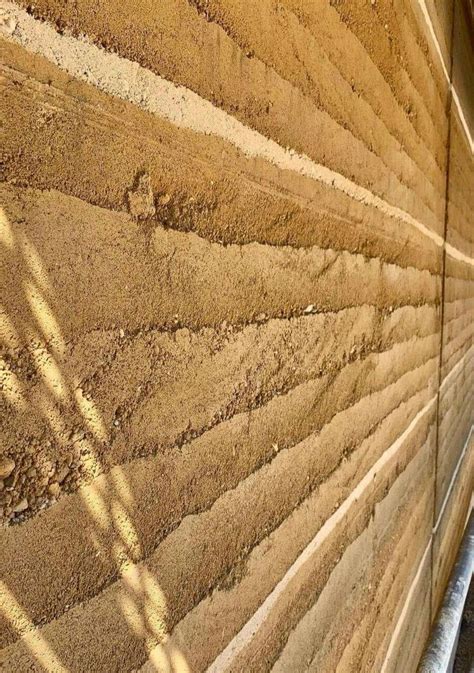

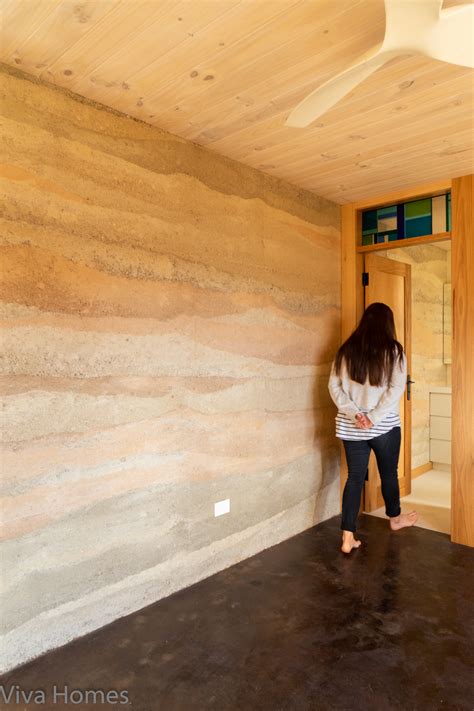

• Aesthetic Appeal: The natural, earthy texture of rammed earth walls adds a unique charm to any building. The walls can be left in their natural state or finished with various coatings to enhance their appearance.
• Thermal Mass: Rammed earth walls have excellent thermal mass properties, which means they can absorb and release heat slowly. This helps in maintaining a comfortable indoor temperature, reducing the need for heating and cooling systems.
• Sound Insulation: The dense nature of rammed earth walls provides excellent sound insulation, making them ideal for creating quiet, peaceful living spaces.

Materials Used in Rammed Earth Construction

The primary material used in rammed earth construction is soil. However, not all soils are suitable for this purpose. The ideal soil for rammed earth walls should have a balanced mix of clay, silt, and sand. Additionally, stabilizers such as cement or lime may be added to enhance the strength and durability of the walls.

Here is a breakdown of the typical materials used:

📝 Note: The exact proportions of these materials can vary depending on the specific soil conditions and the desired properties of the wall.

Construction Process of Rammed Earth Walls

The construction of a rammed earth wall involves several steps, each requiring careful attention to detail. Here is a step-by-step guide to the process:

Site Preparation

The first step in constructing a rammed earth wall is site preparation. This involves clearing the site of any debris and ensuring that the ground is level. The soil should be tested to determine its suitability for rammed earth construction. If necessary, additional materials such as gravel or stabilizers may be added to achieve the desired mix.

Formwork Construction

Formwork is essential for shaping the rammed earth wall. It is typically made of plywood or metal and is designed to withstand the pressure exerted during compaction. The formwork should be securely anchored to the ground to prevent movement during the compaction process.

Material Mixing

The soil, gravel, and stabilizers are mixed together with water to create a homogeneous mixture. The amount of water added is crucial, as too much or too little can affect the compaction process. The mixture should be moist but not wet, allowing it to be easily compacted into the formwork.

Compaction

Compaction is the process of compressing the soil mixture into the formwork. This is typically done using a pneumatic rammer or a manual tamper. The mixture is added to the formwork in layers, usually about 15-20 cm thick, and each layer is compacted until it reaches the desired density. The process is repeated until the formwork is filled to the desired height.

Curing

Once the wall has been compacted, it needs to cure to gain strength. The curing process involves keeping the wall moist for a period of time, usually several weeks. This allows the stabilizers to react with the soil, enhancing the wall's durability. During this time, the formwork should remain in place to support the wall.

Finishing

After the curing process is complete, the formwork can be removed, and the wall can be finished. The surface of the wall can be left in its natural state or treated with various coatings to enhance its appearance and durability. Common finishes include lime wash, earth plaster, or natural oils.

📝 Note: Proper curing is essential for the long-term durability of the wall. Inadequate curing can lead to cracks and reduced strength.

Design Considerations for Rammed Earth Walls

When designing a building with rammed earth walls, several factors need to be considered to ensure the walls' structural integrity and aesthetic appeal. These include:

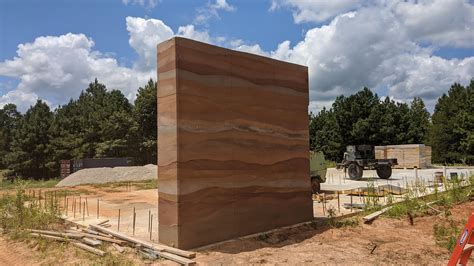

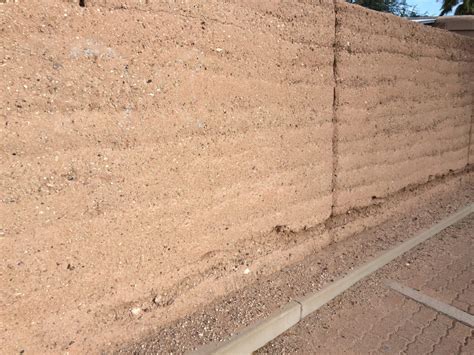

• Wall Thickness: The thickness of the wall depends on the height and the load it needs to bear. Typically, rammed earth walls are at least 30 cm thick, but thicker walls may be required for taller structures.
• Height: The height of the wall is limited by the stability of the soil mixture and the formwork. Walls taller than 3 meters may require additional support or reinforcement.
• Reinforcement: In some cases, reinforcement such as rebar or geogrids may be added to the wall to enhance its strength and stability. This is particularly important for taller walls or those subject to significant loads.
• Drainage: Proper drainage is essential to prevent water from accumulating behind the wall, which can lead to erosion and structural damage. This can be achieved through the use of weep holes, drainage layers, or waterproofing membranes.
