Building a sturdy and reliable roof is a critical aspect of any construction project. One of the key elements in this process is determining the appropriate rafter span. A Rafter Span Guide is an essential tool for builders and DIY enthusiasts alike, providing the necessary information to ensure that rafters are correctly sized and spaced. This guide will walk you through the fundamentals of rafter spans, the factors that influence them, and how to use a rafter span guide effectively.
Understanding Rafter Spans

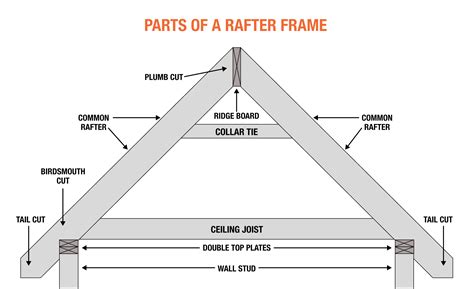

Rafters are the diagonal beams that support the roof structure. The span of a rafter refers to the horizontal distance it covers from the ridge (the peak of the roof) to the wall plate (the top of the wall). Properly calculating the rafter span is crucial for ensuring the roof’s stability and longevity. A rafter that is too short may not provide adequate support, while one that is too long can lead to sagging or even collapse.
Factors Affecting Rafter Spans
Several factors influence the appropriate rafter span for a given roof. Understanding these factors is essential for accurate calculations and safe construction.
Roof Pitch
The roof pitch, or the angle of the roof, significantly affects the rafter span. A steeper pitch requires longer rafters to maintain the same span, while a flatter pitch can use shorter rafters. The pitch is typically expressed as a ratio, such as 4:12, which means the roof rises 4 inches for every 12 inches of horizontal run.
Roof Load
The load that the roof must bear, including the weight of the roofing materials, snow, and wind, also impacts the rafter span. Heavier loads require stronger and more closely spaced rafters to distribute the weight evenly and prevent structural failure.
Rafter Spacing
Rafter spacing refers to the distance between individual rafters. Common spacing options include 12 inches, 16 inches, and 24 inches on center. Closer spacing provides more support but increases material costs and labor. Wider spacing reduces costs but may require larger rafters to maintain structural integrity.
Rafter Size
The size of the rafters, typically expressed in inches (e.g., 2x6, 2x8, 2x10), affects their load-bearing capacity. Larger rafters can span greater distances and support heavier loads, making them suitable for larger roofs or areas with heavy snowfall.
Using a Rafter Span Guide
A Rafter Span Guide is a valuable resource that provides pre-calculated spans for various rafter sizes, pitches, and loads. These guides are often available in print or digital formats and can be found in construction manuals, online resources, or through building supply stores.
Reading a Rafter Span Guide
To use a rafter span guide effectively, follow these steps:
- Determine the roof pitch and load requirements for your project.
- Identify the desired rafter spacing (e.g., 16 inches on center).
- Locate the appropriate section of the guide that matches your roof pitch and load.
- Find the rafter size that corresponds to your desired span and spacing.
For example, if you have a roof with a 6:12 pitch, a moderate snow load, and you want to use 2x8 rafters spaced 16 inches on center, you would look up these specifications in the guide to find the maximum allowable span.
📝 Note: Always double-check your calculations and consult with a structural engineer if you are unsure about any aspect of your roof design.
Common Rafter Span Tables
Here is an example of a rafter span table for 2x8 rafters spaced 16 inches on center, with varying roof pitches and loads:
| Roof Pitch | Ground Snow Load (psf) | Maximum Span (feet) |
|---|---|---|
| 3:12 | 20 | 16 |
| 4:12 | 20 | 15 |
| 5:12 | 20 | 14 |
| 6:12 | 20 | 13 |
| 7:12 | 20 | 12 |
| 8:12 | 20 | 11 |
This table provides a quick reference for determining the maximum span for 2x8 rafters under specific conditions. Adjustments may be necessary based on local building codes and specific project requirements.
Calculating Rafter Spans Manually
While a Rafter Span Guide is a convenient tool, it is also possible to calculate rafter spans manually using engineering formulas and tables. This method requires a good understanding of structural engineering principles and may be necessary for custom or non-standard roof designs.
Steps to Calculate Rafter Spans Manually
To calculate rafter spans manually, follow these steps:
- Determine the roof pitch and load requirements.
- Select the desired rafter size and spacing.
- Use engineering formulas to calculate the maximum allowable span based on the selected rafter size, spacing, and load.
- Verify your calculations with structural engineering tables or software.
For example, to calculate the span of a 2x8 rafter with a 6:12 pitch and a moderate snow load, you would use the following steps:
- Determine the horizontal distance (run) of the rafter based on the pitch.
- Calculate the bending moment and shear forces acting on the rafter.
- Use the allowable stress values for the rafter material to determine the maximum span.
📝 Note: Manual calculations can be complex and time-consuming. It is recommended to use a Rafter Span Guide or consult with a structural engineer for most projects.
Importance of Proper Rafter Spans
Ensuring proper rafter spans is crucial for the overall stability and longevity of a roof. Incorrectly sized rafters can lead to a variety of issues, including:
- Sagging or bowing of the roof.
- Structural failure under heavy loads.
- Increased risk of leaks and water damage.
- Reduced energy efficiency due to improper insulation.
By using a Rafter Span Guide and following best practices for roof construction, you can avoid these issues and ensure a durable, reliable roof.
Proper rafter spans are essential for maintaining the structural integrity of a roof. By understanding the factors that influence rafter spans and using a Rafter Span Guide effectively, builders and DIY enthusiasts can ensure that their roofs are safe, stable, and long-lasting. Whether you are constructing a new roof or repairing an existing one, taking the time to calculate and verify rafter spans is a critical step in the process.
In summary, a Rafter Span Guide is an invaluable tool for anyone involved in roof construction. By providing pre-calculated spans for various rafter sizes, pitches, and loads, these guides help ensure that roofs are built to last. Whether you are a professional builder or a DIY enthusiast, understanding and using a rafter span guide is essential for successful roof construction.
