When it comes to HVAC (Heating, Ventilation, and Air Conditioning) systems, having the right tools is crucial for efficient and accurate diagnostics and repairs. One essential tool for any HVAC technician is the R410a Manifold Gauge Set. This tool is specifically designed to handle the refrigerant R410a, which is commonly used in modern air conditioning systems due to its environmental benefits and efficiency. Understanding the importance, features, and proper use of an R410a Manifold Gauge Set can significantly enhance your HVAC maintenance and repair capabilities.
Understanding R410a Refrigerant
Before diving into the specifics of the R410a Manifold Gauge Set, it's important to understand what R410a refrigerant is and why it is widely used. R410a is a hydrofluorocarbon (HFC) refrigerant that is becoming increasingly popular as a replacement for older refrigerants like R22. R410a offers several advantages, including:
- Higher Efficiency: R410a operates at higher pressures, which allows for more efficient heat transfer and better cooling performance.
- Environmentally Friendly: Unlike R22, R410a does not deplete the ozone layer, making it a more environmentally friendly option.
- Compatibility: Many modern air conditioning systems are designed to work with R410a, ensuring compatibility and reliability.

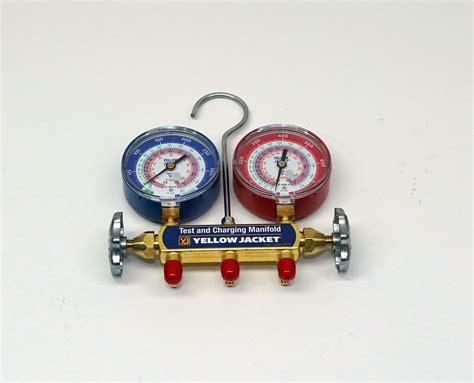

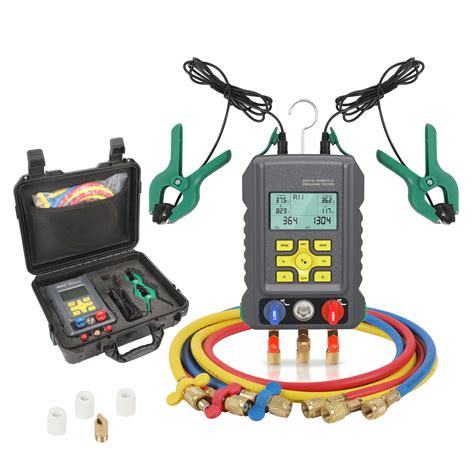

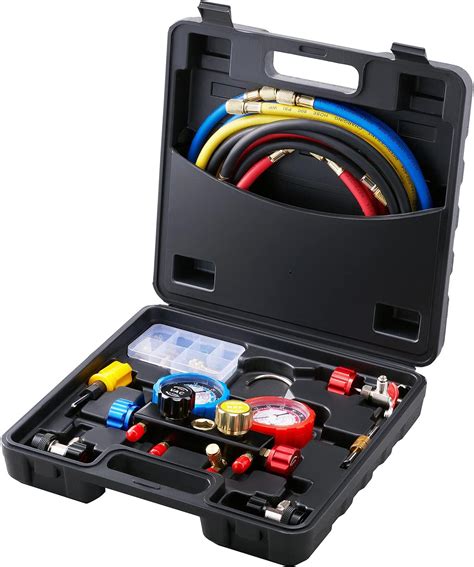

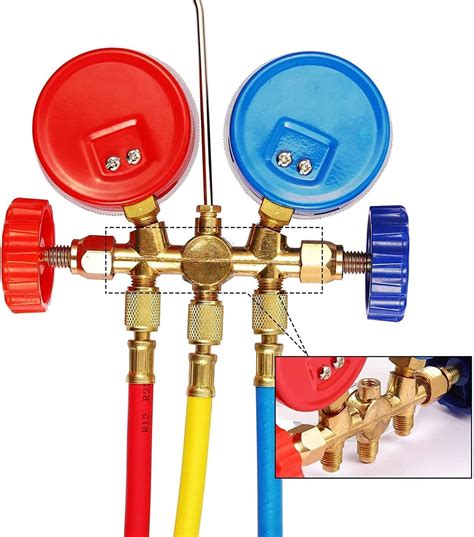

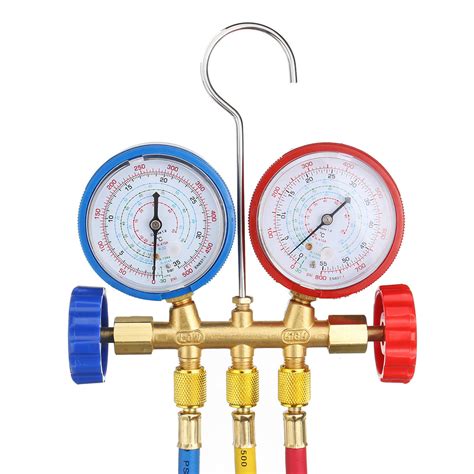

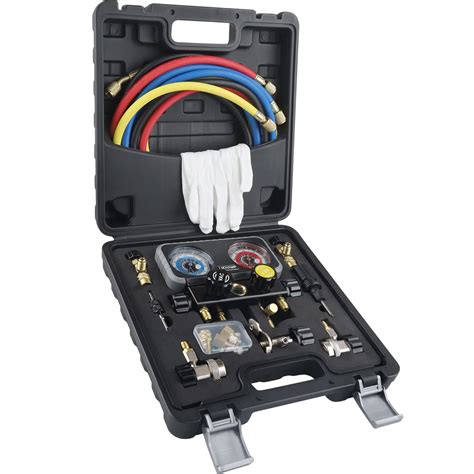

What is an R410a Manifold Gauge Set?

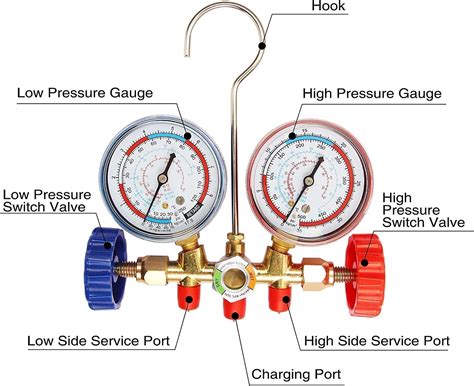

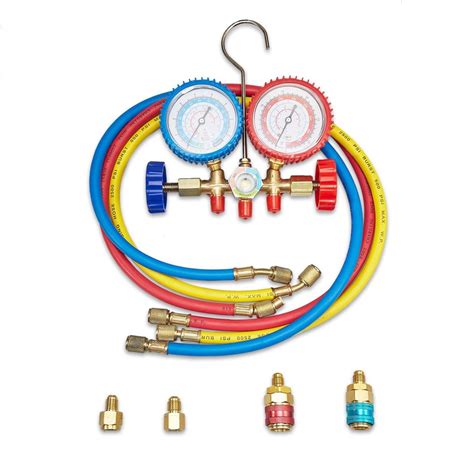

An R410a Manifold Gauge Set is a specialized tool used to measure and manage the refrigerant levels in HVAC systems that use R410a. This set typically includes:
- High-Pressure Gauge: Measures the pressure on the high side of the system.
- Low-Pressure Gauge: Measures the pressure on the low side of the system.
- Manifold Valves: Control the flow of refrigerant into and out of the system.
- Hoses: Connect the gauge set to the HVAC system.
- Vacuum Pump: Used to evacuate the system of air and moisture before charging it with refrigerant.
These components work together to provide accurate readings and control over the refrigerant levels, ensuring the system operates efficiently and safely.
Key Features of an R410a Manifold Gauge Set
When selecting an R410a Manifold Gauge Set, it's important to consider several key features that enhance its functionality and reliability:
- Durability: Look for a gauge set made from high-quality materials that can withstand the high pressures associated with R410a.
- Accuracy: Precision in pressure readings is crucial for diagnosing and repairing HVAC systems. Ensure the gauges are calibrated for accurate measurements.
- Ease of Use: The gauge set should be user-friendly, with clear markings and easy-to-use valves and hoses.
- Compatibility: Ensure the gauge set is compatible with R410a and other common refrigerants you may encounter.
- Safety Features: Look for safety features such as overpressure protection and leak detection to prevent accidents and ensure safe operation.
How to Use an R410a Manifold Gauge Set
Using an R410a Manifold Gauge Set involves several steps. Here is a detailed guide to help you get started:
Preparation
Before using the gauge set, ensure you have the following:
- Safety Gear: Wear appropriate safety gear, including gloves and safety glasses.
- Refrigerant: Have the necessary amount of R410a refrigerant on hand.
- Tools: Gather any additional tools you may need, such as wrenches and hose clamps.
Connecting the Gauge Set
Follow these steps to connect the R410a Manifold Gauge Set to the HVAC system:
- Turn Off the System: Ensure the HVAC system is turned off and allowed to cool down.
- Locate the Service Ports: Find the high-side and low-side service ports on the HVAC system.
- Attach the Hoses: Connect the high-pressure hose to the high-side service port and the low-pressure hose to the low-side service port.
- Open the Valves: Slowly open the manifold valves to allow refrigerant to flow into the gauges.
Reading the Gauges
Once the gauge set is connected, you can read the pressure on both the high and low sides of the system. The readings will help you diagnose any issues with the refrigerant levels or system performance. Here is a basic guide to interpreting the readings:
| High-Side Pressure | Low-Side Pressure | Possible Issue |
|---|---|---|
| Too High | Normal | Restricted airflow, dirty condenser, or overcharged system |
| Normal | Too Low | Low refrigerant charge, restricted airflow, or faulty metering device |
| Too Low | Too High | Faulty compressor, restricted airflow, or undercharged system |
🔍 Note: Always refer to the manufacturer's guidelines for specific pressure readings and troubleshooting steps.
Charging the System
If the system needs to be charged with refrigerant, follow these steps:
- Prepare the Refrigerant: Ensure the refrigerant cylinder is upright and the valve is open.
- Connect the Hose: Attach the charging hose to the refrigerant cylinder and the manifold valve.
- Charge the System: Slowly open the manifold valve to allow refrigerant to flow into the system. Monitor the pressure gauges to ensure the correct amount of refrigerant is added.
- Check for Leaks: After charging, check for any leaks using a leak detector or soapy water solution.
🔍 Note: Always follow safety protocols when handling refrigerant to prevent injuries and environmental damage.
Evacuating the System
Before charging the system with new refrigerant, it's important to evacuate any existing air and moisture. Here's how to do it:
- Connect the Vacuum Pump: Attach the vacuum pump to the manifold valve.
- Evacuate the System: Turn on the vacuum pump and allow it to run for at least 30 minutes to remove all air and moisture.
- Check for Leaks: After evacuating, check for any leaks using a leak detector or soapy water solution.
🔍 Note: Ensure the vacuum pump is in good working condition and properly maintained for accurate evacuation.
Maintaining Your R410a Manifold Gauge Set
Proper maintenance of your R410a Manifold Gauge Set is essential for ensuring its longevity and accuracy. Here are some tips for maintaining your gauge set:
- Regular Calibration: Have the gauges calibrated regularly to ensure accurate readings.
- Inspect Hoses: Check the hoses for any signs of wear or damage and replace them if necessary.
- Clean Valves: Keep the manifold valves clean and free of debris to ensure smooth operation.
- Store Properly: Store the gauge set in a dry, cool place away from direct sunlight and extreme temperatures.
By following these maintenance tips, you can extend the life of your R410a Manifold Gauge Set and ensure it continues to provide accurate and reliable readings.
Common Issues and Troubleshooting
Even with proper use and maintenance, you may encounter issues with your R410a Manifold Gauge Set. Here are some common problems and troubleshooting tips:
- Inaccurate Readings: If the gauges are not providing accurate readings, they may need to be recalibrated. Check the calibration certificate and follow the manufacturer's instructions for recalibration.
- Leaking Hoses: If you notice refrigerant leaking from the hoses, inspect them for cracks or damage. Replace any damaged hoses immediately.
- Stuck Valves: If the manifold valves are stuck or difficult to operate, clean them thoroughly and lubricate them if necessary.
- Vacuum Pump Issues: If the vacuum pump is not evacuating the system properly, check for clogs or damage. Ensure the pump is in good working condition and properly maintained.
By addressing these common issues promptly, you can ensure your R410a Manifold Gauge Set continues to function effectively.
In conclusion, the R410a Manifold Gauge Set is an indispensable tool for any HVAC technician working with R410a refrigerant. Understanding its features, proper use, and maintenance can significantly enhance your ability to diagnose and repair HVAC systems efficiently and accurately. By following the guidelines and tips outlined in this post, you can ensure your R410a Manifold Gauge Set remains a reliable and effective tool in your HVAC toolkit.
