Electrical wiring is a critical aspect of any building project, whether it's a residential, commercial, or industrial setting. One of the most essential components in electrical wiring is the PVC electrical conduit. This versatile and durable material plays a crucial role in protecting and organizing electrical wires, ensuring safety and efficiency. In this post, we will delve into the various aspects of PVC electrical conduit, including its types, benefits, installation processes, and maintenance tips.
Understanding PVC Electrical Conduit

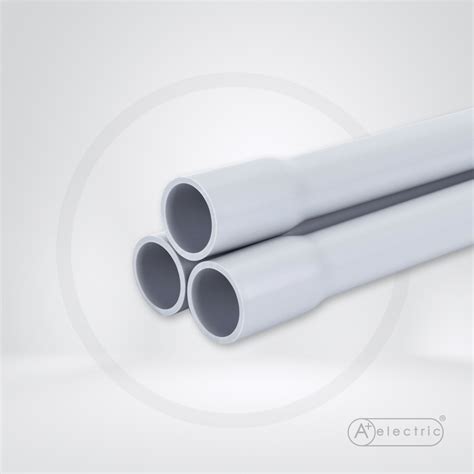

PVC (Polyvinyl Chloride) electrical conduit is a type of piping used to protect and route electrical wiring. It is made from a thermoplastic polymer, which makes it lightweight, flexible, and resistant to corrosion. PVC conduit is widely used in both indoor and outdoor applications due to its durability and cost-effectiveness.
Types of PVC Electrical Conduit
PVC electrical conduit comes in various types, each designed for specific applications. The most common types include:

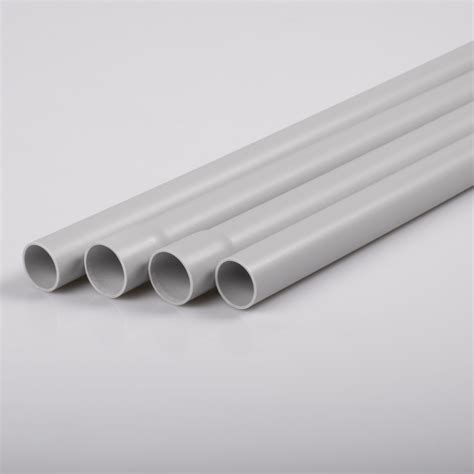

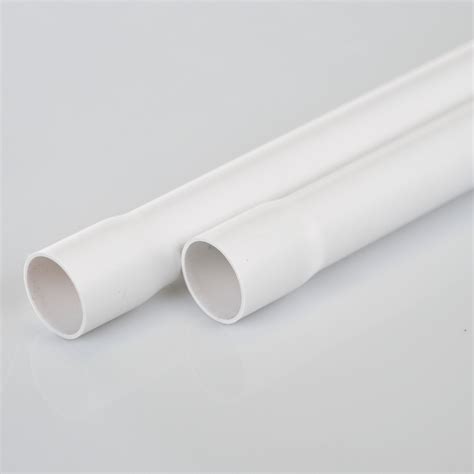

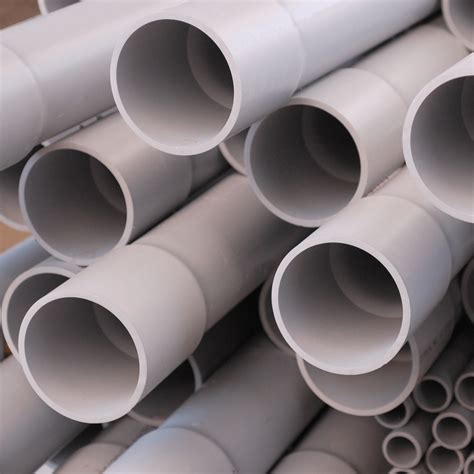

- Rigid PVC Conduit: This type is known for its rigidity and strength. It is often used in outdoor applications where durability is crucial.
- Flexible PVC Conduit: This type is more flexible and is used in applications where the conduit needs to bend around corners or obstacles.
- Electrical Metallic Tubing (EMT): Although not made of PVC, EMT is often used alongside PVC conduit for its strength and flexibility.
Benefits of Using PVC Electrical Conduit
PVC electrical conduit offers several advantages that make it a popular choice for electrical wiring:
- Durability: PVC is resistant to corrosion, chemicals, and impact, making it ideal for both indoor and outdoor use.
- Cost-Effective: PVC conduit is generally less expensive than other types of conduit, such as metal conduit.
- Easy to Install: PVC conduit is lightweight and easy to cut and install, reducing labor costs and time.
- Versatile: It can be used in a variety of applications, from residential to industrial settings.
- Safety: PVC conduit provides excellent protection against electrical hazards, reducing the risk of short circuits and fires.
Installation of PVC Electrical Conduit
Installing PVC electrical conduit involves several steps. Here is a detailed guide to help you through the process:
Materials Needed
- PVC electrical conduit
- PVC couplings and fittings
- PVC cement
- Conduit bender (for flexible conduit)
- Hacksaw or conduit cutter
- Fish tape
- Electrical wires
Steps to Install PVC Electrical Conduit
1. Plan the Layout: Determine the route for the conduit based on the electrical plan. Ensure that the conduit runs are straight and avoid sharp bends.
2. Measure and Cut the Conduit: Measure the required length of the conduit and cut it using a hacksaw or conduit cutter. Ensure the cuts are clean and straight.
3. Install Fittings: Attach the necessary fittings, such as couplings, elbows, and tees, to the conduit using PVC cement. Allow the cement to dry according to the manufacturer's instructions.
4. Run the Conduit: Install the conduit along the planned route, securing it to the walls or ceiling using appropriate fasteners. Ensure the conduit is level and properly supported.
5. Pull the Wires: Use fish tape to pull the electrical wires through the conduit. Ensure the wires are properly sized for the conduit and the electrical load.
6. Connect the Wires: Connect the wires to the electrical devices or outlets according to the electrical plan. Ensure all connections are secure and properly insulated.
7. Test the Circuit: Once the installation is complete, test the circuit to ensure it is functioning correctly. Use a multimeter to check for continuity and proper voltage.
🔧 Note: Always follow local electrical codes and regulations when installing PVC electrical conduit. Ensure that all connections are secure and properly insulated to prevent electrical hazards.
Maintenance Tips for PVC Electrical Conduit
Maintaining PVC electrical conduit is essential to ensure its longevity and safety. Here are some tips to keep your PVC conduit in good condition:
- Regular Inspections: Inspect the conduit regularly for any signs of damage, such as cracks, corrosion, or loose fittings. Address any issues promptly to prevent further damage.
- Cleaning: Keep the conduit clean and free of debris. Use a soft brush or cloth to remove any dirt or dust that may accumulate.
- Protect from UV Exposure: If the conduit is exposed to sunlight, consider using UV-resistant PVC conduit to prevent degradation.
- Avoid Mechanical Damage: Protect the conduit from mechanical damage by avoiding sharp objects and heavy impacts.
- Proper Grounding: Ensure that the conduit is properly grounded to prevent electrical hazards. Use grounding clamps and wires as needed.
Common Applications of PVC Electrical Conduit
PVC electrical conduit is used in a wide range of applications, from residential to industrial settings. Some common applications include:
- Residential Wiring: PVC conduit is often used in residential buildings for wiring electrical outlets, switches, and lighting fixtures.
- Commercial Buildings: In commercial settings, PVC conduit is used for wiring office spaces, retail stores, and other commercial facilities.
- Industrial Facilities: PVC conduit is used in industrial settings for wiring machinery, control panels, and other electrical equipment.
- Outdoor Wiring: PVC conduit is ideal for outdoor applications due to its resistance to corrosion and weathering.
- Underground Wiring: PVC conduit is often used for underground wiring due to its durability and resistance to environmental factors.
Comparing PVC Electrical Conduit with Other Types
While PVC electrical conduit is a popular choice, it is not the only option available. Here is a comparison of PVC conduit with other types of conduit:
| Type of Conduit | Material | Advantages | Disadvantages |
|---|---|---|---|
| PVC Conduit | Polyvinyl Chloride | Durable, cost-effective, easy to install, versatile | Not suitable for high-temperature applications |
| Metal Conduit | Steel or Aluminum | Strong, durable, provides good grounding | Heavy, more expensive, susceptible to corrosion |
| Flexible Metal Conduit | Steel | Flexible, easy to install, provides good grounding | More expensive, susceptible to corrosion |
| Liquidtight Flexible Conduit | PVC with metal spiral | Flexible, waterproof, easy to install | More expensive, not as durable as rigid conduit |
Safety Considerations for PVC Electrical Conduit
When working with PVC electrical conduit, it is essential to follow safety guidelines to prevent accidents and ensure the integrity of the electrical system. Here are some key safety considerations:
- Proper Ventilation: Ensure proper ventilation when using PVC cement, as the fumes can be harmful.
- Personal Protective Equipment (PPE): Wear appropriate PPE, including gloves, safety glasses, and a respirator, when handling PVC conduit and cement.
- Avoid Overloading: Do not overload the conduit with too many wires, as this can cause overheating and electrical hazards.
- Secure Connections: Ensure all connections are secure and properly insulated to prevent electrical hazards.
- Follow Electrical Codes: Always follow local electrical codes and regulations when installing PVC electrical conduit.
🔧 Note: Always turn off the power supply before working on electrical wiring to prevent electrical shocks and accidents.
PVC electrical conduit is a versatile and durable solution for protecting and organizing electrical wiring. Its resistance to corrosion, cost-effectiveness, and ease of installation make it a popular choice for various applications. By understanding the types, benefits, installation processes, and maintenance tips for PVC electrical conduit, you can ensure a safe and efficient electrical system. Regular inspections, proper grounding, and following safety guidelines are essential to maintain the integrity and longevity of your PVC electrical conduit.
