Principal Stress Equation

Understanding the Principal Stress Equation is crucial for engineers and scientists working in fields such as civil engineering, mechanical engineering, and materials science. This equation helps in determining the principal stresses in a material, which are the maximum and minimum normal stresses that occur at a point within a stressed body. These stresses are essential for analyzing the behavior of materials under various loading conditions and ensuring structural integrity.

Table of Contents

What is the Principal Stress Equation?

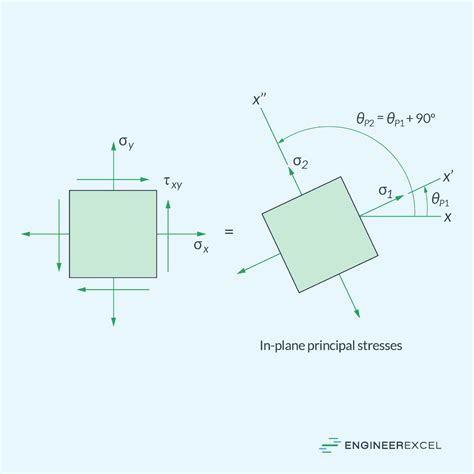

The Principal Stress Equation is derived from the stress transformation equations, which describe how stresses change with respect to different coordinate systems. The principal stresses are the eigenvalues of the stress tensor, and they represent the normal stresses acting on the principal planes, where shear stresses are zero. The principal stresses are denoted as σ1, σ2, and σ3, where σ1 is the maximum principal stress, σ2 is the intermediate principal stress, and σ3 is the minimum principal stress.

Derivation of the Principal Stress Equation

The derivation of the Principal Stress Equation involves solving the characteristic equation of the stress tensor. The stress tensor is a 3x3 matrix that represents the state of stress at a point in a material. The characteristic equation is obtained by setting the determinant of the matrix (σ - λI) to zero, where σ is the stress tensor, λ is the eigenvalue (principal stress), and I is the identity matrix.

The stress tensor in 2D can be represented as:

σx	τxy
τyx	σy

The characteristic equation for the 2D stress tensor is:

det(σ - λI) = 0

This simplifies to:

λ^2 - (σx + σy)λ + (σxσy - τxyτyx) = 0

Solving this quadratic equation gives the principal stresses:

λ1,2 = [(σx + σy) ± √((σx - σy)^2 + 4τxy^2)] / 2

For a 3D stress tensor, the characteristic equation is more complex and involves solving a cubic equation. The principal stresses are the roots of this cubic equation.

Applications of the Principal Stress Equation

The Principal Stress Equation has numerous applications in engineering and materials science. Some of the key applications include:

Structural Analysis: Engineers use the principal stresses to analyze the behavior of structures under various loading conditions. By determining the principal stresses, engineers can identify critical points in a structure where failure is likely to occur.
Material Selection: The principal stresses help in selecting appropriate materials for a given application. Materials with higher strength and stiffness are chosen for applications where the principal stresses are high.
Failure Criteria: The principal stresses are used in various failure criteria, such as the maximum principal stress criterion and the maximum shear stress criterion, to predict the failure of materials under complex loading conditions.
Finite Element Analysis (FEA): In FEA, the principal stresses are calculated at each node of the finite element mesh to determine the stress distribution in a structure. This information is crucial for optimizing the design and ensuring structural integrity.

Example Calculation of Principal Stresses

Let's consider an example to illustrate the calculation of principal stresses. Suppose we have a 2D stress state with the following stress components:

σx = 100 MPa, σy = 50 MPa, τxy = 30 MPa

The characteristic equation for this stress state is:

λ^2 - (100 + 50)λ + (100*50 - 30^2) = 0

Solving this equation gives the principal stresses:

λ1 = 115 MPa, λ2 = 35 MPa

Therefore, the maximum principal stress is 115 MPa, and the minimum principal stress is 35 MPa.

📝 Note: The above example is a simplified 2D case. In real-world applications, the stress state is often 3D, and the calculation of principal stresses involves solving a cubic equation.

Importance of Principal Stresses in Design

The principal stresses play a crucial role in the design of structures and components. By understanding the principal stresses, engineers can:

Identify critical points in a structure where failure is likely to occur.
Optimize the design to reduce stress concentrations and improve structural integrity.
Select appropriate materials that can withstand the principal stresses without failure.
Predict the behavior of materials under complex loading conditions.

In summary, the Principal Stress Equation is a powerful tool for engineers and scientists to analyze the behavior of materials under various loading conditions. By determining the principal stresses, engineers can ensure the safety and reliability of structures and components.

In conclusion, the Principal Stress Equation is a fundamental concept in engineering and materials science. It provides a systematic approach to determine the principal stresses in a material, which are essential for analyzing the behavior of materials under various loading conditions. By understanding the principal stresses, engineers can design structures and components that are safe, reliable, and efficient. The applications of the Principal Stress Equation are vast, ranging from structural analysis to material selection and failure criteria. Therefore, a thorough understanding of this equation is crucial for engineers and scientists working in these fields.
