In the realm of automotive diagnostics, having the right tools can make all the difference. One such tool that has gained significant popularity among professionals and enthusiasts alike is the Power Probe 4. This versatile diagnostic tool is designed to simplify the process of troubleshooting electrical issues in vehicles, making it an indispensable asset for anyone working in the automotive industry.
Understanding the Power Probe 4

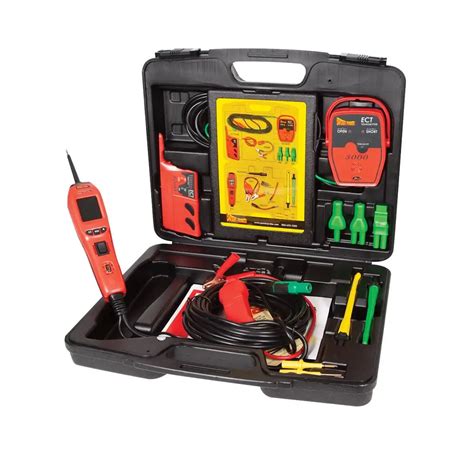

The Power Probe 4 is a multifunctional diagnostic tool that combines the capabilities of a multimeter, a circuit tester, and a power probe into a single device. It is specifically designed to help users identify and resolve electrical problems in vehicles efficiently. The tool features a variety of probes and adapters that allow it to test different components and circuits within a vehicle's electrical system.
Key Features of the Power Probe 4
The Power Probe 4 comes packed with features that make it a standout tool in the automotive diagnostics market. Some of the key features include:

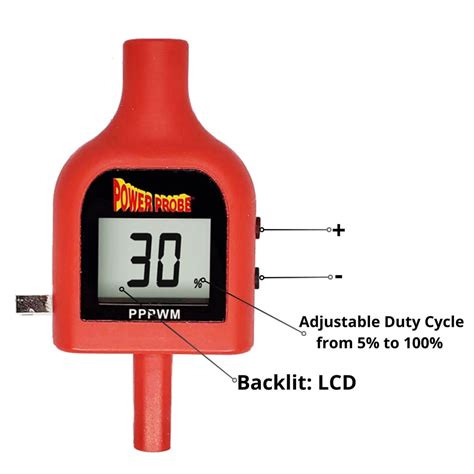

- Backlit Display: The tool features a backlit display that makes it easy to read in low-light conditions, ensuring that users can work comfortably in any environment.
- Multiple Test Functions: The Power Probe 4 offers a range of test functions, including continuity testing, voltage measurement, and resistance testing, making it a versatile tool for various diagnostic tasks.
- Interchangeable Probes: The tool comes with interchangeable probes that can be used to test different types of connectors and components, providing flexibility in troubleshooting.
- Auto-Ranging: The auto-ranging feature automatically selects the appropriate measurement range, simplifying the testing process and reducing the risk of errors.
- Durable Design: The Power Probe 4 is built to withstand the rigors of automotive work, with a robust design that ensures longevity and reliability.
How to Use the Power Probe 4
Using the Power Probe 4 is straightforward, thanks to its user-friendly design and intuitive interface. Here is a step-by-step guide on how to use the Power Probe 4 effectively:
Step 1: Familiarize Yourself with the Tool
Before using the Power Probe 4, take some time to familiarize yourself with its various components and functions. Read the user manual to understand the different probes, adapters, and test functions available.
Step 2: Prepare the Vehicle
Ensure that the vehicle is in a safe and stable position before beginning any diagnostic work. Turn off the ignition and disconnect the battery if necessary to prevent any electrical hazards.
Step 3: Select the Appropriate Probe

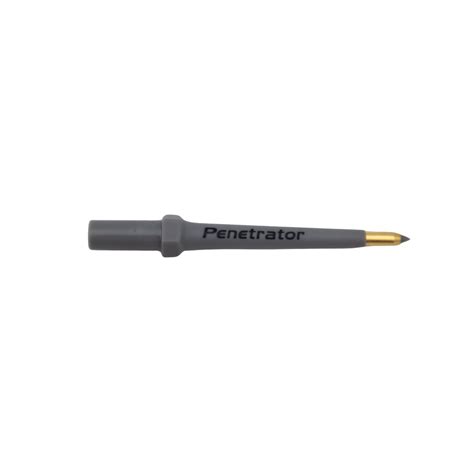

Choose the probe that is best suited for the component or circuit you need to test. The Power Probe 4 comes with a variety of probes, including alligator clips, needle probes, and back probes, each designed for specific testing needs.
Step 4: Connect the Probes
Connect the probes to the appropriate terminals or connectors on the vehicle's electrical system. Ensure that the connections are secure to obtain accurate readings.
Step 5: Perform the Test
Select the desired test function on the Power Probe 4 and follow the on-screen instructions to perform the test. The tool will display the results on its backlit screen, allowing you to interpret the data easily.
Step 6: Interpret the Results
Analyze the test results to identify any electrical issues within the vehicle's system. The Power Probe 4 provides clear and concise readings, making it easy to pinpoint problems such as short circuits, open circuits, or faulty components.
🔧 Note: Always refer to the vehicle's wiring diagram and repair manual for accurate troubleshooting and repair procedures.
Common Applications of the Power Probe 4
The Power Probe 4 is a versatile tool that can be used in a variety of automotive diagnostic scenarios. Some common applications include:
- Testing Fuses and Relays: The Power Probe 4 can quickly test fuses and relays to ensure they are functioning correctly, helping to identify blown fuses or faulty relays.
- Diagnosing Wiring Issues: The tool can be used to trace wiring problems, such as short circuits or open circuits, by testing the continuity and resistance of wires.
- Checking Sensor Outputs: The Power Probe 4 can measure the voltage and resistance of various sensors, helping to diagnose issues with engine management systems, ABS, and other electronic components.
- Testing Ground Connections: The tool can be used to check the integrity of ground connections, ensuring that they are secure and providing a reliable path for electrical current.
- Verifying Power Supply: The Power Probe 4 can verify the power supply to various components, such as lights, motors, and actuators, to ensure they are receiving the correct voltage.
Comparing the Power Probe 4 with Other Diagnostic Tools
While there are many diagnostic tools available on the market, the Power Probe 4 stands out due to its unique features and capabilities. Here is a comparison of the Power Probe 4 with other popular diagnostic tools:
| Feature | Power Probe 4 | Multimeter | Scan Tool |
|---|---|---|---|
| Voltage Measurement | Yes | Yes | Limited |
| Continuity Testing | Yes | Yes | No |
| Resistance Testing | Yes | Yes | No |
| Sensor Output Testing | Yes | Limited | Yes |
| Backlit Display | Yes | Some Models | Some Models |
| Interchangeable Probes | Yes | No | No |
The Power Probe 4 offers a comprehensive set of features that make it a versatile tool for automotive diagnostics. While multimeters and scan tools have their own strengths, the Power Probe 4's ability to perform multiple test functions and its user-friendly design make it a preferred choice for many professionals.
Tips for Effective Use of the Power Probe 4
To get the most out of your Power Probe 4, consider the following tips for effective use:
- Regular Calibration: Ensure that your Power Probe 4 is regularly calibrated to maintain accurate readings. Follow the manufacturer's guidelines for calibration procedures.
- Proper Storage: Store the Power Probe 4 in a safe and dry place when not in use to protect it from damage and ensure its longevity.
- Use Appropriate Probes: Always use the appropriate probes for the specific component or circuit you are testing to obtain accurate results.
- Safety First: Prioritize safety by disconnecting the battery and ensuring the vehicle is in a stable position before performing any diagnostic work.
- Consult Manuals: Refer to the vehicle's wiring diagram and repair manual for accurate troubleshooting and repair procedures.
🔧 Note: Always follow safety guidelines and best practices when using the Power Probe 4 to prevent electrical hazards and ensure accurate diagnostics.
Conclusion
The Power Probe 4 is a powerful and versatile diagnostic tool that simplifies the process of troubleshooting electrical issues in vehicles. With its comprehensive set of features, user-friendly design, and robust construction, it is an invaluable asset for automotive professionals and enthusiasts. By understanding its key features, learning how to use it effectively, and following best practices, you can enhance your diagnostic capabilities and ensure accurate and efficient repairs. Whether you are a seasoned professional or a DIY enthusiast, the Power Probe 4 is a tool that can significantly improve your automotive diagnostic experience.
