Understanding the dynamics of chemical reactions and molecular interactions is a cornerstone of chemistry. One of the most powerful tools in this endeavor is the Potential Energy Diagrams. These diagrams provide a visual representation of the energy changes that occur during a chemical reaction, offering insights into the stability of reactants, products, and transition states. By examining these diagrams, chemists can predict reaction outcomes, determine the feasibility of reactions, and design more efficient chemical processes.
What are Potential Energy Diagrams?

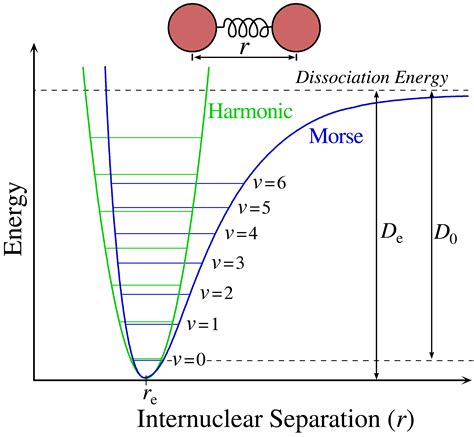

Potential Energy Diagrams are graphical representations that plot the potential energy of a system against the reaction coordinate. The reaction coordinate is a measure of the progress of a reaction, typically ranging from reactants to products. The diagram helps visualize the energy changes that occur as reactants transform into products, including the energy barriers that must be overcome.
Components of a Potential Energy Diagram
A typical Potential Energy Diagram includes several key components:
- Reactants: The starting materials of the reaction, represented at the left end of the diagram.
- Products: The final materials of the reaction, represented at the right end of the diagram.
- Transition State: The highest point on the energy curve, representing the most unstable state during the reaction.
- Activation Energy: The energy required to reach the transition state from the reactants.
- Reaction Coordinate: The horizontal axis that represents the progress of the reaction.
- Potential Energy: The vertical axis that represents the energy of the system.
Interpreting Potential Energy Diagrams
Interpreting Potential Energy Diagrams involves understanding the energy changes and the stability of different states in a reaction. Here are some key points to consider:
- Exothermic Reactions: In an exothermic reaction, the products have lower energy than the reactants. The energy released during the reaction is often represented as a downward slope from the reactants to the products.

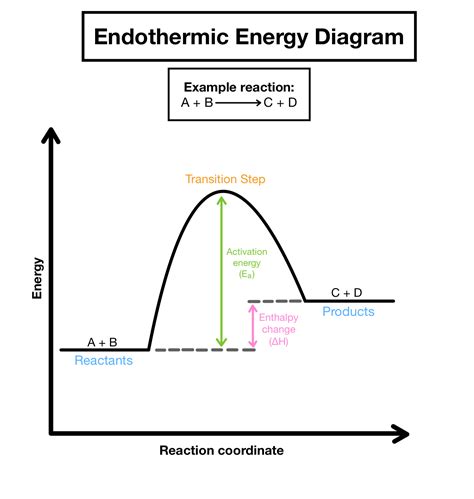

- Endothermic Reactions: In an endothermic reaction, the products have higher energy than the reactants. The energy absorbed during the reaction is represented as an upward slope from the reactants to the products.
- Activation Energy: The height of the energy barrier (activation energy) indicates the difficulty of the reaction. Higher activation energy means the reaction is less likely to occur spontaneously.
- Transition State: The transition state is a critical point where the reactants are partially converted to products. It is the highest energy point on the diagram and represents the most unstable state.
Applications of Potential Energy Diagrams
Potential Energy Diagrams are used in various fields of chemistry and related sciences. Some of the key applications include:
- Chemical Kinetics: Understanding the rate of reactions and the factors that influence reaction rates.
- Catalysis: Designing catalysts that lower the activation energy and increase the reaction rate.
- Thermodynamics: Analyzing the energy changes in chemical reactions to determine their feasibility.
- Molecular Dynamics: Studying the behavior of molecules during reactions to predict reaction outcomes.
Constructing a Potential Energy Diagram
Constructing a Potential Energy Diagram involves several steps. Here is a step-by-step guide:
- Identify the Reactants and Products: Determine the starting materials (reactants) and the final materials (products) of the reaction.
- Determine the Energy Levels: Measure or calculate the energy levels of the reactants, products, and transition state.
- Plot the Reaction Coordinate: Draw the horizontal axis representing the progress of the reaction.
- Plot the Potential Energy: Draw the vertical axis representing the energy of the system.
- Draw the Energy Curve: Plot the energy changes as the reaction progresses, including the activation energy and the transition state.
📝 Note: When constructing a Potential Energy Diagram, ensure that the energy levels are accurate and the reaction coordinate is clearly defined. This will help in accurately interpreting the diagram.
Examples of Potential Energy Diagrams
Let’s consider a few examples to illustrate the use of Potential Energy Diagrams.
Exothermic Reaction
In an exothermic reaction, the products have lower energy than the reactants. For example, consider the combustion of methane (CH₄):
CH₄ + 2O₂ → CO₂ + 2H₂O
| Reactants | Products | Activation Energy | Transition State |
|---|---|---|---|
| CH₄ + 2O₂ | CO₂ + 2H₂O | High | Unstable intermediates |
The Potential Energy Diagram for this reaction would show a downward slope from the reactants to the products, indicating the release of energy.
Endothermic Reaction
In an endothermic reaction, the products have higher energy than the reactants. For example, consider the decomposition of calcium carbonate (CaCO₃):
CaCO₃ → CaO + CO₂
| Reactants | Products | Activation Energy | Transition State |
|---|---|---|---|
| CaCO₃ | CaO + CO₂ | Moderate | Unstable intermediates |
The Potential Energy Diagram for this reaction would show an upward slope from the reactants to the products, indicating the absorption of energy.
Advanced Topics in Potential Energy Diagrams
Beyond the basics, Potential Energy Diagrams can be used to explore more complex chemical phenomena. Some advanced topics include:
- Multi-step Reactions: Reactions that involve multiple intermediates and transition states.
- Catalyzed Reactions: Reactions that are facilitated by catalysts, which lower the activation energy.
- Reaction Mechanisms: Detailed pathways that describe how reactants are converted to products.
- Energy Profiles: Comprehensive energy profiles that include all possible reaction pathways.
Challenges and Limitations
While Potential Energy Diagrams are powerful tools, they also have limitations. Some challenges include:
- Complexity: For multi-step reactions, the diagrams can become complex and difficult to interpret.
- Accuracy: The accuracy of the diagram depends on the precision of the energy measurements and calculations.
- Interpretation: Misinterpretation of the diagram can lead to incorrect conclusions about the reaction.
📝 Note: To overcome these challenges, it is essential to use accurate data and carefully interpret the diagrams. Advanced computational tools can also help in constructing and analyzing complex Potential Energy Diagrams.
In conclusion, Potential Energy Diagrams are invaluable tools in chemistry, providing a visual representation of energy changes during reactions. By understanding the components and interpreting the diagrams accurately, chemists can gain insights into reaction mechanisms, predict outcomes, and design more efficient chemical processes. Whether studying simple reactions or complex multi-step processes, Potential Energy Diagrams offer a comprehensive approach to analyzing chemical dynamics.
