Potential Energy Diagram

Understanding the dynamics of chemical reactions is a fundamental aspect of chemistry, and one of the most powerful tools for this purpose is the Potential Energy Diagram. This diagram provides a visual representation of the energy changes that occur during a chemical reaction, helping chemists to analyze the stability of reactants and products, as well as the energy barriers that must be overcome for the reaction to proceed.

Table of Contents

What is a Potential Energy Diagram?

A Potential Energy Diagram is a graphical representation that plots the potential energy of a system against the reaction coordinate, which is a measure of the progress of a chemical reaction. The diagram typically includes several key features:

The energy levels of the reactants and products.
The activation energy, which is the energy barrier that must be overcome for the reaction to proceed.
The transition state, which is the highest energy point along the reaction coordinate.

By examining these features, chemists can gain insights into the kinetics and thermodynamics of a reaction.

Components of a Potential Energy Diagram

The Potential Energy Diagram consists of several critical components that provide essential information about the reaction:

Reactants: The starting materials of the reaction, represented by the initial energy level on the diagram.
Products: The final materials of the reaction, represented by the final energy level on the diagram.
Activation Energy (Ea): The energy required to reach the transition state from the reactants. This is the energy barrier that must be overcome for the reaction to proceed.
Transition State: The highest energy point along the reaction coordinate, representing the most unstable state of the reaction.
Reaction Coordinate: A measure of the progress of the reaction, typically plotted on the x-axis.

These components work together to provide a comprehensive view of the energy changes during a chemical reaction.

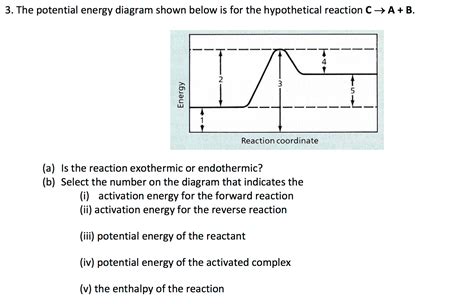

Interpreting a Potential Energy Diagram

Interpreting a Potential Energy Diagram involves understanding the energy levels and the activation energy. Here’s a step-by-step guide to interpreting the diagram:

Identify the Reactants and Products: Locate the energy levels of the reactants and products on the diagram. The reactants are typically on the left side, and the products are on the right side.

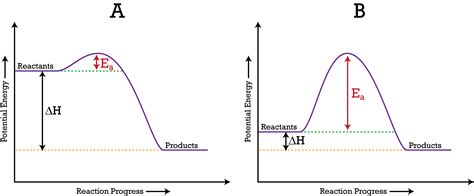

Determine the Activation Energy: Identify the highest point on the diagram, which represents the transition state. The difference in energy between the reactants and the transition state is the activation energy.
Analyze the Energy Change: Compare the energy levels of the reactants and products to determine whether the reaction is exothermic (releases energy) or endothermic (absorbs energy).

By following these steps, you can gain a clear understanding of the energy dynamics of a chemical reaction.

💡 Note: The activation energy is crucial for understanding the rate of a reaction. A higher activation energy means the reaction will proceed more slowly, while a lower activation energy indicates a faster reaction.

Types of Potential Energy Diagrams

There are different types of Potential Energy Diagrams that can be used to analyze various aspects of chemical reactions. The most common types include:

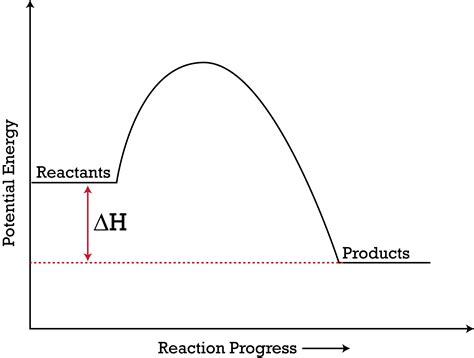

Exothermic Reactions: In these reactions, the products have lower energy than the reactants, indicating that energy is released during the reaction.
Endothermic Reactions: In these reactions, the products have higher energy than the reactants, indicating that energy is absorbed during the reaction.

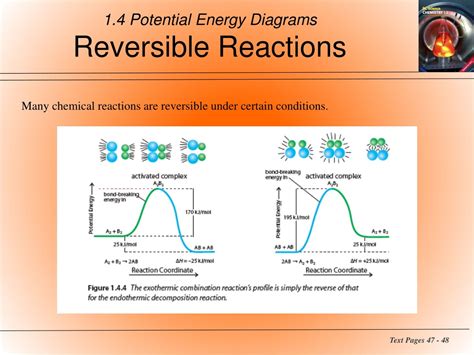

Reversible Reactions: These reactions can proceed in both the forward and reverse directions, and the diagram will show two activation energy barriers, one for each direction.

Each type of diagram provides unique insights into the energy changes and kinetics of the reaction.

Applications of Potential Energy Diagrams

The Potential Energy Diagram is a versatile tool with numerous applications in chemistry. Some of the key applications include:

Catalysis: Catalysts lower the activation energy of a reaction, making it easier for the reaction to proceed. By analyzing the diagram, chemists can understand how catalysts work and design more effective ones.
Reaction Mechanisms: The diagram helps in understanding the step-by-step process of a reaction, including the formation of intermediates and transition states.
Thermodynamics: The energy levels of the reactants and products provide information about the enthalpy change (ΔH) of the reaction, which is a key thermodynamic property.

These applications highlight the importance of Potential Energy Diagrams in various areas of chemistry.

Constructing a Potential Energy Diagram

Constructing a Potential Energy Diagram involves several steps. Here’s a detailed guide to creating one:

Gather Data: Collect data on the energy levels of the reactants, products, and transition state. This data can be obtained from experimental measurements or theoretical calculations.
Plot the Reaction Coordinate: Draw the x-axis to represent the reaction coordinate, which shows the progress of the reaction from reactants to products.
Plot the Energy Levels: Draw the y-axis to represent the potential energy. Plot the energy levels of the reactants, products, and transition state on the diagram.
Connect the Points: Connect the points to form a smooth curve that represents the energy changes during the reaction.

By following these steps, you can create a Potential Energy Diagram that accurately represents the energy dynamics of a chemical reaction.

💡 Note: It’s important to ensure that the diagram is accurate and to scale. Any inaccuracies can lead to misinterpretations of the reaction dynamics.

Example of a Potential Energy Diagram

Let’s consider an example of an exothermic reaction to illustrate the construction of a Potential Energy Diagram. Suppose we have the following data:

Component	Energy Level (kJ/mol)
Reactants	100
Transition State	150
Products	50

Using this data, we can construct the diagram as follows:

Plot the reaction coordinate on the x-axis.
Plot the energy levels on the y-axis.
Connect the points to form a curve that shows the energy changes during the reaction.

This diagram will show that the reaction is exothermic, with the products having lower energy than the reactants. The activation energy can be calculated as the difference between the energy of the transition state and the reactants, which is 50 kJ/mol.

Advanced Topics in Potential Energy Diagrams

For those interested in delving deeper into the subject, there are several advanced topics related to Potential Energy Diagrams that can provide further insights:

Multi-step Reactions: In multi-step reactions, the diagram will show multiple transition states and intermediates, providing a detailed view of the reaction mechanism.
Quantum Mechanical Calculations: Advanced computational methods can be used to calculate the energy levels and transition states with high accuracy, providing a more detailed Potential Energy Diagram.
Enzyme Catalysis: Enzymes lower the activation energy of biochemical reactions, and analyzing the diagram can help understand their catalytic mechanisms.

These advanced topics offer a deeper understanding of the energy dynamics of chemical reactions and their applications.

💡 Note: Advanced topics often require a strong background in chemistry and computational methods. It’s important to have a solid foundation in the basics before exploring these areas.

In conclusion, the Potential Energy Diagram is an invaluable tool for understanding the energy changes and kinetics of chemical reactions. By analyzing the energy levels of reactants, products, and transition states, chemists can gain insights into the stability, reactivity, and mechanisms of chemical reactions. Whether used for simple reactions or complex multi-step processes, the Potential Energy Diagram provides a clear and comprehensive view of the energy dynamics involved. This understanding is crucial for designing more efficient reactions, developing effective catalysts, and advancing the field of chemistry.
