Porosity In Welding

Welding is a critical process in various industries, from construction to manufacturing, ensuring the integrity and strength of metal structures. One of the key factors that can significantly impact the quality of a weld is porosity in welding. Porosity refers to the presence of small holes or voids within the weld metal, which can compromise the weld's strength and durability. Understanding the causes, effects, and prevention of porosity is essential for achieving high-quality welds.

Understanding Porosity in Welding

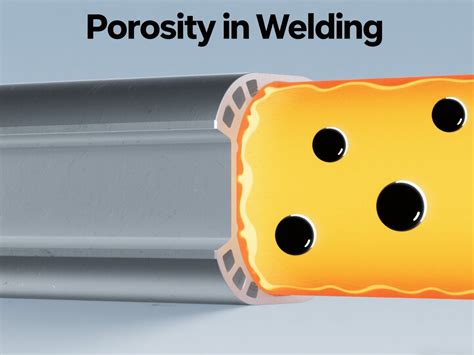

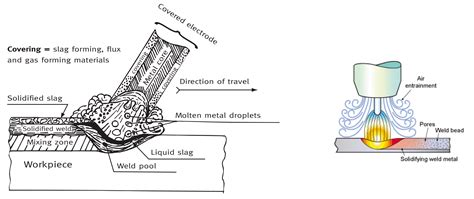

Porosity in welding occurs when gases become trapped within the molten weld pool and solidify as the weld cools. These gases can come from various sources, including the base metal, filler material, shielding gas, and the surrounding environment. The presence of porosity can lead to several issues, such as reduced weld strength, increased susceptibility to cracking, and poor corrosion resistance.

Causes of Porosity in Welding

Several factors can contribute to porosity in welding. Understanding these causes is the first step in preventing and mitigating porosity issues.

Moisture and Contaminants

Moisture and contaminants on the base metal or filler material can release gases during welding, leading to porosity. Common contaminants include oil, grease, paint, and rust. These substances can release hydrogen, oxygen, and other gases when heated, which can become trapped in the weld.

Shielding Gas Issues

The shielding gas used in welding processes like Gas Metal Arc Welding (GMAW) and Gas Tungsten Arc Welding (GTAW) plays a crucial role in preventing porosity. If the shielding gas is contaminated or if there is insufficient gas flow, atmospheric gases like nitrogen and oxygen can enter the weld pool, causing porosity.

Base Metal Composition

The composition of the base metal can also affect porosity. Certain metals, such as those with high sulfur or phosphorus content, are more prone to porosity. Additionally, metals with high levels of volatile elements can release gases during welding, leading to porosity.

Welding Parameters

Welding parameters, including voltage, current, and travel speed, can influence the occurrence of porosity. Incorrect settings can lead to an unstable arc, which can trap gases in the weld pool. Similarly, excessive heat input can cause the base metal to release gases, resulting in porosity.

Effects of Porosity in Welding

Porosity in welding can have several detrimental effects on the quality and performance of the weld. Some of the key effects include:

Reduced Weld Strength: Porosity weakens the weld by creating voids that reduce the effective cross-sectional area of the weld.
Increased Susceptibility to Cracking: Porosity can act as stress concentrators, making the weld more susceptible to cracking under load.
Poor Corrosion Resistance: Porosity can create pathways for corrosive agents to penetrate the weld, leading to accelerated corrosion.
Aesthetic Issues: Porosity can result in an unsightly weld surface, which may be unacceptable for applications where appearance is important.

Preventing Porosity in Welding

Preventing porosity in welding involves a combination of proper preparation, correct welding techniques, and appropriate equipment settings. Here are some strategies to minimize porosity:

Surface Preparation

Ensure that the base metal and filler material are clean and free of contaminants. Remove any oil, grease, paint, or rust from the welding area. Use appropriate cleaning methods, such as grinding, wire brushing, or chemical cleaning, to prepare the surface for welding.

Shielding Gas Management

Use high-quality shielding gas and ensure that the gas flow rate is sufficient to protect the weld pool from atmospheric contamination. Regularly check and maintain the shielding gas equipment to prevent leaks and contamination.

Welding Parameters

Optimize welding parameters, including voltage, current, and travel speed, to achieve a stable arc and minimize gas entrapment. Follow the manufacturer's recommendations for welding parameters and adjust as needed based on the specific application and material.

Preheating and Post-Weld Heat Treatment

Preheating the base metal can help reduce the release of gases during welding, particularly for metals with high levels of volatile elements. Post-weld heat treatment can also help to diffuse trapped gases and improve the weld's microstructure.

🔍 Note: Always follow safety guidelines when preheating and performing post-weld heat treatment to avoid injuries and equipment damage.

Identifying Porosity in Welds

Identifying porosity in welds is crucial for ensuring the quality and integrity of the weld. Several methods can be used to detect porosity, including visual inspection, radiographic testing, and ultrasonic testing.

Visual Inspection

Visual inspection is the simplest and most common method for detecting porosity. Look for small holes or pits on the weld surface, which may indicate the presence of porosity. However, visual inspection may not detect internal porosity, so it should be used in conjunction with other methods.

Radiographic Testing

Radiographic testing uses X-rays or gamma rays to create an image of the weld's internal structure. This method can detect both surface and internal porosity, making it a valuable tool for ensuring weld quality.

Ultrasonic Testing

Ultrasonic testing uses high-frequency sound waves to detect flaws in the weld. This method can identify both surface and internal porosity, as well as other defects such as cracks and inclusions.

Common Porosity Types

Porosity in welding can take various forms, each with its own characteristics and causes. Understanding the different types of porosity can help in identifying and preventing these issues.

Porosity Type	Characteristics	Causes
Scattered Porosity	Randomly distributed small pores throughout the weld.	Contaminants, moisture, or improper shielding gas.
Linear Porosity	Pores aligned in a linear pattern, often along the weld centerline.	Inadequate shielding gas flow or contamination.
Wormhole Porosity	Elongated pores that resemble wormholes.	High sulfur content in the base metal or filler material.
Craters	Large, irregular pores at the end of the weld.	Rapid cooling or insufficient shielding gas at the weld end.

Case Studies and Examples

To illustrate the impact of porosity in welding, let's consider a few case studies and examples:

Case Study 1: Construction Industry

In a construction project, welds were found to have scattered porosity, leading to reduced strength and increased susceptibility to cracking. The issue was traced back to contaminated base metal and insufficient shielding gas flow. By improving surface preparation and optimizing welding parameters, the porosity was significantly reduced, and the weld quality improved.

Case Study 2: Manufacturing Industry

In a manufacturing setting, linear porosity was detected in welds used to join high-strength steel components. The porosity was caused by inadequate shielding gas flow, which allowed atmospheric gases to enter the weld pool. By adjusting the shielding gas flow rate and ensuring proper gas coverage, the linear porosity was eliminated, resulting in stronger and more reliable welds.

Example: Automotive Industry

In the automotive industry, porosity in welds can lead to structural failures and safety issues. To prevent porosity, manufacturers use preheating and post-weld heat treatment to reduce the release of gases during welding. Additionally, they employ advanced welding techniques and high-quality shielding gases to minimize the risk of porosity.

Porosity in welding is a critical issue that can significantly impact the quality and performance of welds. By understanding the causes, effects, and prevention strategies for porosity, welders and engineers can ensure the integrity and reliability of welded structures. Proper surface preparation, shielding gas management, and optimized welding parameters are essential for minimizing porosity and achieving high-quality welds.
