Polyjet 3D Printing

Polyjet 3D printing is a revolutionary technology that has transformed the manufacturing landscape. This advanced form of additive manufacturing uses inkjet printing technology to build three-dimensional objects layer by layer. Unlike traditional 3D printing methods, Polyjet 3D printing offers unparalleled precision, speed, and versatility, making it a preferred choice for various industries, including aerospace, automotive, medical, and consumer goods.

Table of Contents

Understanding Polyjet 3D Printing

Polyjet 3D printing, also known as PolyJet Matrix, is a type of 3D printing technology that utilizes photopolymerization to create objects. This process involves the deposition of liquid photopolymer materials onto a build tray, which are then cured using UV light. The key advantage of Polyjet 3D printing is its ability to produce highly detailed and complex geometries with exceptional surface finish.

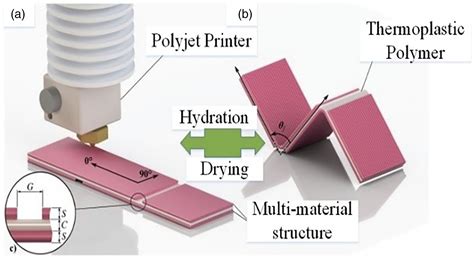

One of the standout features of Polyjet 3D printing is its multi-material capabilities. This technology allows for the simultaneous use of multiple materials within a single print job, enabling the creation of parts with varying mechanical properties, colors, and textures. This flexibility is particularly beneficial for applications that require functional prototypes, medical models, and custom manufacturing solutions.

How Polyjet 3D Printing Works

Polyjet 3D printing operates on a straightforward yet sophisticated principle. The process begins with the deposition of liquid photopolymer resins onto a build tray. These resins are then cured using UV light, solidifying them into the desired shape. The build tray moves incrementally, allowing for the layer-by-layer construction of the object. This method ensures high precision and detail, making it ideal for applications that demand intricate designs.

The Polyjet 3D printing process can be broken down into several key steps:

Design and Preparation: The first step involves creating a 3D model using CAD software. This model is then sliced into thin layers, which serve as the blueprint for the printing process.
Material Deposition: The liquid photopolymer resins are deposited onto the build tray through inkjet printheads. These printheads move horizontally, depositing the material layer by layer.
UV Curing: As each layer is deposited, it is immediately cured using UV light. This curing process solidifies the liquid resin, ensuring that the layer adheres to the previous one.
Layering: The build tray moves downward incrementally, allowing for the deposition and curing of the next layer. This process continues until the entire object is complete.
Post-Processing: Once the printing is finished, the object may require post-processing steps such as cleaning, support removal, and additional curing to achieve the desired finish.

🔍 Note: The quality of the final product in Polyjet 3D printing is highly dependent on the precision of the UV curing process and the quality of the photopolymer resins used.

Applications of Polyjet 3D Printing

Polyjet 3D printing has found applications across a wide range of industries due to its versatility and precision. Some of the key areas where Polyjet 3D printing is utilized include:

Aerospace: The aerospace industry benefits from Polyjet 3D printing for creating lightweight and complex components. The ability to produce parts with intricate geometries and high strength-to-weight ratios makes it ideal for aerospace applications.

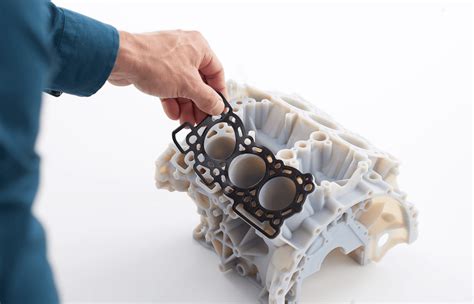

Automotive: In the automotive sector, Polyjet 3D printing is used for prototyping and manufacturing custom parts. The technology allows for the creation of functional prototypes that can be tested for performance and durability before mass production.
Medical: The medical field leverages Polyjet 3D printing for producing anatomical models, surgical guides, and custom implants. The high precision and detail of Polyjet 3D printing make it suitable for creating patient-specific medical devices.
Consumer Goods: Polyjet 3D printing is also used in the consumer goods industry for creating prototypes and custom products. The ability to produce parts with varying colors, textures, and mechanical properties makes it ideal for consumer applications.

Advantages of Polyjet 3D Printing

Polyjet 3D printing offers several advantages over traditional manufacturing methods and other 3D printing technologies. Some of the key benefits include:

High Precision and Detail: Polyjet 3D printing produces parts with exceptional detail and precision, making it suitable for applications that require intricate designs.
Multi-Material Capabilities: The ability to use multiple materials within a single print job allows for the creation of parts with varying properties, colors, and textures.
Speed and Efficiency: Polyjet 3D printing is known for its speed and efficiency, enabling the rapid production of prototypes and custom parts.
Cost-Effective: Compared to traditional manufacturing methods, Polyjet 3D printing can be more cost-effective, especially for small-batch production and prototyping.
Versatility: Polyjet 3D printing can be used with a wide range of materials, including rigid, flexible, and biocompatible resins, making it versatile for various applications.

Materials Used in Polyjet 3D Printing

Polyjet 3D printing utilizes a variety of photopolymer resins, each with unique properties tailored to specific applications. Some of the commonly used materials in Polyjet 3D printing include:

Material	Properties	Applications
Rigid Opaque	High strength, durability, and opacity	Prototyping, functional parts, and end-use components
Flexible	Elasticity and flexibility	Medical devices, seals, and gaskets
Transparent	High optical clarity	Optical components, lenses, and light guides
Biocompatible	Suitable for medical applications	Implants, surgical guides, and anatomical models

🔍 Note: The choice of material in Polyjet 3D printing depends on the specific requirements of the application, including mechanical properties, color, and biocompatibility.

Challenges and Limitations of Polyjet 3D Printing

While Polyjet 3D printing offers numerous advantages, it also comes with certain challenges and limitations. Some of the key issues include:

Material Cost: The photopolymer resins used in Polyjet 3D printing can be expensive, making it less cost-effective for large-scale production.
Post-Processing: Polyjet 3D printed parts often require post-processing steps such as cleaning, support removal, and additional curing, which can be time-consuming.
Limited Build Volume: The build volume of Polyjet 3D printers is generally smaller compared to other 3D printing technologies, limiting the size of parts that can be produced.
Material Limitations: While Polyjet 3D printing offers a range of materials, it may not be suitable for applications that require high-temperature resistance or specific mechanical properties.

Despite these challenges, ongoing advancements in Polyjet 3D printing technology are addressing many of these limitations, making it an increasingly viable option for a wide range of applications.

Future Trends in Polyjet 3D Printing

The future of Polyjet 3D printing looks promising, with several emerging trends and innovations poised to enhance its capabilities and applications. Some of the key trends include:

Advanced Materials: The development of new photopolymer resins with enhanced properties, such as improved strength, flexibility, and biocompatibility, will expand the range of applications for Polyjet 3D printing.
Increased Build Volume: Advances in printer technology will enable larger build volumes, allowing for the production of bigger and more complex parts.
Integration with Other Technologies: The integration of Polyjet 3D printing with other manufacturing technologies, such as CNC machining and injection molding, will create hybrid manufacturing solutions that combine the strengths of multiple processes.
Automation and AI: The incorporation of automation and artificial intelligence (AI) will streamline the Polyjet 3D printing process, improving efficiency, accuracy, and cost-effectiveness.

As these trends continue to evolve, Polyjet 3D printing is set to play an even more significant role in various industries, driving innovation and transforming manufacturing processes.

Polyjet 3D printing is a groundbreaking technology that offers unparalleled precision, versatility, and efficiency. Its ability to produce highly detailed and complex geometries with exceptional surface finish makes it a preferred choice for a wide range of applications. From aerospace and automotive to medical and consumer goods, Polyjet 3D printing is revolutionizing the way products are designed and manufactured. As the technology continues to advance, it will undoubtedly open up new possibilities and drive further innovation in the manufacturing landscape.
