Poles And Zeros

Understanding the concepts of Poles and Zeros is fundamental in the field of control systems and signal processing. These terms are used to describe the behavior of linear time-invariant (LTI) systems, which are essential in various engineering disciplines. Whether you are designing filters, analyzing control systems, or working with digital signal processing, grasping the significance of poles and zeros is crucial.

Table of Contents

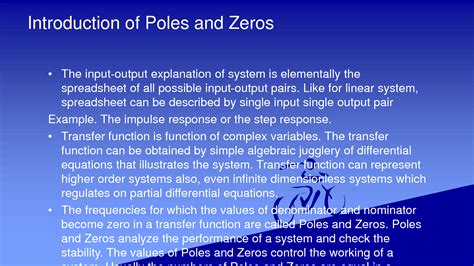

What are Poles and Zeros?

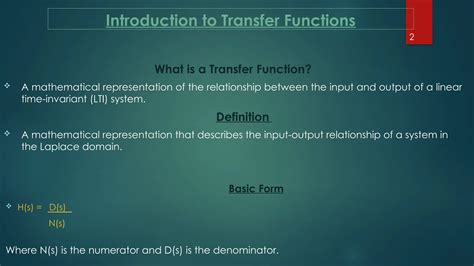

In the context of LTI systems, Poles and Zeros are the roots of the denominator and numerator polynomials of the system's transfer function, respectively. The transfer function of an LTI system is a mathematical representation that describes the relationship between the input and output of the system. It is typically expressed as a ratio of two polynomials:

H(s) = N(s) / D(s)

Where N(s) is the numerator polynomial and D(s) is the denominator polynomial. The roots of N(s) are called zeros, and the roots of D(s) are called poles.

Understanding Poles

Poles are the values of s that make the denominator of the transfer function zero. They determine the stability and transient response of the system. The location of poles in the complex plane provides insights into the system's behavior:

Stable System: If all poles lie in the left half of the complex plane (i.e., the real part of the pole is negative), the system is stable.
Unstable System: If any pole lies in the right half of the complex plane (i.e., the real part of the pole is positive), the system is unstable.
Marginally Stable System: If poles lie on the imaginary axis, the system is marginally stable.

Poles can be real or complex. Complex poles often occur in conjugate pairs, which can affect the system's oscillatory behavior. The distance of poles from the imaginary axis determines the damping of the system's response.

Understanding Zeros

Zeros are the values of s that make the numerator of the transfer function zero. They influence the system's frequency response and can affect the system's gain and phase characteristics. Zeros can also be real or complex and can occur in pairs. The location of zeros in the complex plane can be used to shape the system's response:

Gain Enhancement: Zeros can be used to enhance the gain of the system at specific frequencies.
Phase Shift: Zeros can introduce phase shifts in the system's response, which can be useful in designing filters and control systems.

Zeros can also affect the stability of the system. For example, a zero in the right half of the complex plane can destabilize the system if not properly compensated.

Poles and Zeros in Control Systems

In control systems, Poles and Zeros play a critical role in determining the system's performance. The placement of poles and zeros can be used to achieve desired performance characteristics such as stability, transient response, and steady-state error. Control system designers often use techniques such as root locus, Bode plots, and Nyquist plots to analyze and design systems based on their poles and zeros.

For example, in a feedback control system, the poles of the closed-loop transfer function determine the system's stability and transient response. By appropriately placing the poles, designers can achieve desired performance characteristics such as fast response, minimal overshoot, and good stability margins.

Poles and Zeros in Signal Processing

In signal processing, Poles and Zeros are used to design filters that can shape the frequency response of a signal. Filters are essential in various applications, including audio processing, image processing, and communication systems. The placement of poles and zeros in the filter's transfer function determines its frequency response characteristics:

Low-Pass Filters: These filters allow low-frequency signals to pass while attenuating high-frequency signals. The poles and zeros are placed to achieve the desired cutoff frequency and roll-off characteristics.
High-Pass Filters: These filters allow high-frequency signals to pass while attenuating low-frequency signals. The poles and zeros are placed to achieve the desired cutoff frequency and roll-off characteristics.
Band-Pass Filters: These filters allow signals within a specific frequency range to pass while attenuating signals outside this range. The poles and zeros are placed to achieve the desired center frequency and bandwidth.

Designing filters with specific poles and zeros involves techniques such as Butterworth, Chebyshev, and Elliptic filter designs. These techniques provide different trade-offs between filter characteristics such as passband ripple, stopband attenuation, and phase linearity.

Poles and Zeros in Digital Signal Processing

In digital signal processing (DSP), Poles and Zeros are used to design digital filters that can process discrete-time signals. Digital filters are implemented using algorithms that can be executed on digital hardware such as microprocessors, DSP chips, and FPGAs. The design of digital filters involves techniques such as the bilinear transform, which maps the analog filter's poles and zeros to the digital domain.

Digital filters can be designed using various methods, including:

Finite Impulse Response (FIR) Filters: These filters have zeros but no poles, making them inherently stable. FIR filters are designed using techniques such as windowing and frequency sampling.
Infinite Impulse Response (IIR) Filters: These filters have both poles and zeros. IIR filters can achieve sharper cutoff characteristics with fewer coefficients compared to FIR filters, but they can be more sensitive to quantization errors and coefficient variations.

Designing digital filters with specific poles and zeros involves techniques such as the bilinear transform, which maps the analog filter's poles and zeros to the digital domain. The bilinear transform provides a way to convert analog filter designs to digital filter designs while preserving the filter's frequency response characteristics.

Poles and Zeros in MATLAB

MATLAB is a powerful tool for analyzing and designing systems based on their poles and zeros. MATLAB provides various functions and tools to work with poles and zeros, including:

tf: This function creates a transfer function model from the numerator and denominator polynomials.
zpk: This function creates a zero-pole-gain model from the zeros, poles, and gain of the system.
pzmap: This function plots the poles and zeros of a system in the complex plane.
bode: This function plots the Bode diagram of a system, showing the magnitude and phase response as a function of frequency.
nyquist: This function plots the Nyquist diagram of a system, showing the frequency response in the complex plane.

For example, to create a transfer function model in MATLAB, you can use the following code:


num = [1 2]; % Numerator polynomial coefficients
den = [1 3 2]; % Denominator polynomial coefficients
H = tf(num, den); % Create transfer function model

To plot the poles and zeros of the system, you can use the following code:


pzmap(H); % Plot poles and zeros

To plot the Bode diagram of the system, you can use the following code:


bode(H); % Plot Bode diagram

To plot the Nyquist diagram of the system, you can use the following code:


nyquist(H); % Plot Nyquist diagram

💡 Note: MATLAB provides a comprehensive set of tools for analyzing and designing systems based on their poles and zeros. Familiarizing yourself with these tools can greatly enhance your ability to work with LTI systems.

Poles and Zeros in Circuit Design

In circuit design, Poles and Zeros are used to analyze and design analog filters and amplifiers. The transfer function of a circuit can be derived from its component values, and the poles and zeros of the transfer function provide insights into the circuit's behavior. For example, in an RC circuit, the poles and zeros determine the circuit's frequency response and transient behavior.

Designing circuits with specific poles and zeros involves techniques such as:

RC Circuits: These circuits can be designed to achieve specific poles and zeros by selecting appropriate resistor and capacitor values.
RL Circuits: These circuits can be designed to achieve specific poles and zeros by selecting appropriate resistor and inductor values.
RLC Circuits: These circuits can be designed to achieve specific poles and zeros by selecting appropriate resistor, inductor, and capacitor values.

For example, in an RC low-pass filter, the transfer function can be derived as:

H(s) = 1 / (1 + sRC)

Where R is the resistance and C is the capacitance. The pole of the transfer function is at s = -1/RC, which determines the cutoff frequency of the filter.

In an RLC band-pass filter, the transfer function can be derived as:

H(s) = (sL) / (s^2LC + sRC + 1)

Where L is the inductance, R is the resistance, and C is the capacitance. The poles and zeros of the transfer function determine the center frequency and bandwidth of the filter.

💡 Note: Designing circuits with specific poles and zeros involves a good understanding of circuit theory and component values. It is important to verify the design using simulation tools and prototyping before implementing it in a real application.

Poles and Zeros in Mechanical Systems

In mechanical systems, Poles and Zeros are used to analyze and design control systems for mechanical devices such as robots, vehicles, and machinery. The transfer function of a mechanical system can be derived from its physical parameters, and the poles and zeros of the transfer function provide insights into the system's dynamic behavior. For example, in a mass-spring-damper system, the poles and zeros determine the system's natural frequency and damping ratio.

Designing mechanical systems with specific poles and zeros involves techniques such as:

Mass-Spring-Damper Systems: These systems can be designed to achieve specific poles and zeros by selecting appropriate mass, spring, and damper values.
Rotational Systems: These systems can be designed to achieve specific poles and zeros by selecting appropriate inertia, stiffness, and damping values.

For example, in a mass-spring-damper system, the transfer function can be derived as:

H(s) = 1 / (ms^2 + bs + k)

Where m is the mass, b is the damping coefficient, and k is the spring constant. The poles of the transfer function are at s = -b/2m ± √(b^2/4m^2 - k/m), which determine the system's natural frequency and damping ratio.

In a rotational system, the transfer function can be derived as:

H(s) = 1 / (Js^2 + bs + k)

Where J is the moment of inertia, b is the damping coefficient, and k is the torsional stiffness. The poles of the transfer function are at s = -b/2J ± √(b^2/4J^2 - k/J), which determine the system's natural frequency and damping ratio.

💡 Note: Designing mechanical systems with specific poles and zeros involves a good understanding of mechanical dynamics and physical parameters. It is important to verify the design using simulation tools and prototyping before implementing it in a real application.

Poles and Zeros in Control System Design

In control system design, Poles and Zeros are used to achieve desired performance characteristics such as stability, transient response, and steady-state error. Control system designers often use techniques such as root locus, Bode plots, and Nyquist plots to analyze and design systems based on their poles and zeros. For example, in a feedback control system, the poles of the closed-loop transfer function determine the system's stability and transient response. By appropriately placing the poles, designers can achieve desired performance characteristics such as fast response, minimal overshoot, and good stability margins.

Designing control systems with specific poles and zeros involves techniques such as:

PID Controllers: These controllers can be designed to achieve specific poles and zeros by selecting appropriate proportional, integral, and derivative gains.
State-Space Controllers: These controllers can be designed to achieve specific poles and zeros by selecting appropriate state feedback gains.

For example, in a PID controller, the transfer function can be derived as:

H(s) = Kp + Ki/s + Kd*s

Where Kp is the proportional gain, Ki is the integral gain, and Kd is the derivative gain. The poles and zeros of the transfer function determine the controller's performance characteristics.

In a state-space controller, the transfer function can be derived as:

H(s) = C(sI - A + BK)^-1B

Where A is the system matrix, B is the input matrix, C is the output matrix, and K is the state feedback gain. The poles of the transfer function are determined by the eigenvalues of the matrix A - BK, which can be placed at desired locations to achieve specific performance characteristics.

💡 Note: Designing control systems with specific poles and zeros involves a good understanding of control theory and system dynamics. It is important to verify the design using simulation tools and prototyping before implementing it in a real application.

Poles and Zeros in Filter Design

In filter design, Poles and Zeros are used to shape the frequency response of a signal. Filters are essential in various applications, including audio processing, image processing, and communication systems. The placement of poles and zeros in the filter's transfer function determines its frequency response characteristics. For example, in a low-pass filter, the poles and zeros are placed to achieve the desired cutoff frequency and roll-off characteristics.

Designing filters with specific poles and zeros involves techniques such as:

Butterworth Filters: These filters have a maximally flat frequency response in the passband and are designed to have poles and zeros that achieve this characteristic.
Chebyshev Filters: These filters have a ripple in the passband and are designed to have poles and zeros that achieve this characteristic.
Elliptic Filters: These filters have both passband and stopband ripples and are designed to have poles and zeros that achieve this characteristic.

For example, in a Butterworth low-pass filter, the transfer function can be derived as:

H(s) = 1 / (s^n + a1*s^(n-1) + ... + a(n-1)*s + a(n))

Where n is the order of the filter, and a1, a2, ..., an are the coefficients of the denominator polynomial. The poles of the transfer function are placed on a circle in the left half of the complex plane to achieve a maximally flat frequency response.

In a Chebyshev low-pass filter, the transfer function can be derived as:

H(s) = 1 / (s^n + a1*s^(n-1) + ... + a(n-1)*s + a(n))

Where n is the order of the filter, and a1, a2, ..., an are the coefficients of the denominator polynomial. The poles of the transfer function are placed to achieve a ripple in the passband.

In an Elliptic low-pass filter, the transfer function can be derived as:

H(s) = 1 / (s^n + a1*s^(n-1) + ... + a(n-1)*s + a(n))

Where n is the order of the filter, and a1, a2, ..., an are the coefficients of the denominator polynomial. The poles of the transfer function are placed to achieve both passband and stopband ripples.

💡 Note: Designing filters with specific poles and zeros involves a good understanding of filter theory and frequency response characteristics. It is important to verify the design using simulation tools and prototyping before implementing it in a real application.

Poles and Zeros in System Identification

In system identification, Poles and Zeros are used to model the dynamic behavior of a system based on input-output data. System identification involves techniques such as parameter estimation, model validation, and model reduction. The poles and zeros of the identified model provide insights into the system's dynamic behavior and can be used to design control systems and filters.

System identification techniques include:

Least Squares Estimation: This technique estimates the parameters of a model by minimizing the sum of squared errors between the model's output and the actual output.
Maximum Likelihood Estimation: This technique estimates the parameters of a model by maximizing the likelihood of the observed data given the model.
Prediction Error Method: This technique estimates the parameters of a model by minimizing the prediction error between the model's output and the actual output.

For example, in least squares estimation, the parameters of a model can be estimated as:

θ = (X^TX)^-1X^Ty

Where θ is the vector of model parameters, X is the matrix of input data, and y is the vector of output data. The
