Po43 Lewis Dot Structure

Understanding the Po43 Lewis Dot Structure is fundamental for anyone studying chemistry, as it provides a visual representation of the valence electrons in a molecule. This structure helps in predicting the molecular geometry, bonding, and reactivity of compounds. In this post, we will delve into the details of the Po43 Lewis Dot Structure, its significance, and how to draw it step-by-step.

Table of Contents

What is the Po43 Lewis Dot Structure?

The Po43 Lewis Dot Structure represents the arrangement of valence electrons in the polyatomic ion PO43-. This ion is commonly known as the phosphate ion and is crucial in biological systems, particularly in the structure of DNA and RNA. The Lewis Dot Structure helps us understand the bonding and electron distribution within the ion, which is essential for comprehending its chemical behavior.

Importance of the Po43 Lewis Dot Structure

The Po43 Lewis Dot Structure is important for several reasons:

It helps in determining the molecular geometry of the phosphate ion.
It aids in understanding the bonding between the phosphorus atom and the oxygen atoms.
It provides insights into the reactivity and stability of the phosphate ion.
It is crucial for predicting the behavior of the phosphate ion in chemical reactions.

Drawing the Po43 Lewis Dot Structure

Drawing the Po43 Lewis Dot Structure involves several steps. Let's go through them one by one:

Step 1: Determine the Total Number of Valence Electrons

The first step is to calculate the total number of valence electrons in the PO43- ion. Phosphorus (P) is in group 15 of the periodic table and has 5 valence electrons. Oxygen (O) is in group 16 and has 6 valence electrons. Since there are four oxygen atoms, the total number of valence electrons from oxygen is 4 * 6 = 24. The ion has a charge of -3, which means there are 3 extra electrons. Therefore, the total number of valence electrons is:

5 (from P) + 24 (from O) + 3 (from the charge) = 32 valence electrons.

Step 2: Identify the Central Atom

In the PO43- ion, phosphorus (P) is the central atom because it is the least electronegative element in the ion.

Step 3: Connect the Central Atom to the Surrounding Atoms

Draw single bonds between the central phosphorus atom and each of the four oxygen atoms. This uses up 4 * 2 = 8 valence electrons, leaving us with 32 - 8 = 24 valence electrons.

Step 4: Distribute the Remaining Valence Electrons

Distribute the remaining 24 valence electrons around the oxygen atoms to complete their octets. Each oxygen atom needs 6 more electrons to complete its octet. This uses up all 24 remaining electrons, with each oxygen atom having 3 lone pairs of electrons.

Step 5: Check for Formal Charges

Calculate the formal charges on each atom to ensure the structure is correct. The formal charge is calculated as:

Formal Charge = (Number of valence electrons in free atom) - (Number of lone pair electrons) - (Number of bonding electrons / 2)

For phosphorus, the formal charge is 5 - 0 - 8/2 = 0.

For each oxygen atom, the formal charge is 6 - 6 - 2/2 = -1.

Since the total formal charge is -3 (which matches the charge of the ion), the structure is correct.

📝 Note: The formal charge calculation is crucial for verifying the correctness of the Lewis Dot Structure.

Molecular Geometry of PO43-

The molecular geometry of the PO43- ion is tetrahedral. This is because the central phosphorus atom is bonded to four oxygen atoms, and the bond angles are approximately 109.5 degrees. The tetrahedral geometry is consistent with the VSEPR (Valence Shell Electron Pair Repulsion) theory, which predicts that the electron pairs around the central atom will repel each other and arrange themselves in a way that minimizes repulsion.

Bonding in PO43-

The bonding in the PO43- ion involves single bonds between the phosphorus atom and each of the oxygen atoms. However, the actual bonding is more complex due to resonance. The phosphate ion can be represented by several resonance structures, where the double bonds are delocalized over the oxygen atoms. This delocalization of electrons contributes to the stability of the ion.

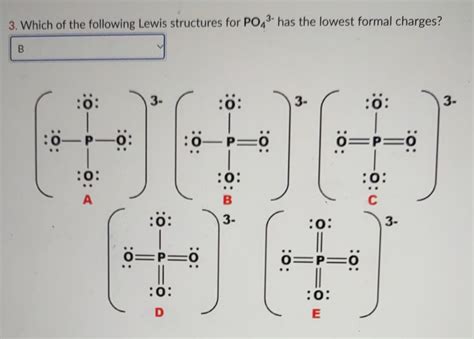

Resonance Structures of PO43-

The PO43- ion has several resonance structures. Each resonance structure shows a different arrangement of double bonds between the phosphorus and oxygen atoms. The actual structure of the ion is a resonance hybrid of these structures, where the double bonds are delocalized over all four oxygen atoms. This delocalization helps to stabilize the ion and distribute the negative charge evenly.

Here is a table showing some of the resonance structures of the PO43- ion:

Resonance Structure	Description
	Double bond between P and one O, single bonds with the other three O atoms.
	Double bond between P and a different O, single bonds with the other three O atoms.
	Double bond between P and yet another O, single bonds with the other three O atoms.
	Double bond between P and the last O, single bonds with the other three O atoms.

📝 Note: The actual structure of the PO43- ion is a resonance hybrid of these structures, with the double bonds delocalized over all four oxygen atoms.

Applications of the Po43 Lewis Dot Structure

The Po43 Lewis Dot Structure has several applications in chemistry and biology:

It helps in understanding the structure and function of biological molecules that contain phosphate groups, such as DNA, RNA, and ATP.
It is used in the study of chemical reactions involving phosphate ions, such as phosphorylation and dephosphorylation reactions.
It aids in the design of drugs and pharmaceuticals that target phosphate-containing enzymes and proteins.
It is essential for the study of environmental chemistry, particularly in understanding the behavior of phosphate ions in water and soil.

The Po43 Lewis Dot Structure is a fundamental concept in chemistry that provides valuable insights into the bonding, geometry, and reactivity of the phosphate ion. By understanding this structure, we can better comprehend the behavior of phosphate-containing compounds in various chemical and biological systems.

In summary, the Po43 Lewis Dot Structure is a crucial tool for chemists and biologists. It helps in predicting the molecular geometry, bonding, and reactivity of the phosphate ion. The structure involves single bonds between the phosphorus and oxygen atoms, with delocalized double bonds due to resonance. The tetrahedral geometry of the ion is consistent with the VSEPR theory, and the delocalization of electrons contributes to its stability. The Po43 Lewis Dot Structure has numerous applications in chemistry and biology, making it an essential concept to understand.
