In the realm of industrial processes, efficiency and cost-effectiveness are paramount. One of the key components that play a crucial role in achieving these goals is the Platular Heat Exchanger. This innovative technology has revolutionized the way heat transfer is managed in various industries, from chemical processing to HVAC systems. Understanding the intricacies of the Platular Heat Exchanger can provide valuable insights into optimizing industrial operations and enhancing overall performance.
What is a Platular Heat Exchanger?
A Platular Heat Exchanger is a type of heat exchanger that utilizes a series of plates to transfer heat between two fluids. Unlike traditional shell and tube heat exchangers, the Platular Heat Exchanger offers several advantages, including higher efficiency, compact design, and easier maintenance. The plates are typically made of materials like stainless steel or titanium, which ensure durability and resistance to corrosion.
How Does a Platular Heat Exchanger Work?
The operation of a Platular Heat Exchanger is based on the principle of conductive heat transfer. The two fluids—one hot and one cold—flow through alternate channels created by the plates. The heat from the hot fluid is transferred to the cold fluid through the plates, which act as a barrier between the two fluids. This process continues until the desired temperature is achieved.
There are several types of Platular Heat Exchangers, each designed for specific applications:
- Gasketed Plate Heat Exchangers: These use gaskets to seal the plates, making them easy to disassemble for cleaning and maintenance.

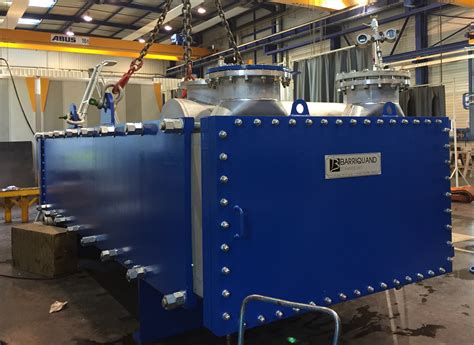

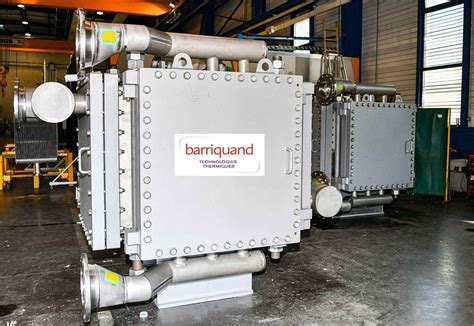

- Welded Plate Heat Exchangers: These have welded plates, providing a more permanent and robust solution suitable for high-pressure applications.
- Brazed Plate Heat Exchangers: These are brazed together, offering excellent thermal performance and durability.
Advantages of Platular Heat Exchangers
The Platular Heat Exchanger offers numerous benefits that make it a preferred choice in many industrial applications:
- High Efficiency: The large surface area provided by the plates ensures efficient heat transfer, reducing energy consumption.
- Compact Design: The compact size of Platular Heat Exchangers makes them ideal for space-constrained environments.
- Easy Maintenance: The modular design allows for easy disassembly and cleaning, minimizing downtime.
- Versatility: Platular Heat Exchangers can handle a wide range of fluids and temperatures, making them suitable for various applications.
- Cost-Effective: The initial investment and operational costs are generally lower compared to other types of heat exchangers.
Applications of Platular Heat Exchangers
The versatility of Platular Heat Exchangers makes them suitable for a wide range of applications across different industries:
- Chemical Processing: Used for heating and cooling processes in chemical plants.
- Food and Beverage: Employed in pasteurization, sterilization, and cooling processes.
- HVAC Systems: Utilized in heating, ventilation, and air conditioning systems for efficient temperature control.
- Pharmaceuticals: Used in the production of medicines and other pharmaceutical products.
- Power Generation: Employed in cooling systems for power plants.
Design Considerations for Platular Heat Exchangers
When selecting a Platular Heat Exchanger, several design considerations must be taken into account to ensure optimal performance:
- Material Selection: Choose materials that are compatible with the fluids being used and resistant to corrosion.
- Plate Configuration: The arrangement of the plates can affect heat transfer efficiency and pressure drop.
- Flow Rate and Temperature: Ensure that the heat exchanger can handle the required flow rates and temperature differences.
- Pressure Requirements: Consider the operating pressure to select the appropriate type of Platular Heat Exchanger (gasketed, welded, or brazed).
Here is a table summarizing the key design considerations:
| Consideration | Importance |
|---|---|
| Material Selection | Ensures compatibility and durability |
| Plate Configuration | Affects heat transfer efficiency |
| Flow Rate and Temperature | Determines operational effectiveness |
| Pressure Requirements | Influences the type of heat exchanger |
🔍 Note: Always consult with a professional engineer to ensure the Platular Heat Exchanger meets the specific requirements of your application.
Maintenance and Troubleshooting
Regular maintenance is crucial for the longevity and efficiency of a Platular Heat Exchanger. Here are some key maintenance tasks and troubleshooting tips:
- Cleaning: Regularly clean the plates to remove any fouling or deposits that can reduce heat transfer efficiency.
- Inspection: Periodically inspect the gaskets, seals, and plates for any signs of wear or damage.
- Pressure Testing: Conduct pressure tests to ensure the integrity of the heat exchanger.
- Flow Rate Monitoring: Monitor the flow rates of the fluids to detect any blockages or leaks.
If you encounter issues such as reduced heat transfer efficiency, leaks, or unusual noises, it may be necessary to:
- Check for fouling or scaling on the plates.
- Inspect the gaskets and seals for leaks.
- Verify the flow rates and pressure differentials.
- Consult the manufacturer's guidelines for specific troubleshooting steps.
🛠️ Note: Always follow safety protocols when performing maintenance or troubleshooting on a Platular Heat Exchanger.
Case Studies: Successful Implementation of Platular Heat Exchangers
Several industries have successfully implemented Platular Heat Exchangers to improve their operations. Here are a few notable case studies:
Chemical Processing Plant: A chemical processing plant replaced their traditional shell and tube heat exchangers with Platular Heat Exchangers. The result was a 20% increase in heat transfer efficiency and a significant reduction in energy costs.
Food and Beverage Industry: A beverage manufacturer used Platular Heat Exchangers in their pasteurization process. The compact design allowed for easier integration into their existing production line, and the high efficiency ensured consistent product quality.
HVAC System: An office building upgraded their HVAC system with Platular Heat Exchangers. The improved heat transfer efficiency led to lower energy consumption and reduced operational costs, making the building more environmentally friendly.
These case studies demonstrate the versatility and effectiveness of Platular Heat Exchangers in various applications, highlighting their potential to enhance operational efficiency and reduce costs.
In conclusion, the Platular Heat Exchanger is a versatile and efficient solution for heat transfer in various industrial applications. Its high efficiency, compact design, and ease of maintenance make it a preferred choice for many industries. By understanding the design considerations, maintenance requirements, and successful implementations, businesses can leverage the benefits of Platular Heat Exchangers to optimize their operations and achieve cost savings. The future of industrial heat transfer looks promising with the continued advancements in Platular Heat Exchanger technology, paving the way for more efficient and sustainable processes.
