In the realm of industrial heat transfer, the Plate Type Heat Exchanger stands out as a highly efficient and versatile solution. These devices are widely used in various industries, including HVAC, food processing, chemical processing, and more. Their design and functionality make them ideal for applications where space is limited and high heat transfer rates are required. This blog post delves into the intricacies of Plate Type Heat Exchangers, exploring their design, advantages, applications, and maintenance requirements.
Understanding Plate Type Heat Exchangers
A Plate Type Heat Exchanger consists of a series of thin, corrugated plates that are stacked together to form a compact unit. The plates are typically made of materials like stainless steel, titanium, or other corrosion-resistant alloys. The design allows for two fluids to flow through alternate channels, separated by the plates, enabling efficient heat transfer between them.
The corrugated design of the plates increases the surface area available for heat transfer, enhancing the overall efficiency of the exchanger. The plates are sealed at the edges to prevent mixing of the two fluids, ensuring that the heat transfer process is isolated and controlled.

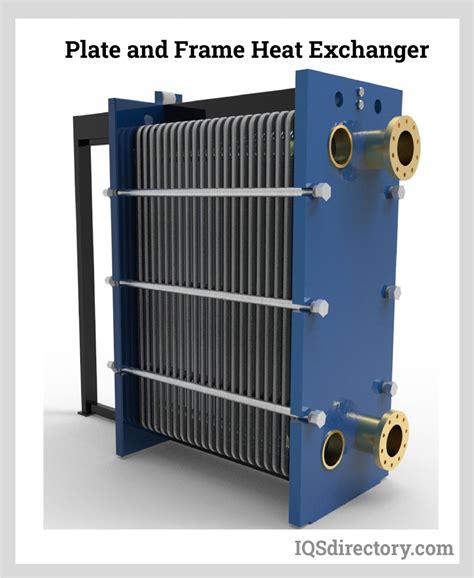

Design and Components

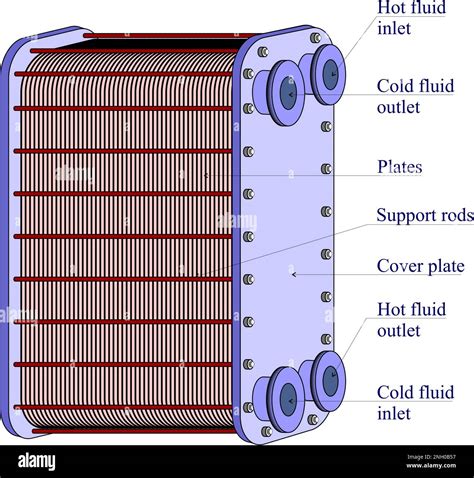

The design of a Plate Type Heat Exchanger is characterized by several key components:
- Plates: These are the core elements of the exchanger, responsible for heat transfer. They are typically made of stainless steel or other corrosion-resistant materials.
- Gaskets: These are used to seal the edges of the plates, preventing leakage and ensuring that the fluids flow through their designated channels.
- Frame: The frame holds the plates together and provides structural support. It also includes ports for fluid inlet and outlet.
- Clamping Mechanism: This ensures that the plates are tightly compressed, maintaining the integrity of the seals and preventing leakage.
The plates are arranged in a way that creates a series of channels for the fluids to flow through. The corrugated design of the plates not only increases the surface area but also creates turbulence, which enhances heat transfer efficiency.
Advantages of Plate Type Heat Exchangers
Plate Type Heat Exchangers offer several advantages over other types of heat exchangers, making them a popular choice in various industries:
- High Efficiency: The large surface area and turbulent flow created by the corrugated plates result in high heat transfer rates.
- Compact Size: The stacked plate design allows for a compact footprint, making them ideal for space-constrained applications.
- Flexibility: The design can be easily modified to accommodate different flow rates and temperature requirements.
- Easy Maintenance: The plates can be easily disassembled for cleaning and maintenance, reducing downtime.
- Cost-Effective: The initial cost and operating costs are generally lower compared to other types of heat exchangers.
These advantages make Plate Type Heat Exchangers a cost-effective and efficient solution for a wide range of applications.
Applications of Plate Type Heat Exchangers
Plate Type Heat Exchangers are used in various industries due to their efficiency and versatility. Some of the key applications include:
- HVAC Systems: Used for heating and cooling applications in buildings and industrial facilities.
- Food and Beverage Industry: Used for pasteurization, sterilization, and cooling of food and beverages.
- Chemical Processing: Used for heating and cooling of chemical reactions and processes.
- Pharmaceutical Industry: Used for heating and cooling of pharmaceutical products and processes.
- Power Generation: Used in cooling systems for power plants and other energy generation facilities.
In each of these applications, the Plate Type Heat Exchanger plays a crucial role in maintaining optimal operating conditions and ensuring efficient heat transfer.
Maintenance and Care
To ensure the longevity and efficiency of a Plate Type Heat Exchanger, regular maintenance is essential. Here are some key maintenance tasks:
- Cleaning: Regular cleaning of the plates is necessary to remove any buildup of deposits that can reduce heat transfer efficiency.
- Inspection: Periodic inspection of the gaskets and seals to ensure they are intact and not leaking.
- Replacement of Parts: Timely replacement of worn-out gaskets, plates, or other components to maintain the exchanger's performance.
- Pressure Testing: Regular pressure testing to ensure the integrity of the seals and the overall structure.
By following a regular maintenance schedule, you can extend the lifespan of your Plate Type Heat Exchanger and ensure it operates at peak efficiency.
🔧 Note: Always refer to the manufacturer's guidelines for specific maintenance procedures and schedules.
Types of Plate Type Heat Exchangers
There are several types of Plate Type Heat Exchangers, each designed for specific applications and operating conditions. Some of the most common types include:

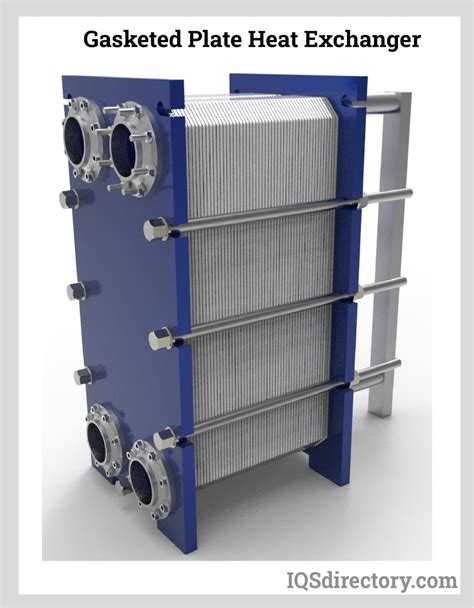

- Gasketed Plate Heat Exchangers: These use gaskets to seal the plates, making them easy to disassemble for cleaning and maintenance.
- Welded Plate Heat Exchangers: The plates are welded together, providing a more robust and leak-proof design suitable for high-pressure applications.
- Brazed Plate Heat Exchangers: The plates are brazed together, offering a compact and efficient design ideal for applications with high heat transfer requirements.
Each type has its own advantages and is suited to different applications based on factors like pressure, temperature, and flow rates.
Selection Criteria for Plate Type Heat Exchangers
Choosing the right Plate Type Heat Exchanger involves considering several factors to ensure it meets your specific needs. Key selection criteria include:
- Flow Rates: The volume of fluid that needs to be heated or cooled.
- Temperature Requirements: The temperature range and differential between the two fluids.
- Pressure Requirements: The operating pressure of the system.
- Material Compatibility: The compatibility of the plate material with the fluids being used.
- Space Constraints: The available space for installation.
- Maintenance Requirements: The ease of cleaning and maintenance.
By carefully considering these factors, you can select a Plate Type Heat Exchanger that optimizes performance and efficiency for your specific application.
Efficiency and Performance
The efficiency of a Plate Type Heat Exchanger is influenced by several factors, including the design of the plates, the flow rates of the fluids, and the temperature differential. The corrugated design of the plates creates turbulence, which enhances heat transfer by increasing the contact area and promoting mixing.
To maximize efficiency, it is important to:
- Optimize Flow Rates: Ensure that the flow rates of the fluids are balanced to maximize heat transfer.
- Maintain Cleanliness: Regular cleaning of the plates to prevent buildup and maintain optimal heat transfer.
- Monitor Performance: Regularly monitor the performance of the exchanger to detect any issues early.
By focusing on these aspects, you can ensure that your Plate Type Heat Exchanger operates at peak efficiency, providing reliable and cost-effective heat transfer.
Cost Considerations
When evaluating the cost of a Plate Type Heat Exchanger, it is important to consider both the initial investment and the long-term operating costs. While the initial cost may be higher compared to some other types of heat exchangers, the long-term benefits often outweigh the upfront expense.
Key cost considerations include:
- Initial Cost: The purchase price of the exchanger, including any additional components or accessories.
- Installation Costs: The cost of installing the exchanger, including labor and any necessary modifications to the existing system.
- Operating Costs: The ongoing costs of operating the exchanger, including energy consumption and maintenance.
- Maintenance Costs: The cost of regular maintenance, including cleaning, inspection, and replacement of parts.
By carefully evaluating these costs, you can make an informed decision that balances initial investment with long-term savings and efficiency.
Environmental Impact
Plate Type Heat Exchangers are not only efficient but also environmentally friendly. Their high heat transfer rates reduce energy consumption, leading to lower greenhouse gas emissions. Additionally, the compact design and ease of maintenance contribute to a smaller environmental footprint.
To further enhance the environmental benefits, consider the following:
- Energy-Efficient Design: Choose a design that maximizes heat transfer efficiency, reducing energy consumption.
- Sustainable Materials: Opt for exchangers made from sustainable and recyclable materials.
- Regular Maintenance: Ensure regular maintenance to keep the exchanger operating at peak efficiency, reducing energy waste.
By focusing on these aspects, you can minimize the environmental impact of your Plate Type Heat Exchanger while maximizing its benefits.
Future Trends in Plate Type Heat Exchangers
The field of heat transfer technology is continually evolving, and Plate Type Heat Exchangers are no exception. Future trends in this area include:
- Advanced Materials: The development of new materials that offer improved corrosion resistance, durability, and heat transfer properties.
- Smart Technology: Integration of smart sensors and IoT technology for real-time monitoring and optimization of performance.
- Enhanced Designs: Innovations in plate design and configuration to further enhance heat transfer efficiency and reduce energy consumption.
- Sustainable Solutions: A focus on developing more sustainable and eco-friendly heat exchangers that minimize environmental impact.
These trends are poised to further enhance the efficiency, reliability, and sustainability of Plate Type Heat Exchangers, making them an even more attractive option for a wide range of applications.
In conclusion, Plate Type Heat Exchangers are a versatile and efficient solution for heat transfer in various industries. Their compact design, high efficiency, and ease of maintenance make them a popular choice for applications where space is limited and high heat transfer rates are required. By understanding the design, advantages, applications, and maintenance requirements of these exchangers, you can make informed decisions that optimize performance and efficiency in your specific application. Whether you are in the HVAC industry, food processing, chemical processing, or any other field, a Plate Type Heat Exchanger can provide reliable and cost-effective heat transfer solutions.
