Building a Ping Pong Ball Launcher can be an exciting and educational project, whether you're a hobbyist, a DIY enthusiast, or a teacher looking for a fun science experiment. This project combines elements of physics, engineering, and creativity, making it a great way to learn and have fun at the same time. In this guide, we'll walk you through the steps to create your own Ping Pong Ball Launcher, from gathering materials to the final launch.
Understanding the Basics of a Ping Pong Ball Launcher
A Ping Pong Ball Launcher is a device designed to propel ping pong balls through the air with force and accuracy. The basic principle behind a Ping Pong Ball Launcher involves storing energy and then releasing it suddenly to launch the ball. There are several types of launchers, including pneumatic, spring-loaded, and catapult-style designs. Each type has its own advantages and complexities, but for beginners, a simple pneumatic launcher is often the best starting point.
Gathering Materials for Your Ping Pong Ball Launcher
Before you start building your Ping Pong Ball Launcher, you’ll need to gather the necessary materials. Here’s a list of items you’ll need for a basic pneumatic launcher:
- PVC pipe (1-inch diameter, 2-3 feet long)
- PVC end caps (two, to fit the PVC pipe)
- PVC T-joint (to fit the PVC pipe)
- PVC elbow joint (to fit the PVC pipe)
- Air compressor or bike pump with a pressure gauge
- Ping pong balls
- Duct tape
- Screwdriver or drill (for making holes)
- Silicone sealant (optional, for better airtight seal)
Building the Ping Pong Ball Launcher
Now that you have all the materials, it’s time to start building your Ping Pong Ball Launcher. Follow these steps to assemble your launcher:
Step 1: Cut the PVC Pipe
Cut the PVC pipe into two sections: one longer section (about 2 feet) and one shorter section (about 6 inches). The longer section will serve as the main barrel of the launcher, while the shorter section will be used to create the air chamber.
Step 2: Attach the End Caps
Attach one end cap to the shorter section of the PVC pipe. This will create the air chamber. Make sure the cap is securely attached to prevent air leaks.
Step 3: Create the Air Chamber
Attach the T-joint to the longer section of the PVC pipe. This will allow you to connect the air chamber to the main barrel. Make sure the T-joint is securely attached and aligned properly.
Step 4: Connect the Air Chamber
Connect the shorter section of the PVC pipe (with the end cap) to one of the open ends of the T-joint. This will create the air chamber that will store the compressed air.
Step 5: Attach the Elbow Joint
Attach the elbow joint to the other open end of the T-joint. This will allow you to connect the air compressor or bike pump to the launcher.
Step 6: Seal the Connections
Use duct tape to seal all the connections between the PVC pipes and joints. This will help prevent air leaks and ensure that the launcher operates efficiently. If you want a more durable seal, you can use silicone sealant instead of duct tape.
Step 7: Prepare the Launching Mechanism
Cut a small hole in the end cap of the longer section of the PVC pipe. This hole should be just large enough to allow a ping pong ball to pass through. You can use a screwdriver or drill to make the hole.
💡 Note: Make sure the hole is smooth and free of burrs to ensure the ping pong ball can pass through easily.
Testing Your Ping Pong Ball Launcher
Once your Ping Pong Ball Launcher is assembled, it’s time to test it out. Follow these steps to launch your first ping pong ball:
Step 1: Load the Ball
Place a ping pong ball in the end of the longer section of the PVC pipe, near the hole you created. Make sure the ball is securely in place and ready to be launched.
Step 2: Connect the Air Source
Connect your air compressor or bike pump to the elbow joint. Make sure the connection is secure and airtight.
Step 3: Pressurize the Chamber
Use the air compressor or bike pump to pressurize the air chamber. The amount of pressure you need will depend on how far you want to launch the ball. Start with a low pressure and gradually increase it until you achieve the desired launch distance.
Step 4: Launch the Ball
Once the air chamber is pressurized, quickly remove the air source from the elbow joint. The sudden release of pressure will propel the ping pong ball through the barrel and out of the launcher.
💡 Note: Be careful when handling pressurized air. Always wear safety glasses and follow proper safety procedures to avoid injury.
Tips for Improving Your Ping Pong Ball Launcher
Once you’ve built and tested your basic Ping Pong Ball Launcher, you might want to experiment with different designs and modifications to improve its performance. Here are some tips to help you enhance your launcher:
- Use a Pressure Gauge: Adding a pressure gauge to your launcher can help you monitor the air pressure more accurately, allowing you to achieve consistent launch distances.
- Adjust the Barrel Length: Experiment with different barrel lengths to see how it affects the launch distance and accuracy. A longer barrel can provide more stability and velocity, while a shorter barrel can be more maneuverable.
- Add a Trigger Mechanism: Instead of manually removing the air source to launch the ball, consider adding a trigger mechanism. This can make the launcher easier to use and more consistent.
- Use a Different Air Source: If you don't have an air compressor, you can use a bike pump or even a CO2 cartridge to pressurize the air chamber. Each air source has its own advantages and limitations, so experiment to find what works best for you.
- Modify the Air Chamber: Changing the size or shape of the air chamber can affect the launch performance. Try using different sizes of PVC pipes or adding multiple chambers to see how it impacts the launch.
Safety Precautions
Building and using a Ping Pong Ball Launcher can be a lot of fun, but it’s important to prioritize safety. Here are some safety precautions to keep in mind:
- Wear Safety Glasses: Always wear safety glasses when handling pressurized air and launching ping pong balls to protect your eyes from debris.
- Use in a Safe Area: Launch your ping pong balls in an open, safe area away from people, animals, and fragile objects. Make sure there are no obstacles in the path of the ball.
- Follow Proper Procedures: Always follow proper safety procedures when handling pressurized air and launching ping pong balls. Never point the launcher at anyone or anything you don't intend to hit.
- Inspect Your Launcher: Regularly inspect your launcher for any signs of wear or damage. Replace any damaged parts immediately to ensure the launcher operates safely.
💡 Note: Always supervise children when they are using or handling the Ping Pong Ball Launcher to ensure their safety.
Exploring Different Types of Ping Pong Ball Launchers
While the basic pneumatic launcher is a great starting point, there are many other types of Ping Pong Ball Launchers you can explore. Each type has its own unique features and advantages. Here are a few examples:
Spring-Loaded Launchers
Spring-loaded launchers use a compressed spring to store energy and launch the ping pong ball. These launchers are typically more compact and portable than pneumatic launchers, making them a good choice for outdoor activities and games.

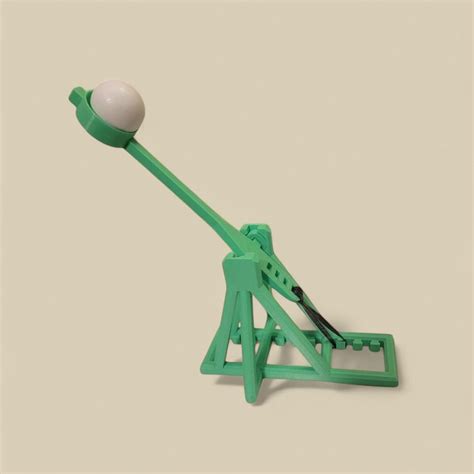

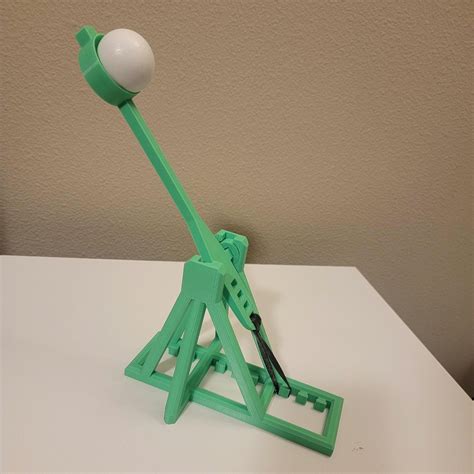

Catapult-Style Launchers
Catapult-style launchers use a lever and counterweight to launch the ping pong ball. These launchers are often more powerful than pneumatic or spring-loaded launchers, making them ideal for long-distance launches. However, they can be more complex to build and require precise engineering.

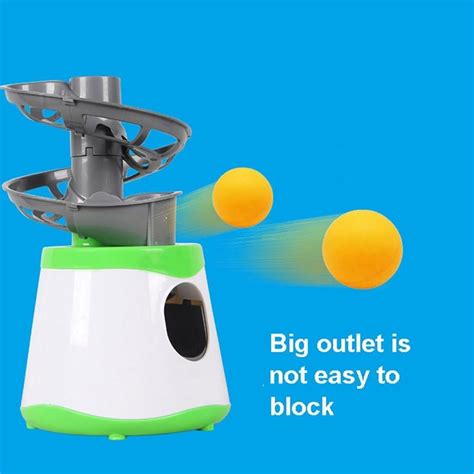

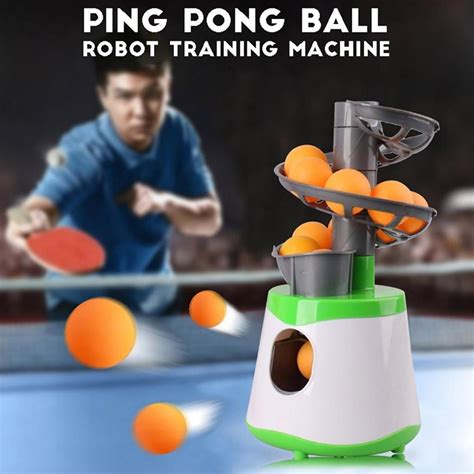

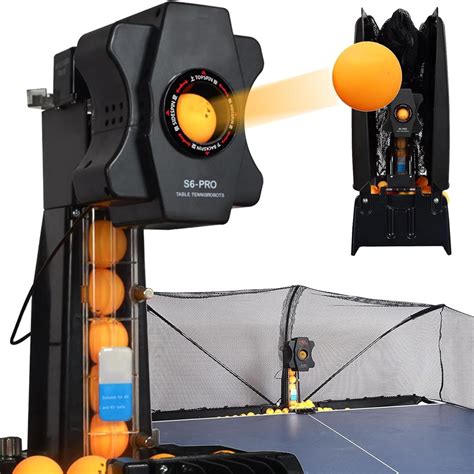

Electronic Launchers
Electronic launchers use motors and electronics to launch the ping pong ball. These launchers can be highly customizable and offer features like adjustable launch angles, speeds, and patterns. However, they require more advanced knowledge of electronics and programming.
Conclusion
Building a Ping Pong Ball Launcher is a rewarding project that combines creativity, engineering, and physics. Whether you’re a beginner or an experienced DIY enthusiast, there’s always room to learn and experiment with different designs and modifications. By following the steps outlined in this guide, you can create your own Ping Pong Ball Launcher and enjoy hours of fun and learning. Always prioritize safety and have fun exploring the world of DIY projects!
