Picture Of Conduction

Understanding the principles of heat transfer is crucial in various fields, from engineering to physics. One of the fundamental modes of heat transfer is conduction, which involves the transfer of heat through direct contact between objects or within a single object. A picture of conduction can help visualize this process, making it easier to grasp the underlying concepts. This blog post will delve into the intricacies of conduction, its applications, and how a picture of conduction can aid in comprehension.

Table of Contents

What is Conduction?

Conduction is the process by which heat is transferred from one part of a substance to another, or from one substance to another, through direct contact. This mode of heat transfer occurs at the molecular level, where faster-moving molecules (those with higher kinetic energy) collide with slower-moving molecules, transferring energy in the process. This continuous collision and energy transfer result in the overall movement of heat from a hotter region to a cooler region.

Factors Affecting Conduction

Several factors influence the rate of heat conduction:

Temperature Difference: The greater the temperature difference between two points, the faster the rate of heat transfer.
Material Properties: Different materials conduct heat at different rates. Metals, for example, are generally good conductors of heat, while materials like wood and plastic are poor conductors.
Cross-Sectional Area: A larger cross-sectional area allows for more heat to be conducted.
Thickness: The thicker the material, the slower the rate of heat transfer.

Mathematical Representation of Conduction

The rate of heat conduction can be mathematically represented using Fourier's Law of Heat Conduction. The formula is:

Q = -kA (ΔT/Δx)

Where:

Q is the rate of heat transfer (in watts).
k is the thermal conductivity of the material (in watts per meter-kelvin).
A is the cross-sectional area (in square meters).
ΔT is the temperature difference (in kelvin).
Δx is the thickness of the material (in meters).

This equation helps in calculating the heat transfer rate through a material under steady-state conditions.

Applications of Conduction

Conduction has numerous applications in various fields:

Cooking: Heat is conducted from the stove to the pot and then to the food.
Electronics: Heat sinks are used to conduct heat away from electronic components to prevent overheating.
Building Insulation: Materials with low thermal conductivity are used to insulate buildings, reducing heat loss in winter and heat gain in summer.
Industrial Processes: Heat exchangers use conduction to transfer heat between fluids.

Visualizing Conduction with a Picture

A picture of conduction can be a powerful tool for understanding this concept. For instance, imagine a metal rod with one end heated. The heat will travel from the hot end to the cooler end through conduction. A visual representation can show the temperature gradient along the rod, with the hottest part at one end and the coolest at the other. This gradient illustrates how heat is transferred from one molecule to another, providing a clear picture of conduction in action.

Here is an example of how a picture of conduction might look:

In this picture of conduction, the heat source is at one end of the rod, and the heat spreads through the rod, demonstrating the process of conduction.

Conduction in Everyday Life

Conduction is not just a theoretical concept; it plays a significant role in our daily lives. Here are a few examples:

Touching a Hot Object: When you touch a hot object, heat is conducted from the object to your hand, causing a sensation of heat or even pain.
Ice Melting in Your Hand: When you hold an ice cube, the heat from your hand is conducted to the ice, causing it to melt.
Cooking on a Stove: The heat from the stove is conducted to the pot, which then heats the food inside.

These everyday examples highlight the importance of understanding conduction and how it affects our interactions with the environment.

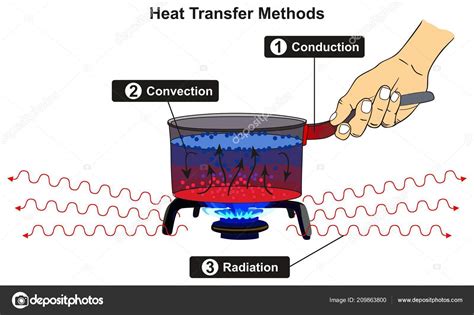

Conduction vs. Other Modes of Heat Transfer

Conduction is one of three primary modes of heat transfer, the others being convection and radiation. Understanding the differences between these modes is essential for various applications.

Mode of Heat Transfer	Description	Examples
Conduction	Heat transfer through direct contact between objects or within a single object.	Touching a hot object, cooking on a stove.
Convection	Heat transfer through the movement of fluids (liquids or gases).	Boiling water, heating a room with a fan.
Radiation	Heat transfer through electromagnetic waves.	Sunlight warming the Earth, a fireplace heating a room.

Each mode of heat transfer has its unique characteristics and applications, and understanding these differences can help in designing efficient systems for heat management.

💡 Note: While conduction is a fundamental mode of heat transfer, it is often combined with convection and radiation in real-world applications to achieve optimal results.

Experimental Demonstration of Conduction

Conduction can be demonstrated through simple experiments. One classic experiment involves using a metal rod and a heat source. Here are the steps:

Take a metal rod and clamp one end securely.
Heat the other end of the rod using a heat source, such as a Bunsen burner.
Observe the temperature changes along the rod using a thermometer or temperature-sensitive strips.
Record the temperature at different points along the rod to visualize the temperature gradient.

This experiment provides a hands-on picture of conduction, allowing you to see how heat travels through the rod and how the temperature changes along its length.

💡 Note: Always use safety precautions when handling heat sources and hot objects to avoid burns or injuries.

Conduction is a fundamental concept in the study of heat transfer, with wide-ranging applications in various fields. Understanding the principles of conduction, its factors, and its applications can help in designing efficient systems for heat management. A picture of conduction can serve as a valuable tool for visualizing this process, making it easier to grasp the underlying concepts. Whether in everyday life or in complex engineering applications, conduction plays a crucial role in how heat is transferred and managed.
