Piccatiny Rail Dimensions

Understanding the intricacies of firearm accessories is crucial for any enthusiast or professional. One of the most fundamental components is the Piccatinny rail, a standardized mounting system widely used in the firearms industry. This system's versatility and reliability make it a staple for attaching various optics, sights, and other accessories. This post delves into the specifics of Piccatinny rail dimensions, their importance, and how they impact the functionality and performance of your firearm.

Table of Contents

What is a Piccatinny Rail?

The Piccatinny rail, often referred to as a MIL-STD-1913 rail, is a standardized mounting system designed for attaching various accessories to firearms. Developed by the U.S. Army’s Picatinny Arsenal, this rail system features a series of slots that allow for the secure attachment of scopes, red dot sights, lasers, and other tactical gear. The Piccatinny rail’s design ensures compatibility across different manufacturers, making it a universal standard in the firearms industry.

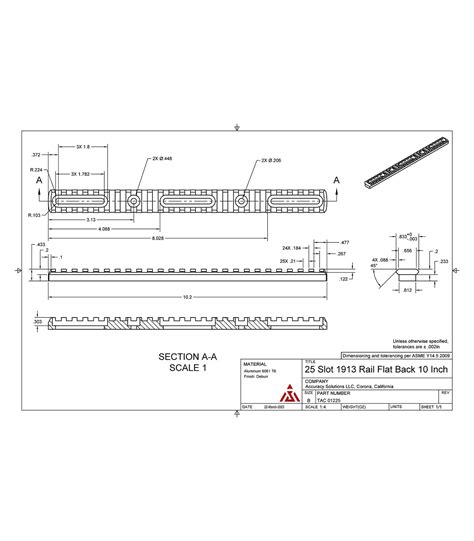

Understanding Piccatinny Rail Dimensions

To fully appreciate the Piccatinny rail, it’s essential to understand its dimensions. The Piccatinny rail is characterized by its specific measurements, which include the width, height, and spacing of the slots. These dimensions are critical for ensuring that accessories fit securely and function correctly.

The standard Piccatinny rail dimensions are as follows:

Dimension	Measurement
Width	0.206 inches (5.23 mm)
Height	0.118 inches (3.00 mm)
Slot Spacing	0.394 inches (10.01 mm)

These dimensions are crucial for the proper alignment and attachment of accessories. The width and height ensure that the rail can accommodate various mounting systems, while the slot spacing allows for precise positioning of accessories along the rail.

Importance of Piccatinny Rail Dimensions

The precise dimensions of the Piccatinny rail are not just technical specifications; they play a vital role in the overall performance and reliability of your firearm. Here are some key reasons why these dimensions are so important:

Compatibility: The standardized dimensions ensure that accessories from different manufacturers can be interchanged without compatibility issues. This means you can easily swap out scopes, sights, and other gear as needed.
Stability: The precise spacing and dimensions of the slots ensure that accessories are securely attached, reducing the risk of movement or detachment during use. This stability is crucial for maintaining accuracy and reliability.
Versatility: The Piccatinny rail's dimensions allow for a wide range of accessories to be mounted, making it a versatile system for various applications, from hunting and target shooting to tactical operations.

These factors combined make the Piccatinny rail a cornerstone of modern firearm accessories, providing a reliable and versatile mounting solution.

Types of Piccatinny Rails

While the Piccatinny rail system is standardized, there are different types of rails designed for specific applications. Understanding these types can help you choose the right rail for your needs.

Full-Length Rails: These rails run the entire length of the firearm's barrel or receiver, providing multiple mounting points for accessories. They are ideal for rifles and shotguns where multiple accessories are needed.

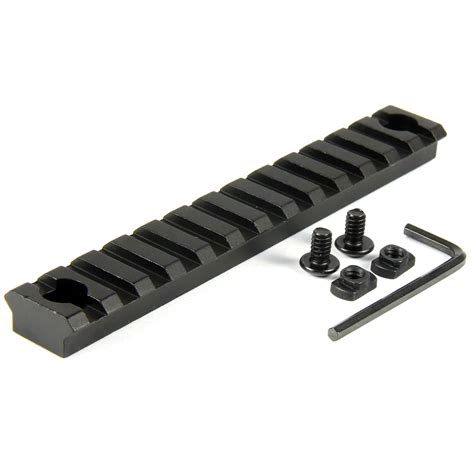

Handguard Rails: These rails are integrated into the handguard of the firearm, providing a mounting surface for accessories like vertical grips, bipods, and lights. They are commonly found on AR-15 and other modern sporting rifles.

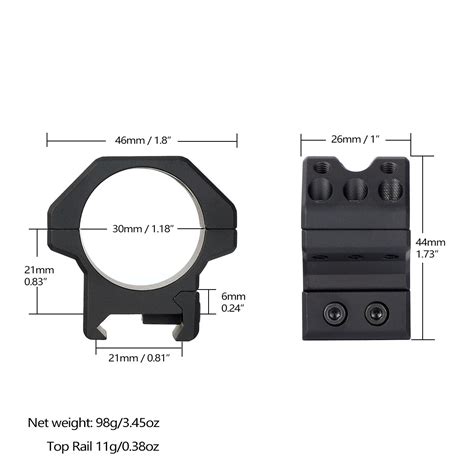

Scope Mounts: These are specialized rails designed specifically for mounting scopes. They often feature additional adjustments for windage and elevation, ensuring precise alignment of the scope.

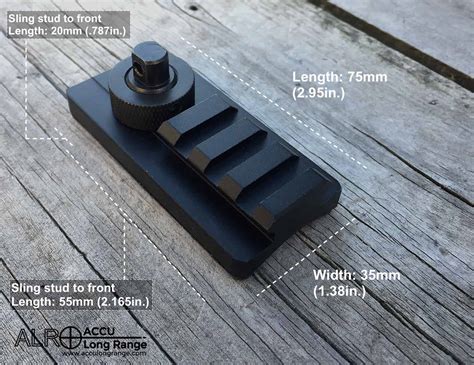

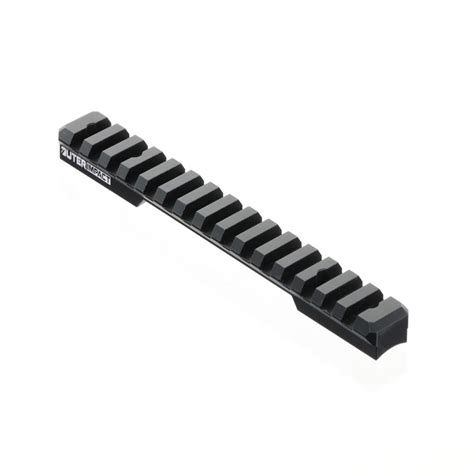

Picatinny Rail Sections: These are shorter sections of the Piccatinny rail that can be attached to various parts of the firearm, such as the receiver or barrel. They are useful for adding mounting points to firearms that do not have a full-length rail.

Each type of Piccatinny rail serves a specific purpose, and choosing the right one depends on your firearm and the accessories you plan to use.

🔍 Note: When selecting a Piccatinny rail, ensure that it is compatible with your firearm's make and model. Consult the manufacturer's specifications to avoid any compatibility issues.

Installing a Piccatinny Rail

Installing a Piccatinny rail is a straightforward process, but it requires careful attention to detail to ensure proper alignment and security. Here are the steps to install a Piccatinny rail:

Prepare Your Tools: Gather the necessary tools, including a screwdriver, Allen wrench, and any mounting hardware that comes with the rail.
Align the Rail: Position the Piccatinny rail on the designated mounting area of your firearm. Ensure that the rail is aligned correctly with the firearm's bore axis.
Secure the Rail: Use the provided mounting hardware to secure the rail to the firearm. Tighten the screws or bolts to the manufacturer's recommended torque specifications.
Check for Alignment: After installation, check the alignment of the rail to ensure it is level and properly secured. Make any necessary adjustments before attaching accessories.

Following these steps will ensure that your Piccatinny rail is installed correctly, providing a stable platform for your accessories.

🛠️ Note: Always refer to the manufacturer's instructions for specific installation guidelines. Improper installation can lead to inaccurate shooting and potential safety issues.

Maintaining Your Piccatinny Rail

Proper maintenance of your Piccatinny rail is essential for ensuring its longevity and performance. Regular cleaning and inspection can help prevent issues and extend the life of your rail. Here are some tips for maintaining your Piccatinny rail:

Clean Regularly: Use a soft brush or cloth to remove dirt, debris, and residue from the rail. Avoid using harsh chemicals that can damage the finish.
Inspect for Damage: Regularly check the rail for signs of wear, corrosion, or damage. Address any issues promptly to prevent further deterioration.
Lubricate Moving Parts: If your rail has moving parts, such as adjustable mounts, apply a small amount of lubricant to ensure smooth operation.
Store Properly: When not in use, store your firearm and Piccatinny rail in a dry, cool place to prevent rust and corrosion.

By following these maintenance tips, you can ensure that your Piccatinny rail remains in optimal condition, providing reliable performance for years to come.

🔧 Note: Always handle your firearm and accessories with care. Follow safety guidelines to prevent accidents and ensure the longevity of your equipment.

Common Issues with Piccatinny Rails

While the Piccatinny rail system is generally reliable, there are some common issues that users may encounter. Understanding these issues can help you troubleshoot and resolve problems quickly.

Misalignment: Improper installation can lead to misalignment of the rail, affecting the accuracy of your firearm. Ensure that the rail is level and properly secured during installation.
Loose Mounts: Over time, the mounting hardware can loosen, causing accessories to shift or detach. Regularly check and tighten the screws or bolts to maintain a secure fit.
Corrosion: Exposure to moisture and environmental elements can cause corrosion on the rail. Regular cleaning and applying a protective coating can help prevent rust and corrosion.
Compatibility Issues: Not all accessories are compatible with every Piccatinny rail. Ensure that your accessories are designed for the Piccatinny rail system and follow the manufacturer's guidelines for installation.

Addressing these common issues promptly can help maintain the performance and reliability of your Piccatinny rail.

🛠️ Note: If you encounter persistent issues with your Piccatinny rail, consult a professional gunsmith for assistance. They can provide expert advice and ensure that your rail is functioning correctly.

Conclusion

The Piccatinny rail is a fundamental component in the world of firearms, offering a standardized and versatile mounting system for a wide range of accessories. Understanding the Piccatinny rail dimensions is crucial for ensuring compatibility, stability, and versatility. Whether you are a seasoned shooter or a newcomer to the world of firearms, knowing the specifics of the Piccatinny rail system can enhance your shooting experience and improve the performance of your firearm. By following proper installation, maintenance, and troubleshooting guidelines, you can ensure that your Piccatinny rail provides reliable service for years to come.
