Oxy Acetylene Welding is a versatile and widely used welding technique that combines oxygen and acetylene gases to produce a high-temperature flame. This method is particularly effective for welding, cutting, and brazing a variety of metals. Whether you are a professional welder or a hobbyist, understanding the fundamentals of Oxy Acetylene Welding can significantly enhance your skills and the quality of your work.
Understanding Oxy Acetylene Welding
Oxy Acetylene Welding, also known as gas welding, involves the combustion of acetylene gas with oxygen to create a flame that can reach temperatures up to 3,500°C (6,332°F). This intense heat is ideal for melting and joining metals. The process is relatively simple and requires basic equipment, making it accessible for both beginners and experienced welders.

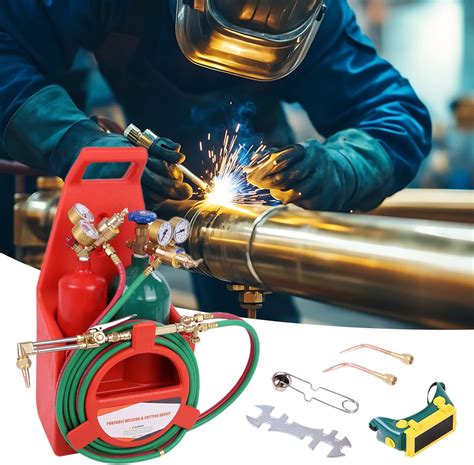

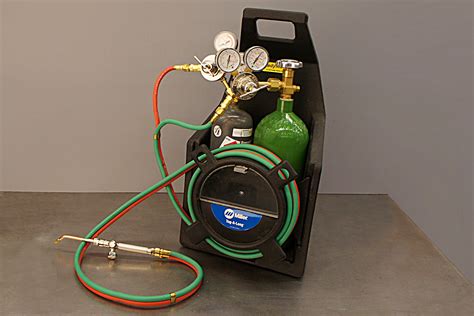

Equipment Required for Oxy Acetylene Welding
To perform Oxy Acetylene Welding, you will need the following essential equipment:
- Welding Torch: This is the tool that mixes and ignites the gases to produce the flame.
- Gas Cylinders: One cylinder contains acetylene, and the other contains oxygen. These cylinders are connected to the torch via hoses.
- Regulators: These devices control the pressure of the gases as they flow from the cylinders to the torch.
- Hoses: Flexible tubes that connect the gas cylinders to the torch.
- Welding Tips: These are interchangeable parts of the torch that determine the size and shape of the flame.
- Safety Equipment: This includes gloves, goggles, and a welding helmet to protect against heat and sparks.

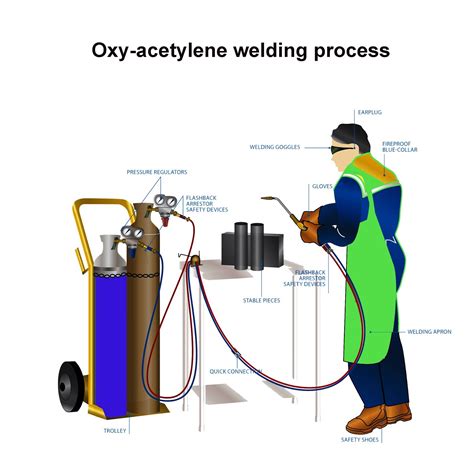

Setting Up Your Oxy Acetylene Welding Station
Before you begin welding, it is crucial to set up your station correctly. Follow these steps to ensure a safe and efficient setup:
- Position the Gas Cylinders: Place the acetylene and oxygen cylinders in an upright position, secured to prevent tipping.
- Attach the Regulators: Connect the regulators to the cylinders and open the cylinder valves slightly to allow the regulators to seat properly.
- Connect the Hoses: Attach the hoses to the regulators and the torch, ensuring that the acetylene hose is clearly marked and connected to the correct regulator.
- Check for Leaks: Apply a soap solution to the connections and look for bubbles, which indicate leaks. Tighten any loose connections as needed.
- Adjust the Gas Flow: Use the regulators to adjust the gas flow to the desired pressure, typically around 5-15 psi for acetylene and 20-30 psi for oxygen.
🔧 Note: Always ensure that your welding area is well-ventilated to prevent the accumulation of fumes.
Lighting the Oxy Acetylene Torch
Lighting the torch is a straightforward process, but it requires careful attention to safety. Follow these steps:
- Open the Acetylene Valve: Slowly open the acetylene valve on the torch until you hear a hissing sound.
- Ignite the Flame: Use a spark lighter or striker to ignite the acetylene. You should see a small, blue flame.
- Adjust the Acetylene Flow: Use the torch's acetylene valve to adjust the flame size to a neutral or slightly reducing flame.
- Open the Oxygen Valve: Gradually open the oxygen valve on the torch. The flame should change color and become brighter and hotter.
- Adjust the Oxygen Flow: Fine-tune the oxygen flow to achieve the desired flame characteristics.
⚠️ Note: Never leave the torch unattended while it is lit. Always turn off the gas valves and close the cylinder valves when finished welding.
Types of Flames in Oxy Acetylene Welding
Understanding the different types of flames is essential for achieving the best results in Oxy Acetylene Welding. The three primary types of flames are:
- Neutral Flame: This flame has equal amounts of acetylene and oxygen, resulting in a balanced flame that is neither oxidizing nor reducing. It is suitable for welding most metals.
- Oxidizing Flame: This flame has an excess of oxygen, making it hotter and more suitable for welding metals like brass and bronze. However, it can cause oxidation and discoloration on some metals.
- Reducing Flame: This flame has an excess of acetylene, making it cooler and more suitable for welding metals like aluminum and stainless steel. It helps to prevent oxidation.
Welding Techniques
Mastering various welding techniques can help you achieve high-quality welds. Here are some common techniques used in Oxy Acetylene Welding:
- Forehand Welding: In this technique, the torch is held in the direction of travel, and the filler rod is added ahead of the flame. It is suitable for welding thin materials.
- Backhand Welding: The torch is held in the opposite direction of travel, and the filler rod is added behind the flame. This technique is ideal for welding thicker materials.
- Circle Welding: This technique involves welding in a circular motion, which is useful for welding pipes and round objects.
- Weave Welding: The torch is moved in a weaving motion to distribute the heat evenly across the weld area. This technique is suitable for welding larger surfaces.
Safety Precautions
Safety is paramount when performing Oxy Acetylene Welding. Always follow these precautions to ensure a safe working environment:
- Protective Gear: Wear appropriate protective gear, including gloves, goggles, and a welding helmet.
- Ventilation: Work in a well-ventilated area to prevent the accumulation of fumes.
- Fire Safety: Keep a fire extinguisher nearby and ensure that flammable materials are kept away from the welding area.
- Gas Handling: Handle gas cylinders with care and store them in a secure, upright position.
- Emergency Procedures: Know the emergency procedures in case of a gas leak or fire.
Common Applications of Oxy Acetylene Welding
Oxy Acetylene Welding is used in a variety of applications across different industries. Some of the most common applications include:
- Automotive Repair: Welding and cutting metal parts in vehicles.
- Plumbing: Joining and repairing pipes and fittings.
- Metal Fabrication: Creating and repairing metal structures and components.
- Art and Sculpture: Welding and shaping metal for artistic purposes.
- Maintenance and Repair: Fixing and maintaining equipment and machinery.
Troubleshooting Common Issues
Even with proper setup and technique, issues can arise during Oxy Acetylene Welding. Here are some common problems and their solutions:
| Problem | Solution |
|---|---|
| Flame is too small or weak | Check for leaks in the hoses and connections. Adjust the gas flow on the regulators. |
| Flame is unstable or flickering | Ensure that the gas cylinders are secure and that there is no draft in the welding area. Check for leaks. |
| Weld is porous or has inclusions | Clean the metal surface thoroughly before welding. Ensure that the flame is properly adjusted. |
| Weld is too hot or too cold | Adjust the gas flow to achieve the desired flame temperature. Use the appropriate welding technique for the material. |
🛠️ Note: Regular maintenance of your welding equipment can help prevent many common issues.
Oxy Acetylene Welding is a versatile and effective method for joining and cutting metals. By understanding the fundamentals, setting up your equipment correctly, and following safety precautions, you can achieve high-quality welds and expand your welding skills. Whether you are a professional or a hobbyist, mastering Oxy Acetylene Welding can open up a world of possibilities in metalworking.
