Outlet Wiring Diagram

Understanding the intricacies of electrical wiring is crucial for anyone involved in home improvement or electrical work. One of the most fundamental aspects of electrical wiring is the Outlet Wiring Diagram. This diagram serves as a blueprint for connecting electrical outlets safely and efficiently. Whether you are a DIY enthusiast or a professional electrician, having a clear understanding of an Outlet Wiring Diagram can save you time and prevent potential hazards.

Table of Contents

What is an Outlet Wiring Diagram?

An Outlet Wiring Diagram is a visual representation that illustrates how to wire an electrical outlet correctly. It shows the connections between the wires and the outlet, ensuring that the power flows safely from the circuit breaker to the outlet and then to the devices plugged into it. The diagram typically includes:

The type of outlet (e.g., standard, GFCI, AFCI).
The color-coding of the wires (e.g., black for hot, white for neutral, green or bare for ground).
The sequence of connections.
Any additional components like switches or junction boxes.

Types of Electrical Outlets

Before diving into the Outlet Wiring Diagram, it’s essential to understand the different types of electrical outlets commonly used in residential settings:

Standard Outlets: These are the most common outlets found in homes, typically rated for 15 or 20 amps.
GFCI Outlets: Ground Fault Circuit Interrupter outlets are designed to protect against electrical shocks, commonly found in bathrooms, kitchens, and outdoor areas.
AFCI Outlets: Arc Fault Circuit Interrupter outlets protect against electrical fires caused by arcing faults, often required in bedrooms and living rooms.
USB Outlets: These outlets include USB ports for charging devices directly.

Reading an Outlet Wiring Diagram

Reading an Outlet Wiring Diagram involves understanding the symbols and labels used. Here are the key components you’ll encounter:

Wires: Typically represented by lines with color codes (black, white, green/bare).
Outlet: Shown as a rectangular box with terminals for wire connections.
Switches: If included, switches are shown as toggle symbols.
Junction Boxes: Represented as boxes where wires are spliced.

Step-by-Step Guide to Wiring an Outlet

Wiring an outlet involves several steps. Here’s a detailed guide to help you through the process:

Materials Needed

Electrical outlet
Wire stripper
Screwdriver
Wire nuts
Electrical tape
Non-contact voltage tester

Safety Precautions

Before you begin, ensure you follow these safety precautions:

Turn off the power at the circuit breaker.
Use a non-contact voltage tester to confirm the power is off.
Wear safety glasses and gloves.

Step 1: Prepare the Wires

Strip about ½ inch of insulation from the ends of the black (hot), white (neutral), and green or bare (ground) wires using a wire stripper.

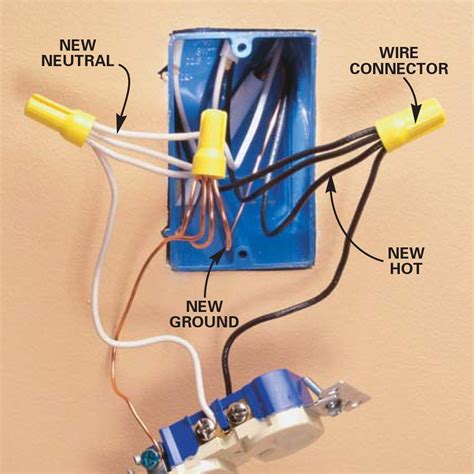

Step 2: Connect the Wires

Follow the Outlet Wiring Diagram to connect the wires to the outlet:

Connect the black wire to the brass screw terminal.
Connect the white wire to the silver screw terminal.
Connect the green or bare wire to the green screw terminal.

Step 3: Secure the Wires

Tighten the screw terminals securely to ensure a good connection. Wrap any exposed wires with electrical tape for added safety.

Step 4: Install the Outlet

Place the outlet into the junction box and secure it with screws. Ensure the outlet is flush with the wall.

Step 5: Test the Outlet

Turn the power back on at the circuit breaker and test the outlet with a voltage tester or a plug-in device to ensure it is working correctly.

🔧 Note: Always double-check your connections and ensure the power is off before handling any wires.

Common Mistakes to Avoid

Wiring an outlet can be straightforward, but there are common mistakes that can lead to hazards:

Not turning off the power before starting.
Incorrect wire connections (e.g., connecting the neutral wire to the hot terminal).
Loose connections that can cause overheating.
Not using wire nuts or electrical tape to secure connections.

Troubleshooting Tips

If your outlet is not working, here are some troubleshooting tips:

Check the circuit breaker to ensure it hasn’t tripped.
Use a non-contact voltage tester to verify power at the outlet.
Inspect the wiring for any loose or damaged connections.
Ensure the outlet is properly seated in the junction box.

Advanced Wiring: GFCI and AFCI Outlets

GFCI and AFCI outlets require additional steps and considerations. Here’s a brief overview:

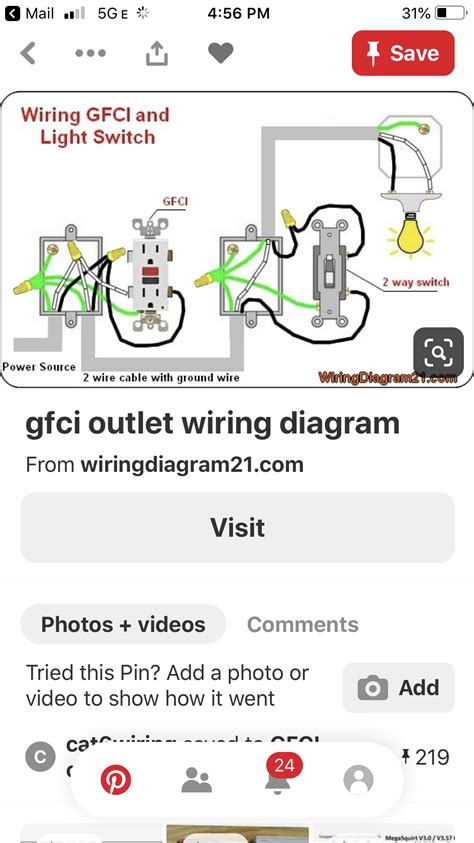

GFCI Outlets

GFCI outlets have additional terminals for load connections, allowing them to protect downstream outlets. Follow these steps:

Connect the line wires (hot and neutral) to the line terminals.
Connect the load wires (hot and neutral) to the load terminals.
Connect the ground wire to the ground terminal.

AFCI Outlets

AFCI outlets are designed to detect arc faults and trip the circuit to prevent fires. The wiring process is similar to standard outlets, but ensure you follow the manufacturer’s instructions for proper installation.

Conclusion

Understanding and correctly following an Outlet Wiring Diagram is essential for safe and efficient electrical work. Whether you are installing a standard outlet, a GFCI outlet, or an AFCI outlet, the key is to follow the diagram carefully and ensure all connections are secure. Always prioritize safety by turning off the power and using the appropriate tools. With the right knowledge and precautions, you can confidently wire electrical outlets in your home.
