The Organic Rankine Cycle (ORC) is a cutting-edge technology that has gained significant attention in the realm of renewable energy and waste heat recovery. This thermodynamic cycle is designed to convert heat into mechanical work, which can then be used to generate electricity. Unlike traditional Rankine cycles that use water as the working fluid, the ORC employs organic fluids with lower boiling points, making it highly efficient for low-temperature heat sources. This makes the ORC particularly suitable for applications such as geothermal energy, solar thermal energy, and industrial waste heat recovery.
Understanding the Organic Rankine Cycle
The Organic Rankine Cycle operates on the same principles as the traditional Rankine cycle but with a key difference: the use of organic fluids. These fluids have lower boiling points and higher molecular masses, which allows the cycle to operate efficiently at lower temperatures. The basic components of an ORC system include a pump, an evaporator, a turbine, and a condenser.

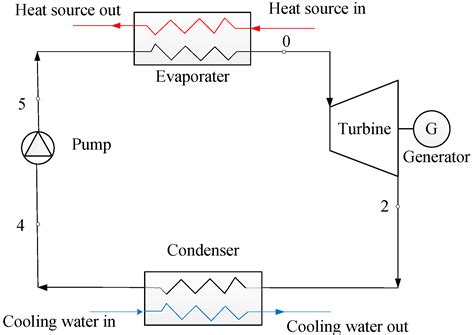

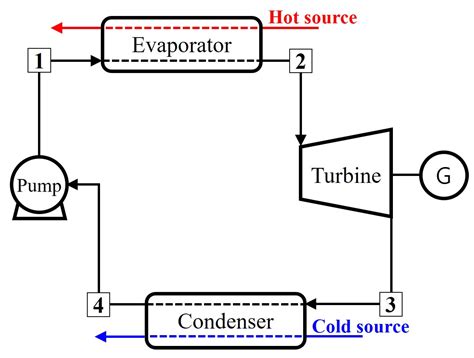

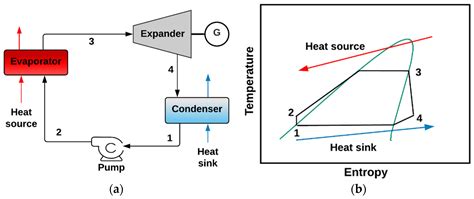

The cycle begins with the pump, which increases the pressure of the organic fluid. The high-pressure fluid then enters the evaporator, where it absorbs heat from an external source, causing it to vaporize. The vaporized fluid is then directed to the turbine, where it expands and drives the turbine to produce mechanical work. This mechanical work can be converted into electrical energy using a generator. Finally, the exhaust vapor from the turbine is condensed back into a liquid in the condenser, and the cycle repeats.
Applications of the Organic Rankine Cycle
The versatility of the Organic Rankine Cycle makes it applicable in various industries and energy sectors. Some of the most prominent applications include:
- Geothermal Energy: ORC systems are highly effective in harnessing geothermal energy, which is heat derived from the Earth's interior. The low-temperature heat sources typical of geothermal reservoirs are well-suited to the ORC's operating conditions.
- Solar Thermal Energy: Solar thermal power plants use concentrated solar energy to heat a working fluid. The ORC can efficiently convert this heat into electricity, making it a valuable component in solar thermal systems.
- Industrial Waste Heat Recovery: Many industrial processes generate significant amounts of waste heat. The ORC can capture this heat and convert it into useful energy, improving overall energy efficiency and reducing operational costs.
- Biomass Energy: Biomass combustion produces heat that can be utilized by ORC systems to generate electricity. This makes the ORC a viable option for biomass power plants.
Advantages of the Organic Rankine Cycle
The Organic Rankine Cycle offers several advantages that make it a compelling choice for various energy applications:
- Efficiency at Low Temperatures: The use of organic fluids allows the ORC to operate efficiently at lower temperatures, making it suitable for low-grade heat sources.
- Environmentally Friendly: ORC systems can utilize renewable energy sources and reduce greenhouse gas emissions by capturing and utilizing waste heat.
- Versatility: The ORC can be adapted to a wide range of heat sources and applications, from geothermal and solar thermal energy to industrial waste heat recovery.
- Cost-Effective: By improving energy efficiency and reducing operational costs, ORC systems can provide significant economic benefits.
Components of an Organic Rankine Cycle System
An ORC system consists of several key components, each playing a crucial role in the conversion of heat into mechanical work:
- Pump: The pump increases the pressure of the organic fluid, preparing it for the evaporation process.
- Evaporator: The evaporator absorbs heat from an external source, causing the organic fluid to vaporize.
- Turbine: The turbine expands the vaporized fluid, converting its thermal energy into mechanical work.
- Condenser: The condenser cools and condenses the exhaust vapor back into a liquid, ready to be pumped back into the cycle.
Additionally, some ORC systems may include a regenerator, which captures heat from the exhaust vapor and uses it to preheat the liquid before it enters the evaporator. This further improves the overall efficiency of the system.
Types of Organic Fluids Used in ORC Systems
The choice of organic fluid is critical to the performance of an ORC system. Different fluids have varying properties that make them suitable for specific applications. Some commonly used organic fluids include:
| Fluid | Boiling Point (°C) | Molecular Mass (g/mol) | Applications |
|---|---|---|---|
| R134a | -26.1 | 102.03 | Geothermal, waste heat recovery |
| R245fa | 15.3 | 134.05 | Solar thermal, waste heat recovery |
| Toluene | 110.6 | 92.14 | Geothermal, biomass |
| n-Pentane | 36.1 | 72.15 | Waste heat recovery, biomass |
Each of these fluids has its own advantages and disadvantages, and the selection depends on factors such as the temperature of the heat source, the desired efficiency, and environmental considerations.
🔍 Note: The choice of organic fluid can significantly impact the efficiency and cost-effectiveness of an ORC system. It is essential to conduct thorough research and analysis to select the most suitable fluid for a specific application.
Design Considerations for ORC Systems
Designing an efficient ORC system involves several key considerations to ensure optimal performance and cost-effectiveness:
- Heat Source Characteristics: Understanding the temperature and flow rate of the heat source is crucial for selecting the appropriate organic fluid and designing the evaporator.
- Turbine Selection: The turbine must be designed to handle the specific properties of the organic fluid and the desired power output. This includes considerations such as turbine size, speed, and efficiency.
- Condenser Design: The condenser must effectively cool and condense the exhaust vapor. Factors such as cooling medium, heat transfer area, and pressure drop need to be carefully considered.
- Regenerator Integration: Incorporating a regenerator can enhance the system's efficiency by preheating the liquid before it enters the evaporator. The design of the regenerator must be optimized for maximum heat recovery.
Additionally, the overall system layout and integration with other components, such as pumps and generators, must be carefully planned to ensure smooth operation and minimal energy losses.
🔍 Note: Proper design and optimization of ORC systems can significantly improve their efficiency and economic viability. It is essential to conduct detailed simulations and analyses to identify the best design parameters.
Challenges and Future Directions
While the Organic Rankine Cycle offers numerous benefits, there are also challenges that need to be addressed to further enhance its adoption and effectiveness:
- Material Compatibility: Some organic fluids can be corrosive or reactive with certain materials, requiring the use of specialized components that can increase costs.
- Efficiency Improvements: Continued research and development are needed to improve the efficiency of ORC systems, particularly for low-temperature heat sources.
- Cost Reduction: Reducing the capital and operational costs of ORC systems is crucial for their widespread adoption. This includes advancements in manufacturing technologies and material science.
- Environmental Impact: Ensuring that the organic fluids used in ORC systems are environmentally friendly and do not contribute to pollution or greenhouse gas emissions is essential.
Future directions in ORC technology include the development of advanced materials, improved turbine designs, and the integration of ORC systems with other renewable energy sources. Additionally, research into new organic fluids with better thermodynamic properties and lower environmental impact is ongoing.
In conclusion, the Organic Rankine Cycle represents a promising technology for harnessing low-temperature heat sources and improving energy efficiency. Its versatility, environmental benefits, and cost-effectiveness make it a valuable tool in the quest for sustainable energy solutions. As research and development continue, the ORC is poised to play an increasingly important role in the global energy landscape, contributing to a more sustainable and efficient future.
