Ohm's Law Practice Problems

Understanding the fundamentals of electricity is crucial for anyone delving into electronics or electrical engineering. One of the cornerstones of this knowledge is Ohm's Law, a fundamental principle that describes the relationship between voltage, current, and resistance in an electrical circuit. This law is not just a theoretical concept but a practical tool that engineers and hobbyists use daily. To truly grasp Ohm's Law Practice Problems, it's essential to dive into its applications and solve various problems that illustrate its principles.

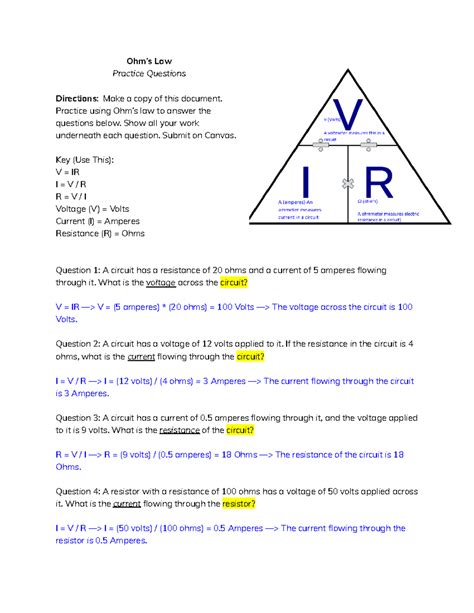

Understanding Ohm’s Law

Ohm’s Law states that the current (I) flowing through a conductor between two points is directly proportional to the voltage (V) across the two points and inversely proportional to the resistance ®. Mathematically, this is expressed as:

V = IR

Where:

• V is the voltage measured in volts (V)
• I is the current measured in amperes (A)
• R is the resistance measured in ohms (Ω)

This simple equation forms the basis for a wide range of electrical calculations and is the foundation for more complex electrical theories.

The Importance of Ohm’s Law Practice Problems

Practicing Ohm’s Law Practice Problems is essential for several reasons:

• Conceptual Clarity: Solving problems helps reinforce the understanding of the relationship between voltage, current, and resistance.
• Practical Application: Real-world electrical circuits often require quick calculations to ensure safety and efficiency.
• Problem-Solving Skills: Regular practice enhances analytical and problem-solving skills, which are crucial in electrical engineering.

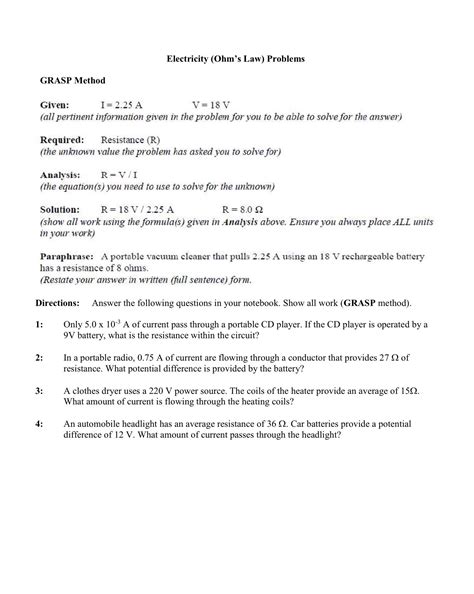

Basic Ohm’s Law Practice Problems

Let’s start with some basic problems to get a feel for how Ohm’s Law is applied.

Problem 1: Finding Current

If a circuit has a voltage of 12 volts and a resistance of 6 ohms, what is the current flowing through the circuit?

Using Ohm’s Law:

V = IR

Rearrange the formula to solve for current (I):

I = V / R

Substitute the given values:

I = 12V / 6Ω = 2A

So, the current flowing through the circuit is 2 amperes.

Problem 2: Finding Resistance

If a circuit has a voltage of 9 volts and a current of 3 amperes, what is the resistance?

Using Ohm’s Law:

V = IR

Rearrange the formula to solve for resistance ®:

R = V / I

Substitute the given values:

R = 9V / 3A = 3Ω

So, the resistance in the circuit is 3 ohms.

Problem 3: Finding Voltage

If a circuit has a current of 5 amperes and a resistance of 10 ohms, what is the voltage?

Using Ohm’s Law:

V = IR

Substitute the given values:

V = 5A * 10Ω = 50V

So, the voltage across the circuit is 50 volts.

💡 Note: Always ensure that the units are consistent when performing calculations. For example, voltage should be in volts, current in amperes, and resistance in ohms.

Advanced Ohm’s Law Practice Problems

Once you are comfortable with the basics, you can move on to more complex problems that involve series and parallel circuits.

Problem 4: Series Circuit

In a series circuit, the total resistance is the sum of the individual resistances. If you have three resistors with values of 2Ω, 4Ω, and 6Ω connected in series, what is the total resistance?

Total resistance (R_total) in a series circuit is given by:

R_total = R1 + R2 + R3

Substitute the given values:

R_total = 2Ω + 4Ω + 6Ω = 12Ω

So, the total resistance in the series circuit is 12 ohms.

Problem 5: Parallel Circuit

In a parallel circuit, the total resistance is found using the reciprocal of the sum of the reciprocals of the individual resistances. If you have three resistors with values of 3Ω, 6Ω, and 12Ω connected in parallel, what is the total resistance?

Total resistance (R_total) in a parallel circuit is given by:

1/R_total = 1/R1 + 1/R2 + 1/R3

Substitute the given values:

1/R_total = 1/3Ω + 1/6Ω + 1/12Ω

Calculate the sum:

1/R_total = ⁴⁄₁₂ + ²⁄₁₂ + ¹⁄₁₂ = ⁷⁄₁₂

So, the total resistance is:

R_total = ¹²⁄₇ Ω ≈ 1.71Ω

So, the total resistance in the parallel circuit is approximately 1.71 ohms.

Practical Applications of Ohm’s Law

Ohm’s Law is not just a theoretical concept; it has numerous practical applications in everyday life and industry. Here are a few examples:

Electrical Safety

Understanding Ohm’s Law is crucial for ensuring electrical safety. For instance, knowing the current flowing through a circuit can help prevent overheating and potential fires. By calculating the resistance and voltage, you can determine the safe operating conditions for electrical devices.

Electronic Design

In electronic design, Ohm’s Law is used to calculate the values of resistors needed to control current flow in circuits. This is essential for designing circuits that function correctly and efficiently.

Power Calculations

Power (P) in an electrical circuit is given by the formula:

P = VI

Where V is voltage and I is current. Using Ohm’s Law, you can calculate the power dissipated in a resistor:

P = I²R

Or:

P = V²/R

These formulas are essential for designing circuits that require specific power outputs.

Common Mistakes in Ohm’s Law Practice Problems

While practicing Ohm’s Law Practice Problems, it’s easy to make mistakes. Here are some common pitfalls to avoid:

• Incorrect Units: Ensure that all units are consistent. Mixing volts with amperes or ohms can lead to incorrect calculations.
• Misinterpretation of Circuit Configuration: Understand whether the circuit is in series or parallel, as the calculations differ.
• Forgetting to Convert Units: Sometimes, values may need to be converted from one unit to another (e.g., milliamperes to amperes).

💡 Note: Double-check your calculations and ensure that the units are consistent throughout the problem.

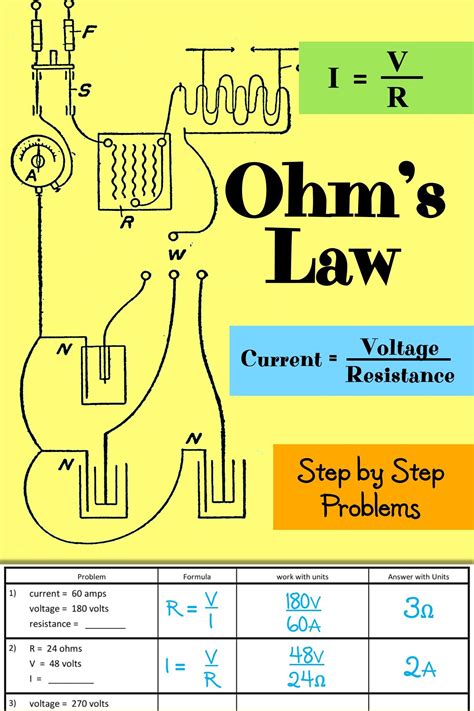

Solving Ohm’s Law Practice Problems Step-by-Step

To solve Ohm’s Law Practice Problems effectively, follow these steps:

Step 1: Identify the Given Values

Clearly identify the values provided in the problem. These could be voltage, current, or resistance.

Step 2: Determine the Unknown

Identify what you need to find—voltage, current, or resistance.

Step 3: Apply Ohm’s Law

Use the appropriate form of Ohm’s Law to solve for the unknown value.

Step 4: Verify the Units

Ensure that all units are consistent and correct.

Step 5: Calculate the Result

Perform the calculation and box the final answer.

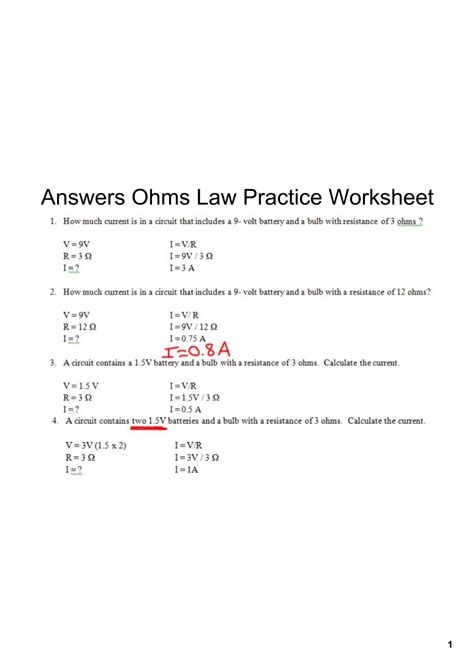

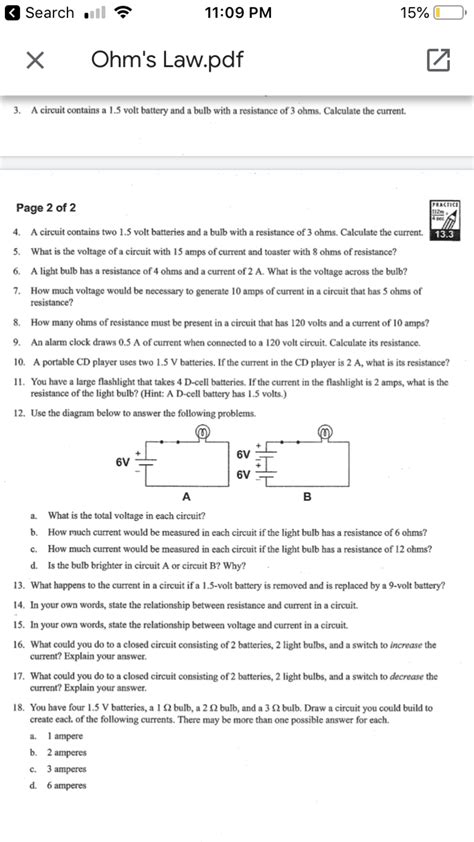

Example Problems with Solutions

Let’s go through a few example problems to solidify your understanding.

Example 1: Finding Voltage

If a circuit has a current of 4 amperes and a resistance of 8 ohms, what is the voltage?

Using Ohm’s Law:

V = IR

Substitute the given values:

V = 4A * 8Ω = 32V

So, the voltage across the circuit is 32 volts.

Example 2: Finding Resistance in a Series Circuit

If you have three resistors with values of 5Ω, 10Ω, and 15Ω connected in series, what is the total resistance?

Total resistance (R_total) in a series circuit is given by:

R_total = R1 + R2 + R3

Substitute the given values:

R_total = 5Ω + 10Ω + 15Ω = 30Ω

So, the total resistance in the series circuit is 30 ohms.

Example 3: Finding Current in a Parallel Circuit

If you have three resistors with values of 4Ω, 8Ω, and 12Ω connected in parallel and the total voltage across the circuit is 24 volts, what is the total current?

First, find the total resistance (R_total) in the parallel circuit:

1/R_total = 1/4Ω + 1/8Ω + 1/12Ω

Calculate the sum:

1/R_total = ³⁄₁₂ + 1.⁵⁄₁₂ + ¹⁄₁₂ = 5.⁵⁄₁₂

So, the total resistance is:

R_total = ¹²⁄₅.5 Ω ≈ 2.18Ω

Now, use Ohm’s Law to find the total current (I_total):

I_total = V / R_total

Substitute the given values:

I_total = 24V / 2.18Ω ≈ 11A

So, the total current in the parallel circuit is approximately 11 amperes.

💡 Note: Always double-check your calculations to ensure accuracy.

Conclusion

Mastering Ohm’s Law Practice Problems is a fundamental step in understanding electricity and electronics. By solving a variety of problems, from basic to advanced, you can gain a deep understanding of how voltage, current, and resistance interact in electrical circuits. This knowledge is not only theoretical but also practical, enabling you to design, troubleshoot, and optimize electrical systems effectively. Whether you are a student, hobbyist, or professional, practicing Ohm’s Law Practice Problems will enhance your skills and confidence in working with electrical circuits.
