Microscopes have revolutionized the way we perceive the world, allowing us to explore the intricate details of objects that are otherwise invisible to the naked eye. Among the various types of microscopes available, the ocular eyepiece microscope stands out as a fundamental tool in scientific research, education, and industrial applications. This blog post delves into the intricacies of the ocular eyepiece microscope, its components, types, and applications, providing a comprehensive guide for both beginners and experienced users.
Understanding the Ocular Eyepiece Microscope
The ocular eyepiece microscope, often simply referred to as a compound microscope, is a versatile instrument that combines multiple lenses to magnify objects. The term "ocular eyepiece" specifically refers to the lens closest to the eye, which is crucial for focusing and magnifying the image produced by the objective lens. This type of microscope is widely used in laboratories, classrooms, and research facilities due to its ability to provide high magnification and resolution.
Components of an Ocular Eyepiece Microscope
An ocular eyepiece microscope consists of several key components, each playing a vital role in its functionality. Understanding these components is essential for effective use and maintenance of the microscope.
- Eyepiece (Ocular Lens): This is the lens at the top of the microscope that you look through. It typically has a magnification power of 10x or 15x.
- Objective Lenses: These are the lenses closest to the specimen and come in various magnification powers, usually ranging from 4x to 100x.
- Stage: The flat platform where the specimen is placed for viewing. It often has clips to hold the slide in place.
- Illuminator: A light source, usually a bulb or LED, that provides illumination for viewing the specimen.
- Diaphragm or Iris: A rotating disk under the stage that controls the amount of light reaching the specimen.
- Coarse and Fine Adjustment Knobs: These knobs are used to focus the microscope. The coarse adjustment knob moves the stage up and down for initial focusing, while the fine adjustment knob makes precise adjustments.
- Arm: The part of the microscope that connects the base to the tube and is used to carry the microscope.
- Base: The bottom part of the microscope that provides stability and support.
Types of Ocular Eyepiece Microscopes
Ocular eyepiece microscopes come in various types, each designed for specific applications. The choice of microscope depends on the required magnification, resolution, and the type of specimen being observed.

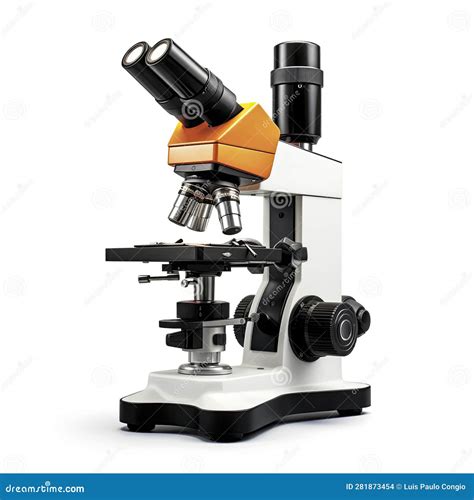

- Compound Microscope: This is the most common type of ocular eyepiece microscope, used for viewing small specimens at high magnifications. It typically has two or more objective lenses and an eyepiece.
- Stereo Microscope: Also known as a dissecting microscope, this type provides a three-dimensional view of the specimen. It is often used for examining larger specimens and for tasks that require depth perception.
- Inverted Microscope: In this type, the light source and condenser are above the stage, and the objective lenses are below. It is commonly used for observing live cells in culture.
- Phase-Contrast Microscope: This microscope uses phase contrast to enhance the contrast of transparent specimens, making it ideal for viewing living cells and microorganisms.
- Fluorescence Microscope: This type uses fluorescent dyes to highlight specific structures within a specimen, making it useful for biological research and medical diagnostics.
Applications of Ocular Eyepiece Microscopes
The versatility of the ocular eyepiece microscope makes it indispensable in various fields. Here are some of the key applications:
- Biological Research: Microscopes are used to study cells, tissues, and microorganisms, aiding in the understanding of biological processes and diseases.
- Medical Diagnostics: In clinical settings, microscopes are essential for examining blood samples, tissue biopsies, and other specimens to diagnose diseases.
- Education: Microscopes are fundamental tools in science education, allowing students to explore the microscopic world and conduct experiments.
- Industrial Quality Control: In manufacturing, microscopes are used to inspect the quality of materials and products, ensuring they meet specified standards.
- Forensic Science: Microscopes play a crucial role in analyzing evidence, such as fibers, hair, and other microscopic particles, in criminal investigations.
Maintaining Your Ocular Eyepiece Microscope
Proper maintenance is essential to ensure the longevity and optimal performance of your ocular eyepiece microscope. Here are some tips for maintaining your microscope:
- Cleaning: Regularly clean the lenses using a lens cleaning solution and a soft, lint-free cloth. Avoid using harsh chemicals or abrasive materials.
- Storage: Store the microscope in a clean, dry place away from direct sunlight and dust. Use a dust cover when not in use.
- Handling: Handle the microscope with care, avoiding sudden movements or drops. Always use both hands when carrying the microscope.
- Calibration: Periodically check and calibrate the microscope to ensure accurate measurements and focusing.
🔍 Note: Always follow the manufacturer's guidelines for cleaning and maintenance to avoid damaging the microscope.
Choosing the Right Ocular Eyepiece Microscope
Selecting the right ocular eyepiece microscope depends on your specific needs and budget. Here are some factors to consider:
- Magnification: Determine the level of magnification required for your applications. Higher magnification microscopes are generally more expensive.
- Resolution: Consider the resolution needed for clear and detailed images. Higher resolution microscopes provide better image quality.
- Type of Microscope: Choose the type of microscope that best suits your needs, whether it's a compound, stereo, inverted, phase-contrast, or fluorescence microscope.
- Budget: Set a budget and compare the features and specifications of different microscopes within your price range.
- Brand and Quality: Opt for reputable brands known for their quality and reliability. Reading reviews and seeking recommendations can help in making an informed decision.
Here is a comparison table of different types of ocular eyepiece microscopes:
| Type of Microscope | Magnification Range | Primary Use | Advantages | Disadvantages |
|---|---|---|---|---|
| Compound Microscope | 40x to 1000x | Biological research, education | High magnification, versatile | Limited depth perception |
| Stereo Microscope | 10x to 80x | Dissecting, industrial inspection | Three-dimensional view, depth perception | Lower magnification |
| Inverted Microscope | 40x to 1000x | Cell culture, biological research | Ideal for live cell observation | Limited to specific applications |
| Phase-Contrast Microscope | 40x to 1000x | Biological research, medical diagnostics | Enhanced contrast for transparent specimens | Complex setup |
| Fluorescence Microscope | 40x to 1000x | Biological research, medical diagnostics | Highlights specific structures | Expensive, requires specialized dyes |
When choosing an ocular eyepiece microscope, it's essential to consider the specific requirements of your application and the features that best meet those needs. Whether you're a student, researcher, or professional, selecting the right microscope can significantly enhance your work and provide valuable insights into the microscopic world.
In conclusion, the ocular eyepiece microscope is a powerful tool that has revolutionized various fields by allowing us to explore the microscopic world in detail. Understanding its components, types, applications, and maintenance is crucial for effective use. Whether you’re a beginner or an experienced user, investing in a high-quality ocular eyepiece microscope can open up a world of possibilities for scientific discovery and innovation.
