Understanding the intricacies of a nuclear power plant is crucial for appreciating the complex processes that generate electricity through nuclear fission. A Nuclear Power Plant Diagram serves as a visual guide to the various components and their interactions within the plant. This post will delve into the key components of a nuclear power plant, their functions, and how they work together to produce energy efficiently and safely.
Introduction to Nuclear Power Plants
Nuclear power plants harness the energy released from nuclear fission to generate electricity. This process involves splitting atomic nuclei, typically of uranium-235, to release a tremendous amount of heat. This heat is then used to produce steam, which drives turbines connected to generators, ultimately producing electricity.
The Basic Components of a Nuclear Power Plant

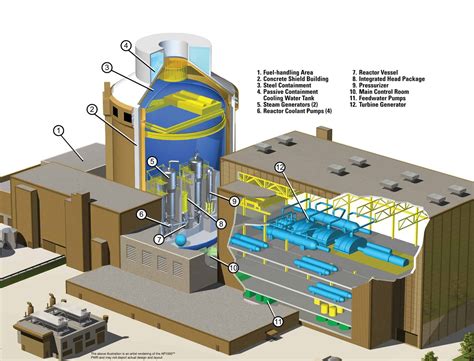

A typical Nuclear Power Plant Diagram includes several key components:
- Nuclear Reactor
- Steam Generator
- Turbine
- Generator
- Cooling System
- Control Rods
- Containment Building
Nuclear Reactor
The nuclear reactor is the heart of the power plant, where nuclear fission occurs. It contains fuel rods made of enriched uranium, which are submerged in a coolant, usually water. The coolant absorbs the heat generated by the fission process.
The reactor core is designed to control the nuclear reaction through the use of control rods, which absorb neutrons and slow down the reaction. The reactor operates at high temperatures and pressures, making safety measures crucial.
Steam Generator
The steam generator is a heat exchanger that transfers heat from the reactor coolant to a secondary loop of water. This secondary water is converted into steam, which is then used to drive the turbines. The steam generator ensures that the radioactive coolant does not come into direct contact with the turbine, maintaining safety and efficiency.
Turbine and Generator
The steam generated in the steam generator is directed to the turbine, where it causes the turbine blades to rotate. The turbine is connected to a generator, which converts the mechanical energy of the rotating turbine into electrical energy. This electricity is then transmitted to the power grid for distribution.
Cooling System
The cooling system is essential for maintaining the reactor’s temperature within safe limits. It consists of pumps and heat exchangers that circulate coolant through the reactor and steam generator. The coolant absorbs heat from the reactor and transfers it to the steam generator, where it is used to produce steam. After passing through the steam generator, the coolant is cooled and recirculated back into the reactor.
Control Rods
Control rods are made of materials that absorb neutrons, such as cadmium or boron. They are inserted into the reactor core to control the rate of the nuclear reaction. By adjusting the position of the control rods, operators can increase or decrease the power output of the reactor. In case of an emergency, the control rods can be fully inserted to shut down the reactor quickly.
Containment Building
The containment building is a robust structure designed to withstand extreme conditions, such as earthquakes, explosions, and the release of radioactive materials. It houses the reactor and other critical components, providing a barrier to prevent the escape of radioactive substances in the event of an accident. The containment building is typically made of reinforced concrete and steel, ensuring maximum safety.
Safety Measures in Nuclear Power Plants
Safety is paramount in nuclear power plants due to the potential risks associated with nuclear reactions. Several safety measures are implemented to ensure the safe operation of the plant:
- Redundant Systems: Critical systems have backup components to ensure continuous operation in case of failure.
- Emergency Cooling Systems: These systems provide additional cooling to the reactor in case of a loss of coolant accident.
- Radiation Monitoring: Continuous monitoring of radiation levels ensures that any leaks or increases in radiation are detected promptly.
- Emergency Procedures: Detailed procedures are in place to handle various emergency situations, including reactor shutdowns and evacuation plans.
Types of Nuclear Reactors
There are several types of nuclear reactors, each with its own design and operational characteristics. The most common types include:
- Pressurized Water Reactors (PWRs): These reactors use pressurized water as the coolant and moderator. The water is kept under high pressure to prevent it from boiling.
- Boiling Water Reactors (BWRs): In these reactors, the water is allowed to boil directly in the reactor core, producing steam that drives the turbines.
- CANDU Reactors: These Canadian-designed reactors use heavy water as the moderator and light water as the coolant. They can use natural uranium as fuel.
- Gas-Cooled Reactors (GCRs): These reactors use carbon dioxide as the coolant and graphite as the moderator. They operate at high temperatures, making them suitable for advanced applications.
Environmental Impact of Nuclear Power Plants
Nuclear power plants have a significant environmental impact, both positive and negative. On the positive side, nuclear power generates large amounts of electricity with low greenhouse gas emissions compared to fossil fuel plants. However, there are several environmental concerns:
- Radioactive Waste: Nuclear power plants produce radioactive waste that must be safely stored for thousands of years.
- Water Usage: Nuclear power plants require large amounts of water for cooling, which can impact local water resources.
- Accidents: Although rare, nuclear accidents can have catastrophic environmental and health impacts, as seen in incidents like Chernobyl and Fukushima.
Economic Considerations
The economic aspects of nuclear power plants are complex and multifaceted. While the initial construction costs are high, the operational costs are relatively low compared to other energy sources. Additionally, nuclear power plants have a long lifespan, often operating for 40 to 60 years. However, the high upfront costs and the need for extensive safety measures can be significant barriers to entry.
Future of Nuclear Power
The future of nuclear power is shaped by advancements in technology and evolving energy policies. New reactor designs, such as small modular reactors (SMRs) and advanced reactors, promise improved safety, efficiency, and cost-effectiveness. These innovations aim to address the challenges of traditional nuclear power plants and make nuclear energy a more viable option for the future.
🔍 Note: The development of new reactor technologies is ongoing, with research and development efforts focused on enhancing safety, reducing costs, and improving efficiency.
Comparative Analysis of Nuclear Power vs. Renewable Energy
When comparing nuclear power to renewable energy sources, several factors come into play:
| Factor | Nuclear Power | Renewable Energy |
|---|---|---|
| Emissions | Low greenhouse gas emissions | Zero greenhouse gas emissions |
| Reliability | High reliability and continuous power generation | Intermittent power generation, dependent on weather conditions |
| Cost | High initial costs, low operational costs | Lower initial costs, variable operational costs |
| Waste Management | Radioactive waste requiring long-term storage | Minimal waste, often recyclable |
| Safety | Potential for catastrophic accidents | Generally safe, with minimal environmental impact |
While nuclear power offers a reliable and low-emission source of energy, renewable energy sources like solar and wind provide a cleaner and more sustainable option. The choice between the two often depends on regional energy needs, economic considerations, and environmental policies.
🔍 Note: The integration of nuclear power with renewable energy sources can create a more resilient and sustainable energy grid, leveraging the strengths of both technologies.
In conclusion, a Nuclear Power Plant Diagram provides a comprehensive overview of the complex systems and components that work together to generate electricity through nuclear fission. Understanding these components and their functions is essential for appreciating the benefits and challenges of nuclear power. From the reactor core to the containment building, each element plays a crucial role in ensuring the safe and efficient operation of the plant. As technology advances and new reactor designs emerge, the future of nuclear power holds promise for a more sustainable and reliable energy landscape.
