Understanding the Npsha Given By Vendor is crucial for anyone involved in pump selection and system design. Npsha stands for Net Positive Suction Head Available, a critical parameter that ensures the pump operates efficiently and reliably. This parameter is provided by the vendor and is essential for preventing cavitation, which can damage the pump and reduce its lifespan. This blog post will delve into the importance of Npsha Given By Vendor, how to calculate it, and best practices for ensuring optimal pump performance.

Table of Contents

Understanding Npsha

Npsha is the difference between the absolute pressure at the pump suction and the vapor pressure of the liquid being pumped. It is a measure of the available energy at the pump suction to overcome the resistance to flow and the vapor pressure of the liquid. The Npsha Given By Vendor is a critical piece of information that helps in selecting the right pump for a specific application.

Importance of Npsha Given By Vendor

The Npsha Given By Vendor is crucial for several reasons:

Preventing Cavitation: Cavitation occurs when the pressure at the pump suction drops below the vapor pressure of the liquid, causing the liquid to vaporize and form bubbles. These bubbles collapse violently, leading to erosion and damage to the pump impeller and other components.
Ensuring Efficient Operation: A pump operating with insufficient Npsha will experience reduced flow rates and efficiency, leading to higher energy consumption and operational costs.
Extending Pump Lifespan: By ensuring that the Npsha is sufficient, you can extend the lifespan of the pump and reduce maintenance costs.

Calculating Npsha

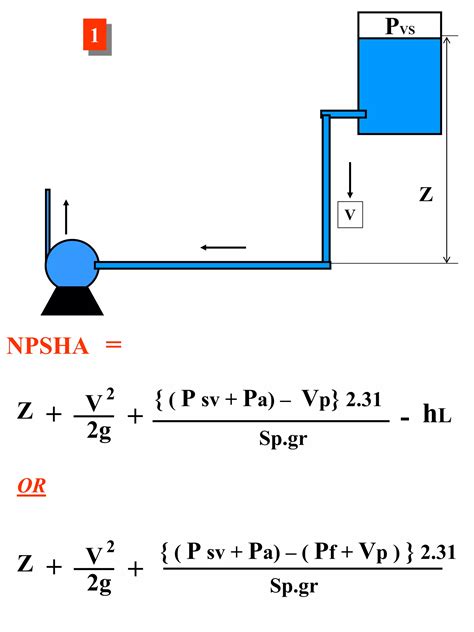

Calculating Npsha involves several steps and considerations. The formula for Npsha is:

Npsha = (P_atm - P_vapor) + P_static - P_friction - P_velocity

Where:

P_atm is the atmospheric pressure.
P_vapor is the vapor pressure of the liquid.
P_static is the static pressure at the pump suction.
P_friction is the pressure loss due to friction in the suction piping.
P_velocity is the pressure loss due to the velocity of the liquid in the suction piping.

Here is a step-by-step guide to calculating Npsha:

Determine Atmospheric Pressure (P_atm): This is the pressure exerted by the atmosphere at the elevation of the pump. It can be found using standard atmospheric pressure tables or online calculators.
Determine Vapor Pressure (P_vapor): This is the pressure at which the liquid begins to vaporize. It can be found in chemical reference books or online databases.
Calculate Static Pressure (P_static): This is the pressure exerted by the liquid column above the pump suction. It is calculated as the product of the liquid density, gravity, and the height of the liquid column.
Calculate Friction Loss (P_friction): This is the pressure loss due to friction as the liquid flows through the suction piping. It can be calculated using the Darcy-Weisbach equation or found in piping friction loss tables.
Calculate Velocity Loss (P_velocity): This is the pressure loss due to the kinetic energy of the liquid as it flows through the suction piping. It is calculated as the product of the liquid density, the square of the velocity, and a conversion factor.

📝 Note: Ensure that all units are consistent when performing these calculations. Typically, pressure is measured in feet of head, but it can also be measured in pounds per square inch (psi) or pascals (Pa).

Npsha Given By Vendor vs. Npshr

It’s important to distinguish between Npsha Given By Vendor and Npshr (Net Positive Suction Head Required). While Npsha is the available suction head provided by the system, Npshr is the minimum suction head required by the pump to operate without cavitation. The Npsha Given By Vendor must always be greater than or equal to the Npshr to ensure proper pump operation.

Best Practices for Ensuring Optimal Npsha

To ensure that the Npsha Given By Vendor is sufficient for your application, follow these best practices:

Accurate System Design: Design the suction piping system to minimize friction and velocity losses. Use larger diameter pipes and avoid sharp bends and fittings.
Proper Pump Selection: Choose a pump with a Npshr that is lower than the available Npsha. This ensures that the pump will operate efficiently and reliably.
Regular Maintenance: Regularly inspect and maintain the suction piping system to prevent buildup of debris or corrosion, which can increase friction losses.
Monitor System Performance: Continuously monitor the system performance to detect any changes in Npsha that could indicate a problem with the suction piping or the pump.

Common Mistakes to Avoid

When dealing with Npsha Given By Vendor, there are several common mistakes to avoid:

Ignoring Friction Losses: Friction losses in the suction piping can significantly reduce Npsha. Always account for these losses in your calculations.
Using Incorrect Vapor Pressure: Using the wrong vapor pressure for the liquid being pumped can lead to inaccurate Npsha calculations. Always use the correct vapor pressure for the specific liquid and temperature.
Neglecting Velocity Losses: Velocity losses can also reduce Npsha. Ensure that the velocity of the liquid in the suction piping is within acceptable limits.
Not Considering Elevation Changes: Changes in elevation can affect the static pressure at the pump suction. Always account for elevation changes in your Npsha calculations.

Case Study: Optimizing Npsha in a Water Treatment Plant

In a water treatment plant, the Npsha Given By Vendor was initially insufficient, leading to frequent pump failures due to cavitation. The plant engineers conducted a thorough analysis of the suction piping system and identified several areas for improvement:

Increased Pipe Diameter: The diameter of the suction piping was increased to reduce friction losses.
Reduced Pipe Length: The length of the suction piping was reduced to minimize velocity losses.
Installed a Suction Lift: A suction lift was installed to increase the static pressure at the pump suction.

After implementing these changes, the Npsha was increased to a level that exceeded the Npshr of the pump, resulting in improved pump performance and reduced maintenance costs.

This case study highlights the importance of accurate Npsha calculations and the need for continuous monitoring and optimization of the suction piping system.

Conclusion

Understanding and optimizing the Npsha Given By Vendor is essential for ensuring efficient and reliable pump operation. By accurately calculating Npsha, selecting the right pump, and following best practices for system design and maintenance, you can prevent cavitation, extend pump lifespan, and reduce operational costs. Always remember that the Npsha Given By Vendor must be greater than or equal to the Npshr to ensure proper pump operation. Regular monitoring and optimization of the suction piping system are crucial for maintaining optimal Npsha and preventing pump failures.
