Npn Vs Pnp

Understanding the differences between NPN and PNP transistors is crucial for anyone delving into electronics and circuit design. These two types of bipolar junction transistors (BJTs) are fundamental components in various electronic devices, each with its unique characteristics and applications. This post will explore the Npn Vs Pnp differences, their working principles, and practical applications to help you make informed decisions in your electronic projects.

Table of Contents

Understanding Bipolar Junction Transistors (BJTs)

Bipolar Junction Transistors (BJTs) are three-terminal semiconductor devices that can amplify or switch electronic signals and electrical power. They are classified into two types based on their doping profiles: NPN and PNP. The key difference lies in the arrangement of the p-type and n-type semiconductor materials.

NPN Transistors

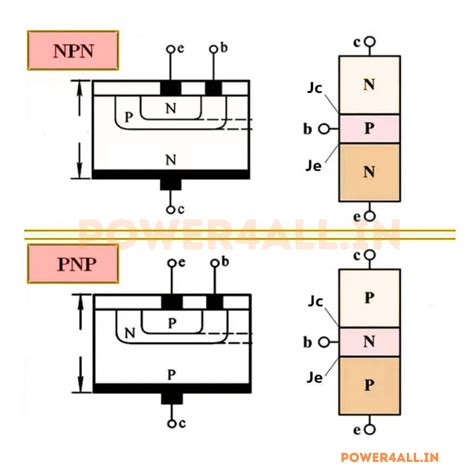

An NPN transistor consists of a layer of p-type semiconductor material sandwiched between two layers of n-type material. The three terminals are:

Emitter (E): Heavily doped n-type region.
Base (B): Lightly doped p-type region.
Collector (C): Moderately doped n-type region.

In an NPN transistor, the current flows from the collector to the emitter. The base-emitter junction is forward-biased, and the base-collector junction is reverse-biased. This configuration allows the transistor to act as an amplifier or a switch.

PNP Transistors

A PNP transistor, on the other hand, has a layer of n-type semiconductor material sandwiched between two layers of p-type material. The three terminals are:

Emitter (E): Heavily doped p-type region.
Base (B): Lightly doped n-type region.
Collector (C): Moderately doped p-type region.

In a PNP transistor, the current flows from the emitter to the collector. The base-emitter junction is forward-biased, and the base-collector junction is reverse-biased. This configuration also allows the transistor to act as an amplifier or a switch.

NPN Vs PNP: Key Differences

The primary differences between NPN and PNP transistors lie in their doping profiles and current flow directions. Here are the key differences:

Aspect	NPN Transistor	PNP Transistor
Doping Profile	n-type emitter and collector, p-type base	p-type emitter and collector, n-type base
Current Flow	Collector to Emitter	Emitter to Collector
Base-Emitter Junction	Forward-biased	Forward-biased
Base-Collector Junction	Reverse-biased	Reverse-biased
Majority Carriers	Electrons	Holes

These differences affect how the transistors are used in circuits. NPN transistors are generally more common and easier to manufacture, making them more prevalent in electronic devices. PNP transistors, while less common, are essential in specific applications where the current flow direction is crucial.

Applications of NPN and PNP Transistors

Both NPN and PNP transistors have a wide range of applications in electronics. Here are some common uses for each type:

NPN Transistors

Amplifiers: NPN transistors are often used in amplifier circuits due to their high gain and efficiency.
Switches: They are used in switching applications, such as in digital circuits and relays.
Oscillators: NPN transistors are used in oscillator circuits to generate signals of specific frequencies.
Power Supplies: They are used in voltage regulators and power supply circuits.

PNP Transistors

Amplifiers: PNP transistors are used in amplifier circuits, particularly in applications where the current flow direction is important.
Switches: They are used in switching applications, such as in digital circuits and relays.
Oscillators: PNP transistors are used in oscillator circuits to generate signals of specific frequencies.
Power Supplies: They are used in voltage regulators and power supply circuits.

While both types of transistors can perform similar functions, the choice between NPN and PNP often depends on the specific requirements of the circuit design.

Choosing Between NPN and PNP Transistors

When deciding between NPN and PNP transistors, consider the following factors:

Current Flow Direction: Choose NPN if the current needs to flow from the collector to the emitter. Choose PNP if the current needs to flow from the emitter to the collector.
Availability and Cost: NPN transistors are generally more available and cost-effective due to their widespread use.
Circuit Design: The specific requirements of your circuit design may dictate the use of one type over the other.
Compatibility: Ensure that the chosen transistor is compatible with the other components in your circuit.

💡 Note: Always refer to the datasheet of the transistor to understand its specifications and ensure it meets your circuit requirements.

Practical Examples of NPN and PNP Transistors

To illustrate the practical use of NPN and PNP transistors, let's consider a few examples:

NPN Transistor in a Simple Amplifier Circuit

An NPN transistor can be used in a simple amplifier circuit to amplify a weak signal. The circuit typically includes a resistor network to bias the transistor and a load resistor to provide the output signal. The NPN transistor amplifies the input signal by controlling the current flow from the collector to the emitter.

PNP Transistor in a Switching Circuit

A PNP transistor can be used in a switching circuit to control the flow of current in a load. The circuit includes a resistor network to bias the transistor and a load resistor to provide the output signal. The PNP transistor acts as a switch, turning the load on and off based on the input signal.

These examples demonstrate the versatility of NPN and PNP transistors in various electronic applications.

In summary, understanding the differences between NPN and PNP transistors is essential for effective circuit design. Both types of transistors have their unique characteristics and applications, and choosing the right one depends on the specific requirements of your project. By considering factors such as current flow direction, availability, cost, and circuit design, you can make an informed decision and achieve optimal performance in your electronic devices.
