Notched P Wave

Electrocardiogram (ECG) interpretation is a critical skill for healthcare professionals, as it provides valuable insights into the heart's electrical activity. One of the key features that clinicians look for in an ECG is the Notched P Wave. This characteristic can indicate various cardiac conditions, making it essential to understand its significance and implications.

Table of Contents

Understanding the P Wave

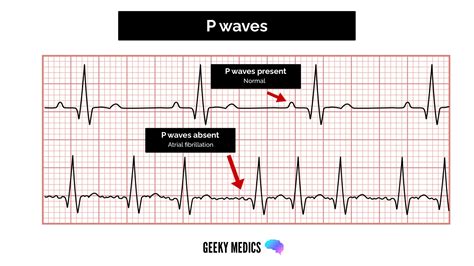

The P wave on an ECG represents the depolarization of the atria, which is the electrical activation of the heart’s upper chambers. A normal P wave is typically smooth and rounded, with a duration of less than 0.12 seconds and an amplitude of less than 2.5 mm in the limb leads. However, when the P wave appears notched or biphasic, it can signal underlying cardiac abnormalities.

What is a Notched P Wave?

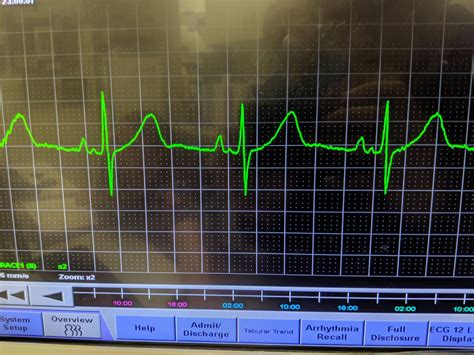

A Notched P Wave is characterized by a distinct indentation or notch in the waveform. This notch can occur in various leads of the ECG and is often a sign of left atrial enlargement or other atrial abnormalities. The notch typically appears in the terminal portion of the P wave, which corresponds to the late phase of atrial depolarization.

Causes of a Notched P Wave

Several conditions can lead to a Notched P Wave. Some of the most common causes include:

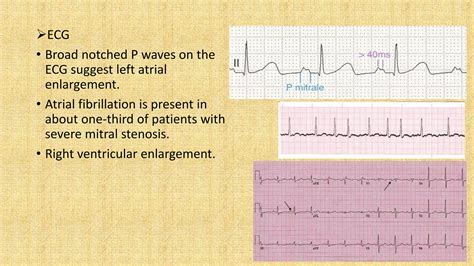

Left Atrial Enlargement: This is one of the primary causes of a notched P wave. Left atrial enlargement can result from conditions such as mitral valve disease, hypertension, or coronary artery disease.
Right Atrial Enlargement: Although less common, right atrial enlargement can also cause a notched P wave, particularly in leads II, III, and aVF.
Interatrial Block: This condition occurs when there is a delay in the conduction of electrical impulses between the atria, leading to a notched or biphasic P wave.
Atrial Fibrillation: In some cases, a notched P wave can be a precursor to atrial fibrillation, a condition characterized by irregular and often rapid heart rate.

Diagnosing a Notched P Wave

Diagnosing a Notched P Wave involves a thorough analysis of the ECG. Clinicians look for specific characteristics in the P wave, including:

Duration: A prolonged P wave duration (greater than 0.12 seconds) can indicate atrial enlargement.
Amplitude: An increased P wave amplitude (greater than 2.5 mm in the limb leads) can also suggest atrial enlargement.
Morphology: The presence of a notch or indentation in the P wave is a key diagnostic feature.
Lead Distribution: The leads in which the notched P wave appears can provide clues about the location of the atrial abnormality. For example, a notched P wave in leads II, III, and aVF may indicate right atrial enlargement, while a notched P wave in leads V1 and V2 may suggest left atrial enlargement.

Interpreting a Notched P Wave

Interpreting a Notched P Wave requires a comprehensive understanding of the patient’s clinical context. Clinicians must consider the patient’s medical history, symptoms, and other diagnostic findings. For example, a patient with a history of hypertension and a notched P wave in leads II, III, and aVF may have left atrial enlargement due to increased left ventricular filling pressures.

Management and Treatment

The management and treatment of a Notched P Wave depend on the underlying cause. Some common approaches include:

Medications: Drugs such as diuretics, ACE inhibitors, and beta-blockers may be prescribed to manage conditions like hypertension and heart failure, which can contribute to atrial enlargement.
Lifestyle Modifications: Patients may be advised to make lifestyle changes, such as adopting a heart-healthy diet, engaging in regular physical activity, and avoiding tobacco and excessive alcohol consumption.
Surgical Interventions: In some cases, surgical procedures such as valve replacement or repair may be necessary to address underlying cardiac conditions.
Monitoring: Regular follow-up and monitoring are essential to track the progression of the condition and adjust treatment as needed.

Importance of Early Detection

Early detection of a Notched P Wave is crucial for timely intervention and management of underlying cardiac conditions. Regular ECG screenings, especially for individuals at high risk of cardiac disease, can help identify abnormalities early. Prompt diagnosis and treatment can prevent complications and improve patient outcomes.

Case Studies

To illustrate the significance of a Notched P Wave, consider the following case studies:

Case Study 1: A 65-year-old patient with a history of hypertension presents with shortness of breath and fatigue. An ECG reveals a notched P wave in leads II, III, and aVF, suggesting left atrial enlargement. Further evaluation confirms the diagnosis, and the patient is started on a regimen of diuretics and ACE inhibitors.

Case Study 2: A 50-year-old patient with a history of mitral valve disease undergoes an ECG as part of a routine check-up. The ECG shows a notched P wave in leads V1 and V2, indicating right atrial enlargement. The patient is referred for further cardiac evaluation and potential surgical intervention.

Case Study 3: A 70-year-old patient with a history of coronary artery disease presents with palpitations and dizziness. An ECG reveals a notched P wave in multiple leads, raising suspicion for atrial fibrillation. The patient is admitted for further monitoring and treatment.

Conclusion

A Notched P Wave is a critical finding on an ECG that can indicate various cardiac conditions, particularly atrial enlargement. Understanding the causes, diagnosis, and management of a notched P wave is essential for healthcare professionals to provide timely and effective care. Early detection and intervention can significantly improve patient outcomes and prevent complications. Regular ECG screenings and a comprehensive clinical evaluation are key to identifying and managing this important ECG feature.
