Understanding the intricacies of computer graphics and rendering can be daunting, but mastering concepts like Normalized Device Coordinates (NDC) is crucial for anyone looking to delve into this field. NDC is a fundamental concept that helps in transforming 3D coordinates into a 2D space, making it easier to render images on a screen. This transformation is essential for various applications, from video games to scientific visualizations.
What are Normalized Device Coordinates?

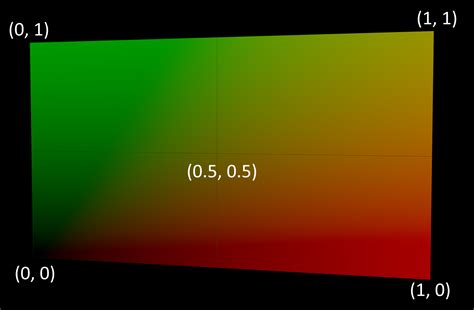

Normalized Device Coordinates are a standardized way of representing points in a 3D space that can be easily mapped to a 2D screen. The coordinates range from -1 to 1 in both the x and y directions, with the origin (0, 0) typically representing the center of the screen. This normalization process simplifies the rendering pipeline by providing a consistent coordinate system that can be uniformly applied across different devices and resolutions.
The Importance of NDC in Computer Graphics
NDC plays a pivotal role in the rendering pipeline, acting as an intermediary step between the 3D world coordinates and the final 2D screen coordinates. Here are some key reasons why NDC is important:
- Consistency: NDC provides a consistent coordinate system that is independent of the screen resolution or aspect ratio. This consistency ensures that the rendered image looks the same across different devices.
- Simplification: By normalizing the coordinates, the rendering process becomes simpler. Complex transformations and projections can be applied more easily in the NDC space.
- Efficiency: NDC helps in optimizing the rendering pipeline by reducing the number of transformations needed. This efficiency is crucial for real-time applications like video games and simulations.
The Transformation Pipeline
The transformation from 3D world coordinates to 2D screen coordinates involves several steps. Understanding these steps is essential for grasping how NDC fits into the overall process.
Model Transformation
The first step is to transform the 3D model from its local coordinate system to the world coordinate system. This involves applying translations, rotations, and scaling to position the model correctly in the world.
View Transformation
Next, the world coordinates are transformed into view coordinates. This step involves positioning the camera in the world and defining the view frustum, which determines what part of the world is visible to the camera.
Projection Transformation
The view coordinates are then transformed into Normalized Device Coordinates. This step involves projecting the 3D view coordinates onto a 2D plane. The most common projection methods are perspective and orthographic projections.
Viewport Transformation
Finally, the NDC are transformed into screen coordinates. This step maps the normalized coordinates to the actual pixels on the screen, taking into account the screen resolution and aspect ratio.
Perspective Projection
Perspective projection is one of the most commonly used methods for transforming 3D coordinates into NDC. This method simulates the way the human eye perceives depth, with objects farther away appearing smaller.
The perspective projection matrix is defined as follows:
| x | y | z | w |
|---|---|---|---|
| 1 / (aspect * tan(fov / 2)) | 0 | 0 | 0 |
| 0 | 1 / tan(fov / 2) | 0 | 0 |
| 0 | 0 | -(far + near) / (far - near) | -1 |
| 0 | 0 | -(2 * far * near) / (far - near) | 0 |
Where:
- aspect is the aspect ratio of the screen.
- fov is the field of view in radians.
- near and far are the distances to the near and far clipping planes, respectively.
💡 Note: The perspective projection matrix can be adjusted to control the field of view and the depth range, allowing for more realistic and immersive renderings.
Orthographic Projection
Orthographic projection is another method for transforming 3D coordinates into NDC. Unlike perspective projection, orthographic projection does not simulate depth perception. Instead, it projects the 3D coordinates onto a 2D plane without any distortion.
The orthographic projection matrix is defined as follows:
| x | y | z | w |
|---|---|---|---|
| 2 / (right - left) | 0 | 0 | -(right + left) / (right - left) |
| 0 | 2 / (top - bottom) | 0 | -(top + bottom) / (top - bottom) |
| 0 | 0 | -2 / (far - near) | -(far + near) / (far - near) |
| 0 | 0 | 0 | 1 |
Where:
- left, right, bottom, and top define the boundaries of the view frustum.
- near and far are the distances to the near and far clipping planes, respectively.
💡 Note: Orthographic projection is often used in applications where depth perception is not necessary, such as in technical drawings or 2D games.
Viewport Transformation
After transforming the coordinates into NDC, the final step is to map them to the actual screen coordinates. This is done using the viewport transformation, which takes into account the screen resolution and aspect ratio.
The viewport transformation matrix is defined as follows:
| x | y | z | w |
|---|---|---|---|
| width / 2 | 0 | 0 | x + width / 2 |
| 0 | height / 2 | 0 | y + height / 2 |
| 0 | 0 | 1 / 2 | z / 2 |
| 0 | 0 | 0 | 1 |
Where:
- width and height are the dimensions of the viewport.
- x, y, and z are the NDC coordinates.
💡 Note: The viewport transformation ensures that the rendered image fits perfectly within the screen boundaries, regardless of the screen resolution or aspect ratio.
Applications of NDC
NDC is used in a wide range of applications, from video games to scientific visualizations. Here are some examples:
Video Games
In video games, NDC is used to transform 3D game worlds into 2D images that can be displayed on a screen. This transformation is essential for creating immersive and realistic gaming experiences.
Scientific Visualizations
In scientific visualizations, NDC is used to represent complex data in a visual format. This allows scientists to better understand and analyze data, making it easier to identify patterns and trends.
Computer-Aided Design (CAD)
In CAD, NDC is used to create precise and detailed 3D models. This transformation ensures that the models are accurate and can be easily manipulated and visualized.
Virtual Reality (VR)
In VR, NDC is used to create immersive 3D environments. This transformation ensures that the virtual world is rendered accurately and in real-time, providing a seamless and realistic experience for the user.
NDC is a fundamental concept in computer graphics that plays a crucial role in transforming 3D coordinates into 2D screen coordinates. By understanding NDC and its applications, you can gain a deeper appreciation for the complexities of rendering and visualization. Whether you’re a game developer, a scientist, or an engineer, mastering NDC is essential for creating high-quality visualizations and immersive experiences.
