Noninverting Op Amp

Understanding the fundamentals of a noninverting op amp is crucial for anyone delving into the world of analog electronics. An operational amplifier (op amp) is a versatile and powerful component used in a wide range of applications, from signal amplification to filtering and more. This post will guide you through the basics of a noninverting op amp, its configuration, and practical applications.

Table of Contents

What is a Noninverting Op Amp?

A noninverting op amp is a configuration where the input signal is applied to the non-inverting input (+) of the op amp. This configuration is widely used because it provides a high input impedance, which means it draws very little current from the input signal source. This makes it ideal for applications where the input signal needs to be amplified without significant loading.

Basic Configuration of a Noninverting Op Amp

The basic configuration of a noninverting op amp involves connecting the input signal to the non-inverting input (+) and using a feedback resistor and a resistor in series with the inverting input (-). The feedback resistor is connected between the output and the inverting input, while the other resistor is connected between the inverting input and ground. This setup ensures that the op amp amplifies the input signal without inverting it.

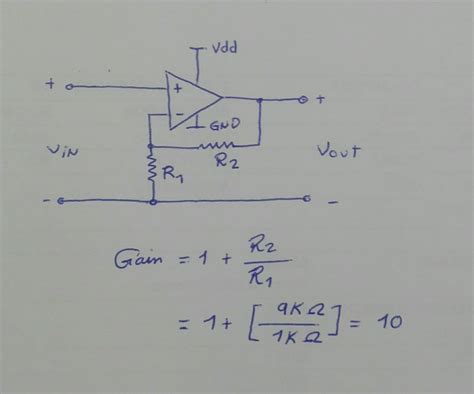

Here is a simple circuit diagram for a noninverting op amp:

Key Components and Their Roles

The key components in a noninverting op amp circuit are:

Input Signal (Vin): The signal to be amplified, connected to the non-inverting input (+).
Feedback Resistor (Rf): Connected between the output and the inverting input (-). It determines the gain of the amplifier.
Resistor (R1): Connected between the inverting input (-) and ground. It works in conjunction with the feedback resistor to set the gain.
Output Signal (Vout): The amplified signal, taken from the output of the op amp.

Calculating the Gain of a Noninverting Op Amp

The gain of a noninverting op amp is determined by the ratio of the feedback resistor (Rf) to the resistor (R1). The formula for the gain (A) is:

A = 1 + (Rf / R1)

This formula shows that the gain can be easily adjusted by changing the values of Rf and R1. For example, if Rf is 10 kΩ and R1 is 1 kΩ, the gain would be:

A = 1 + (10 kΩ / 1 kΩ) = 1 + 10 = 11

This means the output signal will be 11 times the input signal.

Practical Applications of a Noninverting Op Amp

A noninverting op amp is used in various applications due to its high input impedance and non-inverting nature. Some common applications include:

Signal Amplification: Amplifying weak signals without inverting them.
Buffer Amplifiers: Used to isolate stages in a circuit to prevent loading effects.
Voltage Followers: When Rf is removed and R1 is connected to ground, the op amp acts as a voltage follower with a gain of 1.
Active Filters: Used in combination with other components to create active filters.

Design Considerations for a Noninverting Op Amp

When designing a noninverting op amp circuit, several factors need to be considered to ensure optimal performance:

Input Impedance: Ensure the input impedance is high to minimize loading effects.
Output Impedance: The output impedance should be low to drive subsequent stages effectively.
Gain Stability: Use stable resistors to maintain consistent gain.
Power Supply: Ensure the op amp is powered within its specified voltage range.
Frequency Response: Consider the frequency response of the op amp to ensure it meets the requirements of your application.

Example Circuit and Calculation

Let's consider an example where we want to amplify a signal by a factor of 5 using a noninverting op amp. We can choose R1 to be 1 kΩ. Using the gain formula:

A = 1 + (Rf / R1)

We need a gain of 5, so:

5 = 1 + (Rf / 1 kΩ)

Solving for Rf:

Rf = (5 - 1) * 1 kΩ = 4 kΩ

Therefore, we need a feedback resistor (Rf) of 4 kΩ and a resistor (R1) of 1 kΩ to achieve a gain of 5.

💡 Note: Ensure that the op amp you choose has a sufficient gain-bandwidth product to handle the desired frequency range of your input signal.

Common Mistakes to Avoid

When working with a noninverting op amp, there are a few common mistakes to avoid:

Incorrect Resistor Values: Double-check the resistor values to ensure the desired gain is achieved.
Power Supply Issues: Ensure the op amp is properly powered and within its specified voltage range.
Ground Loops: Avoid ground loops that can introduce noise and instability.
Component Tolerances: Use resistors with tight tolerances to maintain consistent gain.

By being mindful of these potential pitfalls, you can ensure your noninverting op amp circuit performs as expected.

Advanced Configurations

Beyond the basic configuration, there are advanced setups that can enhance the performance of a noninverting op amp. These include:

Differential Amplifiers: Used to amplify the difference between two input signals.
Instrumentation Amplifiers: Provide high input impedance and high common-mode rejection ratio.
Active Filters: Combine op amps with capacitors to create filters with precise frequency responses.

These advanced configurations can be tailored to specific applications, offering greater flexibility and performance.

Troubleshooting a Noninverting Op Amp Circuit

If your noninverting op amp circuit is not performing as expected, here are some troubleshooting steps to consider:

Check Power Supply: Ensure the op amp is properly powered.
Verify Resistor Values: Double-check the resistor values to ensure they match the desired gain.
Inspect Connections: Ensure all connections are secure and there are no short circuits.
Measure Output Signal: Use an oscilloscope to measure the output signal and compare it to the expected waveform.
Check for Noise: Look for any sources of noise that might be affecting the circuit.

By systematically checking these areas, you can identify and resolve issues in your noninverting op amp circuit.

Here is a table summarizing the key points of a noninverting op amp circuit:

Component	Role	Typical Value
Input Signal (Vin)	Signal to be amplified	Varies
Feedback Resistor (Rf)	Determines gain	Varies
Resistor (R1)	Works with Rf to set gain	Varies
Output Signal (Vout)	Amplified signal	Varies

This table provides a quick reference for the key components and their roles in a noninverting op amp circuit.

In summary, a noninverting op amp is a versatile and powerful tool in analog electronics. By understanding its configuration, calculating the gain, and considering design factors, you can effectively use a noninverting op amp in a variety of applications. Whether you’re amplifying signals, designing buffers, or creating active filters, the noninverting op amp offers a reliable solution for many electronic challenges.
