Understanding the structure of chemical compounds is fundamental in chemistry, and one of the most intriguing structures to study is the Nitrate Ion Lewis Structure. This structure is crucial for understanding the behavior of nitrate ions in various chemical reactions and their role in environmental and biological systems. The nitrate ion, with the chemical formula NO3-, is a polyatomic ion that plays a significant role in agriculture, environmental science, and industrial processes. This post will delve into the details of the nitrate ion's Lewis structure, its properties, and its applications.
Understanding the Nitrate Ion
The nitrate ion is composed of one nitrogen atom and three oxygen atoms. The nitrogen atom is at the center, and the three oxygen atoms are arranged around it. The nitrate ion has a total of 24 valence electrons, which are distributed among the atoms to form the Lewis structure. The nitrogen atom contributes five valence electrons, and each oxygen atom contributes six valence electrons, making a total of 24 valence electrons.
The Nitrate Ion Lewis Structure
The Nitrate Ion Lewis Structure is a visual representation of the arrangement of atoms and electrons in the nitrate ion. To draw the Lewis structure, follow these steps:
- Identify the central atom: In the nitrate ion, nitrogen is the central atom.
- Count the total number of valence electrons: The nitrate ion has 24 valence electrons.
- Arrange the atoms: Place the three oxygen atoms around the central nitrogen atom.
- Form single bonds: Connect each oxygen atom to the nitrogen atom with a single bond, using two electrons per bond. This uses up 6 electrons, leaving 18 electrons.
- Distribute the remaining electrons: Place the remaining 18 electrons as lone pairs on the oxygen atoms. Each oxygen atom will have three lone pairs, and the nitrogen atom will have no lone pairs.
- Check the formal charges: Ensure that the formal charges on all atoms are minimized. The nitrogen atom should have a formal charge of +1, and each oxygen atom should have a formal charge of -2⁄3.
📝 Note: The formal charges in the nitrate ion are not integers because the charge is distributed equally among the three oxygen atoms.
Properties of the Nitrate Ion
The nitrate ion has several important properties that make it significant in various fields. Some of these properties include:
- Chemical Stability: The nitrate ion is relatively stable and does not easily decompose. This stability makes it useful in fertilizers and explosives.
- Solubility: Nitrate salts are highly soluble in water, which is why they are commonly used in agricultural applications.
- Oxidizing Agent: The nitrate ion can act as an oxidizing agent in chemical reactions, making it useful in industrial processes.
- Environmental Impact: Nitrate ions can contribute to water pollution and eutrophication if they accumulate in water bodies.
Applications of the Nitrate Ion
The nitrate ion has a wide range of applications in various industries. Some of the most notable applications include:
- Agriculture: Nitrate ions are a crucial component of fertilizers, providing essential nitrogen to plants. This helps in promoting plant growth and increasing crop yields.
- Industrial Processes: Nitrate ions are used in the production of explosives, dyes, and other chemicals. Their oxidizing properties make them valuable in these processes.
- Environmental Science: Understanding the behavior of nitrate ions is important for studying water pollution and eutrophication. This knowledge helps in developing strategies to mitigate these environmental issues.
- Biological Systems: Nitrate ions play a role in various biological processes, including nitrogen metabolism in plants and animals. They are also involved in the nitrogen cycle, which is essential for the ecosystem.
Drawing the Nitrate Ion Lewis Structure
To better understand the Nitrate Ion Lewis Structure, let’s go through the steps in more detail. Here is a step-by-step guide to drawing the Lewis structure of the nitrate ion:
- Identify the Central Atom: The nitrogen atom is the central atom in the nitrate ion.
- Count the Valence Electrons: The nitrate ion has 24 valence electrons (5 from nitrogen and 6 from each of the three oxygen atoms).
- Arrange the Atoms: Place the three oxygen atoms around the central nitrogen atom.
- Form Single Bonds: Connect each oxygen atom to the nitrogen atom with a single bond, using two electrons per bond. This uses up 6 electrons, leaving 18 electrons.
- Distribute the Remaining Electrons: Place the remaining 18 electrons as lone pairs on the oxygen atoms. Each oxygen atom will have three lone pairs, and the nitrogen atom will have no lone pairs.
- Check the Formal Charges: Ensure that the formal charges on all atoms are minimized. The nitrogen atom should have a formal charge of +1, and each oxygen atom should have a formal charge of -2⁄3.
📝 Note: The formal charges in the nitrate ion are not integers because the charge is distributed equally among the three oxygen atoms.
Resonance Structures of the Nitrate Ion

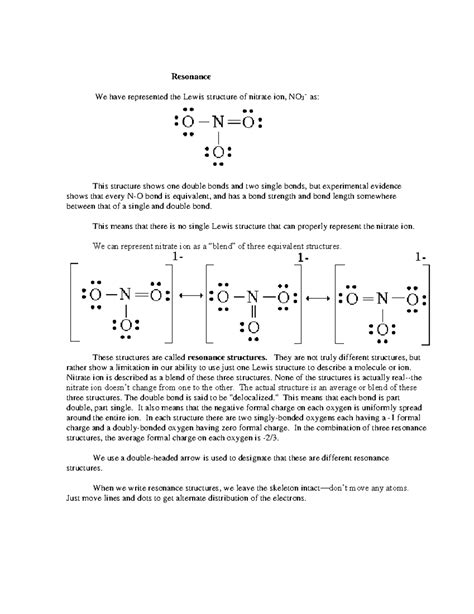

The nitrate ion exhibits resonance, which means that there are multiple Lewis structures that can represent the ion. These resonance structures are different arrangements of the double bonds between the nitrogen and oxygen atoms. The three resonance structures of the nitrate ion are shown below:
| Resonance Structure 1 | Resonance Structure 2 | Resonance Structure 3 |
|---|---|---|
 |
 |
 |
Each of these resonance structures contributes to the overall stability of the nitrate ion. The actual structure of the nitrate ion is a hybrid of these three resonance structures, with the double bonds delocalized over the three oxygen atoms.
Importance of the Nitrate Ion in Environmental Science
The nitrate ion plays a significant role in environmental science, particularly in the context of water pollution and eutrophication. Nitrate ions can enter water bodies through agricultural runoff, industrial waste, and sewage. Once in the water, nitrate ions can stimulate the growth of algae and other aquatic plants, leading to eutrophication. This process can deplete oxygen levels in the water, harming aquatic life and disrupting the ecosystem.
Understanding the Nitrate Ion Lewis Structure and its properties is crucial for developing strategies to mitigate these environmental issues. By studying the behavior of nitrate ions, scientists can develop methods to reduce nitrate pollution and protect water quality.
Role of the Nitrate Ion in Biological Systems
The nitrate ion is essential for various biological processes, including nitrogen metabolism in plants and animals. Plants absorb nitrate ions from the soil and convert them into amino acids, which are the building blocks of proteins. Animals, in turn, obtain nitrogen from the proteins they consume. The nitrate ion is also involved in the nitrogen cycle, which is the process by which nitrogen is converted between its various chemical forms in the environment.
Understanding the Nitrate Ion Lewis Structure and its role in biological systems is important for studying the nitrogen cycle and developing strategies to improve agricultural practices. By optimizing the use of nitrate fertilizers, farmers can increase crop yields while minimizing environmental impact.
Industrial Applications of the Nitrate Ion
The nitrate ion has several industrial applications, particularly in the production of explosives, dyes, and other chemicals. The oxidizing properties of the nitrate ion make it valuable in these processes. For example, nitroglycerin, a common explosive, is produced by reacting glycerol with nitric acid, which contains nitrate ions. Similarly, many dyes and pigments are produced using nitrate compounds.
Understanding the Nitrate Ion Lewis Structure and its properties is crucial for developing new industrial applications and improving existing processes. By studying the behavior of nitrate ions, scientists can develop more efficient and environmentally friendly methods for producing chemicals.
In summary, the Nitrate Ion Lewis Structure is a fundamental concept in chemistry that has wide-ranging applications in agriculture, environmental science, and industrial processes. By understanding the structure and properties of the nitrate ion, scientists can develop strategies to mitigate environmental issues, improve agricultural practices, and create new industrial applications. The nitrate ion’s role in biological systems and the nitrogen cycle is also crucial for maintaining the health of ecosystems and ensuring sustainable food production. As research continues, the importance of the nitrate ion in various fields will only grow, making it a key area of study in chemistry and related disciplines.
