Understanding the NH4+ Lewis Structure is fundamental for anyone studying chemistry, particularly those delving into the intricacies of molecular bonding and electron distribution. The NH4+ ion, also known as the ammonium ion, is a positively charged polyatomic ion with a central nitrogen atom surrounded by four hydrogen atoms. This structure is a classic example of covalent bonding and helps illustrate the principles of valence shell electron pair repulsion (VSEPR) theory.
What is the NH4+ Lewis Structure?
The NH4+ Lewis Structure represents the arrangement of valence electrons around the nitrogen atom in the ammonium ion. Lewis structures are diagrammatic representations that show the bonding between atoms and the lone pairs of electrons that may exist in the molecule. For NH4+, the Lewis structure helps visualize how the nitrogen atom forms bonds with four hydrogen atoms.
Drawing the NH4+ Lewis Structure
To draw the NH4+ Lewis Structure, follow these steps:
- Identify the central atom: In NH4+, the central atom is nitrogen (N).
- Count the total number of valence electrons: Nitrogen has 5 valence electrons, and each hydrogen atom has 1 valence electron. Since there are four hydrogen atoms, the total number of valence electrons is 5 (from N) + 4 (from H) = 9. However, since NH4+ is a cation with a +1 charge, we subtract one electron, giving us a total of 8 valence electrons.
- Place the valence electrons around the central atom: Start by placing one pair of electrons between the nitrogen atom and each hydrogen atom to form single bonds. This uses up 8 electrons (4 bonds × 2 electrons per bond).
- Check for any remaining electrons: Since all 8 valence electrons are used in bonding, there are no lone pairs left on the nitrogen atom.

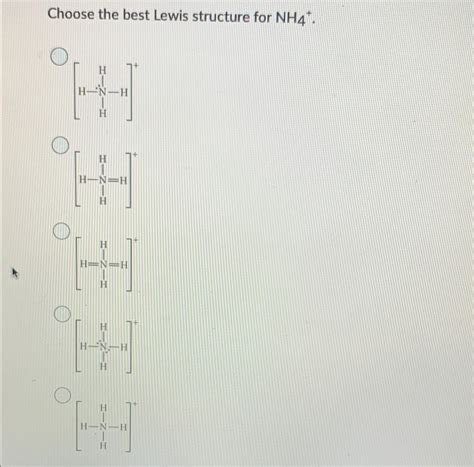

Here is a visual representation of the NH4+ Lewis Structure:
Understanding the Bonding in NH4+
The bonding in NH4+ is purely covalent, with each hydrogen atom sharing one electron with the nitrogen atom to form a single bond. The nitrogen atom, with its five valence electrons, can form four covalent bonds by sharing one electron with each hydrogen atom. This results in a stable octet configuration for the nitrogen atom, where it has eight electrons in its valence shell.
VSEPR Theory and the Shape of NH4+
The shape of the NH4+ ion can be predicted using the Valence Shell Electron Pair Repulsion (VSEPR) theory. According to VSEPR theory, the geometry of a molecule is determined by the repulsion between electron pairs in the valence shell of the central atom. In the case of NH4+, there are four bonding pairs of electrons around the nitrogen atom and no lone pairs.
This arrangement leads to a tetrahedral geometry, where the four hydrogen atoms are positioned at the vertices of a tetrahedron, and the nitrogen atom is at the center. The bond angles between the hydrogen atoms are approximately 109.5 degrees, which is characteristic of a tetrahedral shape.
Properties of NH4+
The ammonium ion (NH4+) has several important properties that make it significant in chemistry:
- Charge: NH4+ has a +1 charge, making it a cation.
- Stability: The tetrahedral geometry and the stable octet configuration of the nitrogen atom contribute to the stability of the NH4+ ion.
- Solubility: Ammonium salts are generally soluble in water due to the polar nature of the NH4+ ion.
- Acidity: Ammonium ions can act as weak acids in aqueous solutions, releasing protons (H+) and forming ammonia (NH3).
Applications of NH4+
The ammonium ion has various applications in chemistry and industry:
- Fertilizers: Ammonium salts, such as ammonium nitrate (NH4NO3) and ammonium sulfate ((NH4)2SO4), are commonly used as fertilizers due to their high nitrogen content.
- Cleaning Agents: Ammonium compounds are used in cleaning products for their ability to dissolve grease and oils.
- Pharmaceuticals: Ammonium salts are used in the production of certain medications and as buffering agents in pharmaceutical formulations.
- Industrial Processes: Ammonium ions are used in various industrial processes, including the production of plastics, dyes, and explosives.
Comparing NH4+ with Other Ions
To better understand the NH4+ Lewis Structure, it can be helpful to compare it with other ions and molecules. For example, the ammonia molecule (NH3) has a similar structure but with one fewer hydrogen atom and an additional lone pair of electrons on the nitrogen atom. This results in a trigonal pyramidal geometry for NH3, unlike the tetrahedral geometry of NH4+.
Another comparison can be made with the hydronium ion (H3O+), which has a central oxygen atom bonded to three hydrogen atoms and a lone pair of electrons. The hydronium ion has a trigonal pyramidal geometry, similar to NH3, but with a different central atom and bonding characteristics.
💡 Note: The comparison of NH4+ with NH3 and H3O+ highlights the importance of the number of bonding pairs and lone pairs in determining the geometry of a molecule or ion.
Common Mistakes in Drawing NH4+ Lewis Structure
When drawing the NH4+ Lewis Structure, it is important to avoid common mistakes that can lead to incorrect representations:
- Incorrect Valence Electron Count: Ensure that you correctly count the total number of valence electrons, including the charge of the ion.
- Incorrect Bonding: Make sure that each hydrogen atom forms a single bond with the nitrogen atom, and that there are no lone pairs on the nitrogen atom.
- Incorrect Geometry: Remember that the NH4+ ion has a tetrahedral geometry, with bond angles of approximately 109.5 degrees.
Practice Problems
To reinforce your understanding of the NH4+ Lewis Structure, try solving the following practice problems:
- Draw the Lewis structure for the ammonium ion (NH4+) and determine its geometry.
- Compare the Lewis structures of NH4+ and NH3, and explain the differences in their geometries.
- Predict the geometry of the hydronium ion (H3O+) and compare it with the geometry of NH4+.
Here is a table summarizing the key points about the NH4+ ion:
| Property | Description |
|---|---|
| Central Atom | Nitrogen (N) |
| Valence Electrons | 8 (5 from N + 4 from H - 1 for the +1 charge) |
| Bonding | Four single covalent bonds |
| Geometry | Tetrahedral |
| Bond Angles | Approximately 109.5 degrees |
Understanding the NH4+ Lewis Structure is a crucial step in mastering the fundamentals of chemical bonding and molecular geometry. By following the steps outlined above and practicing with various problems, you can gain a solid foundation in this important topic. This knowledge will serve as a building block for more advanced studies in chemistry, including organic chemistry, inorganic chemistry, and biochemistry.
