In the realm of network infrastructure, ensuring the reliability and performance of your network cables is paramount. A network cable test is a crucial step in maintaining a robust and efficient network. Whether you are setting up a new network or troubleshooting an existing one, understanding the importance of a network cable test and how to perform it can save you time and prevent potential issues.
Understanding Network Cables
Network cables are the backbone of any wired network, facilitating the transmission of data between devices. There are several types of network cables, each serving different purposes and environments. The most common types include:
- Cat5 (Category 5) Cables: Suitable for 10/100 Mbps networks.
- Cat5e (Category 5e) Cables: Enhanced version of Cat5, supporting 1000 Mbps (1 Gbps) networks.
- Cat6 (Category 6) Cables: Designed for 10 Gbps networks and beyond, with improved shielding.
- Cat6a (Category 6a) Cables: Augmented version of Cat6, supporting 10 Gbps over longer distances.
- Cat7 (Category 7) Cables: High-performance cables designed for 10 Gbps and higher speeds, with superior shielding.
- Cat8 (Category 8) Cables: The latest standard, supporting up to 40 Gbps over short distances.
Each type of cable has its own specifications and use cases, and choosing the right one depends on your network's requirements and the environment in which it will be deployed.
Why Perform a Network Cable Test?
A network cable test is essential for several reasons:
- Ensuring Reliability: A faulty cable can lead to intermittent connectivity issues, slow data transfer rates, and even complete network failures. Regular testing helps identify and replace problematic cables before they cause significant issues.
- Optimizing Performance: By verifying that your cables are in good condition and properly installed, you can ensure that your network operates at its optimal speed and efficiency.
- Preventing Downtime: Regular network cable tests can help prevent unexpected downtime by identifying potential problems before they escalate.
- Compliance and Safety: Testing ensures that your cables comply with industry standards and safety regulations, reducing the risk of electrical hazards and other safety issues.
Types of Network Cable Tests
There are several types of network cable tests that you can perform, each serving a different purpose:
- Continuity Test: This test checks whether the cable is continuous and free of breaks or shorts. It is a basic test that ensures the cable is physically intact.
- Wire Map Test: This test verifies that the wires in the cable are correctly connected to the appropriate pins at both ends. It ensures that the cable is properly wired and can transmit data accurately.
- Length Test: This test measures the length of the cable to ensure it meets the required specifications. It is important for ensuring that the cable can support the desired data transfer rates over the intended distance.
- Cable Performance Test: This test evaluates the cable's performance in terms of data transfer rates, signal quality, and interference. It is crucial for ensuring that the cable can handle the demands of your network.
Tools for Network Cable Testing
To perform a network cable test, you will need specialized tools. Some of the most commonly used tools include:

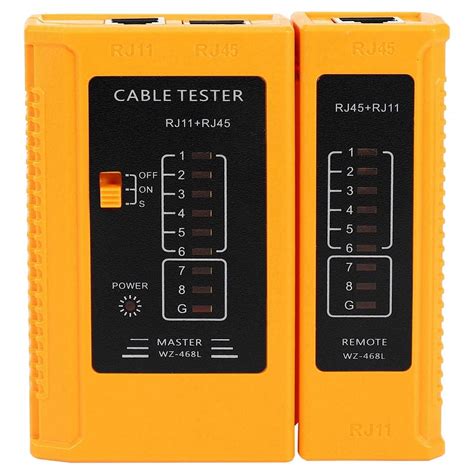

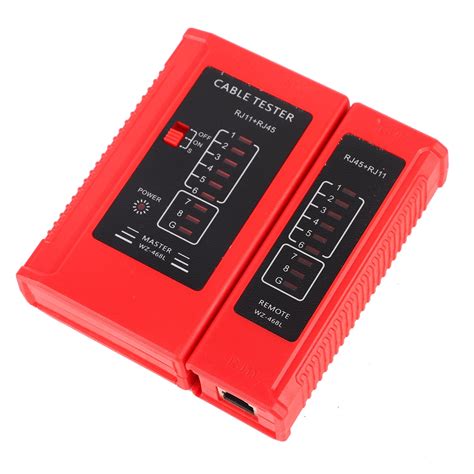

- Cable Tester: A basic tool that checks for continuity and wire mapping. It is useful for quick checks and troubleshooting.

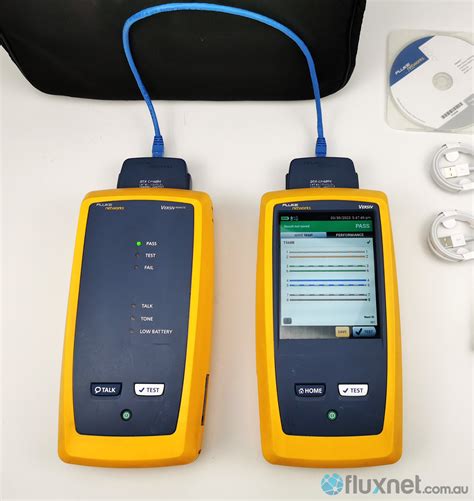

- Cable Certifier: A more advanced tool that performs comprehensive tests, including length, performance, and compliance with industry standards. It is essential for ensuring that your cables meet the required specifications.
- Multimeter: A versatile tool that can measure voltage, current, and resistance. It is useful for diagnosing electrical issues in cables.

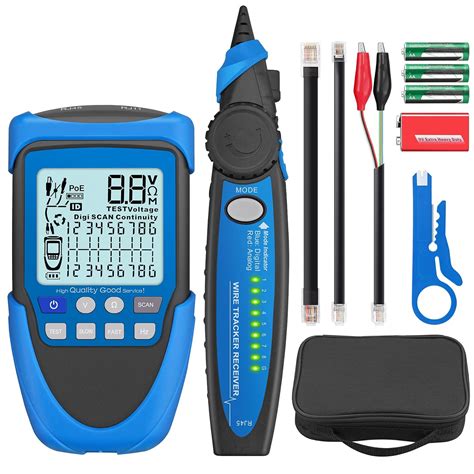

- Tone Generator and Probe: A tool that helps trace cables and identify specific wires within a bundle. It is useful for locating and troubleshooting cables in complex networks.
Steps to Perform a Network Cable Test
Performing a network cable test involves several steps. Here is a detailed guide to help you through the process:
Preparation
Before you begin, gather the necessary tools and ensure that you have a clear understanding of the network layout and the types of cables you will be testing. Make sure the area is safe and free from potential hazards.
Visual Inspection
Start with a visual inspection of the cables. Look for any signs of damage, such as:
- Cuts or tears in the cable jacket.
- Exposed wires or connectors.
- Kinks or sharp bends in the cable.
- Corrosion or discoloration on the connectors.
If you notice any of these issues, the cable may need to be replaced.
Continuity Test

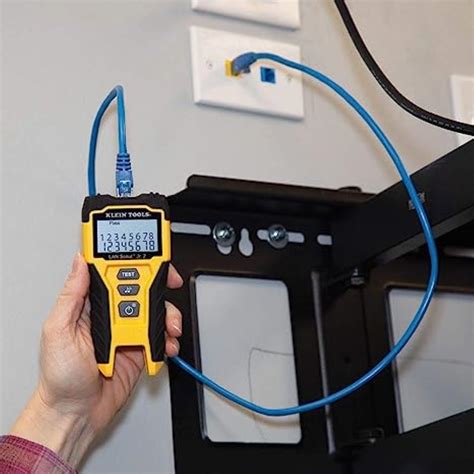

Use a cable tester to perform a continuity test. Connect the tester to both ends of the cable and follow the manufacturer's instructions to check for continuity. The tester will indicate whether the cable is continuous and free of breaks or shorts.
🔍 Note: Ensure that the cable tester is compatible with the type of cable you are testing.
Wire Map Test
Next, perform a wire map test to verify that the wires are correctly connected. Connect the cable tester to both ends of the cable and follow the instructions to check the wire mapping. The tester will display the pinout configuration and indicate any mismatches or errors.
Length Test
Measure the length of the cable using a cable certifier or a length tester. Ensure that the cable meets the required specifications for your network. If the cable is too long or too short, it may not perform as expected.
Cable Performance Test
Finally, perform a cable performance test to evaluate the cable's data transfer rates, signal quality, and interference. Use a cable certifier to run a series of tests and generate a report. The report will provide detailed information about the cable's performance and compliance with industry standards.
Documentation
Document the results of your network cable test for future reference. Include details such as the cable type, length, test results, and any issues or recommendations. This documentation will be useful for troubleshooting and maintaining your network.
Common Issues and Troubleshooting
During a network cable test, you may encounter various issues. Here are some common problems and troubleshooting tips:
- Intermittent Connectivity: This can be caused by loose connections, damaged cables, or interference. Check the cable for physical damage and ensure that the connectors are securely attached.
- Slow Data Transfer Rates: This can be due to cable length, poor quality cables, or interference. Measure the cable length and ensure that it meets the required specifications. Consider using higher-quality cables or shielding to reduce interference.
- No Connectivity: This can be caused by a broken cable, incorrect wiring, or a faulty connector. Perform a continuity test and wire map test to identify the issue. Replace the cable or connector if necessary.
If you are unable to resolve the issue, consult with a network professional for further assistance.
Best Practices for Network Cable Maintenance
To ensure the longevity and performance of your network cables, follow these best practices:
- Regular Inspections: Conduct regular visual inspections of your cables to identify any signs of damage or wear.
- Proper Handling: Handle cables with care to avoid kinks, sharp bends, or excessive twisting. Use cable management solutions to keep cables organized and protected.
- Environmental Considerations: Protect cables from environmental factors such as moisture, extreme temperatures, and physical hazards. Use appropriate cable jackets and shielding to enhance durability.
- Documentation: Maintain detailed documentation of your network cables, including their types, lengths, and locations. This will help in troubleshooting and maintenance.
By following these best practices, you can extend the lifespan of your network cables and ensure reliable network performance.
Conclusion
Performing a network cable test is a critical aspect of maintaining a robust and efficient network. By understanding the different types of cables, the importance of testing, and the steps involved, you can ensure that your network operates at its best. Regular testing and maintenance will help prevent issues, optimize performance, and extend the lifespan of your network cables. Whether you are setting up a new network or troubleshooting an existing one, a thorough network cable test is essential for success.
