Nec Ampacity Table

Understanding the Nec Ampacity Table is crucial for anyone involved in electrical work, whether you're an electrician, engineer, or DIY enthusiast. The National Electrical Code (NEC) provides guidelines for the safe installation of electrical wiring and equipment, and the ampacity table is a key component of these guidelines. This table helps determine the maximum current-carrying capacity of conductors, ensuring that electrical systems are designed and installed safely.

What is the Nec Ampacity Table?

The Nec Ampacity Table is a reference tool that lists the allowable ampacity of conductors based on their size and type. Ampacity refers to the maximum current, in amperes, that a conductor can carry continuously under the conditions of use without exceeding its temperature rating. The table is essential for selecting the appropriate wire size for a given electrical load, ensuring that the wiring can handle the current without overheating and causing a fire hazard.

Understanding Ampacity

Ampacity is a critical concept in electrical engineering. It is defined as the maximum current, in amperes, that a conductor can carry continuously under the conditions of use without exceeding its temperature rating. Several factors influence ampacity, including:

Conductor Material: Different materials, such as copper and aluminum, have different ampacity ratings.
Conductor Size: Larger conductors can carry more current than smaller ones.
Insulation Type: The type of insulation around the conductor affects its ampacity.
Ambient Temperature: Higher ambient temperatures can reduce the ampacity of a conductor.
Number of Conductors: The more conductors bundled together, the higher the temperature rise, which can reduce ampacity.

How to Use the Nec Ampacity Table

Using the Nec Ampacity Table involves several steps. Here’s a guide to help you navigate the table effectively:

Step 1: Determine the Load

First, calculate the total electrical load that the conductor will carry. This involves adding up the amperage of all the devices and appliances that will be connected to the circuit.

Step 2: Select the Conductor Material

Choose the material of the conductor, typically copper or aluminum. Copper is more conductive and has a higher ampacity rating than aluminum of the same size.

Step 3: Choose the Insulation Type

Select the type of insulation for the conductor. Common insulation types include THHN, THWN, and XHHW, each with different ampacity ratings.

Step 4: Consider the Ambient Temperature

Determine the ambient temperature where the conductor will be installed. Higher ambient temperatures require derating the ampacity of the conductor.

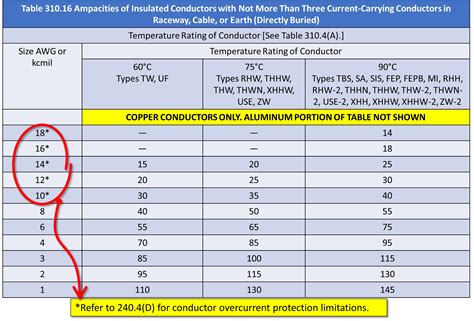

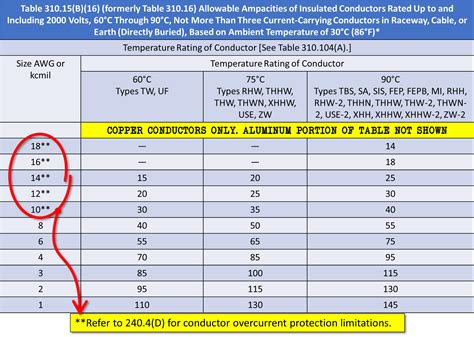

Step 5: Refer to the Nec Ampacity Table

Look up the conductor size in the Nec Ampacity Table based on the material, insulation type, and ambient temperature. The table will provide the maximum allowable ampacity for the conductor under the specified conditions.

🔍 Note: Always round up to the next standard conductor size if the calculated load exceeds the ampacity of the selected conductor.

Example of Using the Nec Ampacity Table

Let’s go through an example to illustrate how to use the Nec Ampacity Table. Suppose you need to install a circuit for a residential kitchen with the following loads:

Refrigerator: 6 amps
Microwave: 10 amps
Dishwasher: 8 amps
Range: 40 amps

Total load = 6 + 10 + 8 + 40 = 64 amps

Assuming you are using copper conductors with THHN insulation and the ambient temperature is 30°C (86°F), you would refer to the Nec Ampacity Table to find the appropriate conductor size. For a 64-amp load, you would need a conductor with an ampacity of at least 64 amps. According to the table, a 6 AWG copper conductor with THHN insulation has an ampacity of 65 amps at 30°C, making it suitable for this application.

Importance of the Nec Ampacity Table

The Nec Ampacity Table is vital for several reasons:

Safety: Ensures that conductors are not overloaded, reducing the risk of fires and electrical hazards.
Efficiency: Helps in selecting the right conductor size, optimizing energy efficiency and reducing costs.
Compliance: Ensures that electrical installations comply with the National Electrical Code, which is essential for passing inspections and obtaining permits.

Factors Affecting Ampacity

Several factors can affect the ampacity of a conductor. Understanding these factors is crucial for accurate calculations and safe installations.

Conductor Material

Different materials have different conductivity properties. Copper is generally preferred for its high conductivity and durability, while aluminum is often used for its cost-effectiveness.

Conductor Size

The size of the conductor, measured in American Wire Gauge (AWG), directly affects its ampacity. Larger conductors can carry more current without overheating.

Insulation Type

The type of insulation around the conductor influences its ampacity. Different insulation materials have varying temperature ratings and thermal resistance properties.

Ambient Temperature

Higher ambient temperatures can reduce the ampacity of a conductor. In hot environments, conductors may need to be derated to prevent overheating.

Number of Conductors

When multiple conductors are bundled together, the heat generated by each conductor can increase the overall temperature, reducing the ampacity. Proper spacing and ventilation are essential to mitigate this effect.

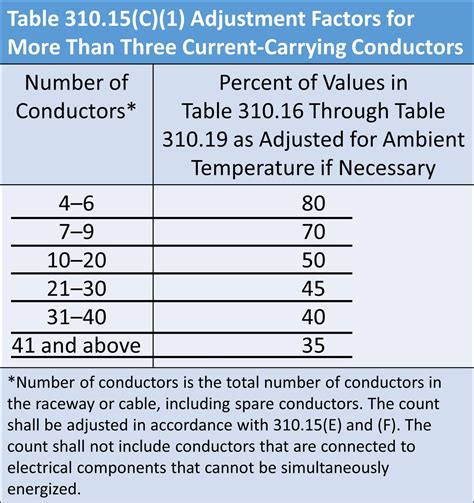

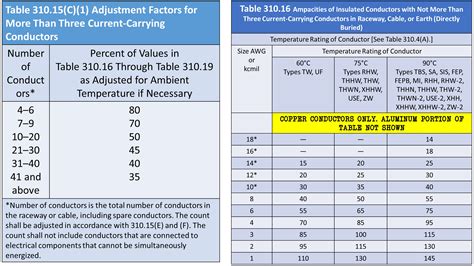

Derating Factors

Derating factors are adjustments made to the ampacity of a conductor based on specific conditions. These factors ensure that the conductor can safely carry the current under adverse conditions. Common derating factors include:

Ambient Temperature: Higher ambient temperatures require derating the ampacity.
Number of Conductors: More conductors bundled together require derating.
Termination Temperature: Higher termination temperatures require derating.

For example, if the ambient temperature is 40°C (104°F), the ampacity of a conductor may need to be derated by 20%. Similarly, if more than three current-carrying conductors are bundled together, the ampacity may need to be derated by 30%.

🔍 Note: Always refer to the specific derating factors provided in the NEC for accurate calculations.

Common Mistakes to Avoid

When using the Nec Ampacity Table, it’s essential to avoid common mistakes that can lead to unsafe installations. Some of these mistakes include:

Ignoring Derating Factors: Failing to account for derating factors can result in conductors being overloaded.
Incorrect Conductor Size: Selecting a conductor size that is too small for the load can cause overheating and potential fires.

Incorrect Insulation Type:

Conclusion

The Nec Ampacity Table is an indispensable tool for anyone involved in electrical work. It provides the necessary guidelines for selecting the appropriate conductor size based on the load, material, insulation type, and ambient temperature. By understanding and correctly using the ampacity table, you can ensure that your electrical installations are safe, efficient, and compliant with the National Electrical Code. Always refer to the latest edition of the NEC and consult with a licensed electrician if you are unsure about any aspect of your electrical installation.
