Naca 0012 Airfoil

In the realm of aerodynamics, the Naca 0012 Airfoil stands as a cornerstone of modern aviation design. This symmetrical airfoil, part of the NACA (National Advisory Committee for Aeronautics) series, has been extensively studied and utilized in various applications, from aircraft wings to wind turbine blades. Its simplicity and efficiency make it a favorite among engineers and researchers alike. This post delves into the intricacies of the Naca 0012 Airfoil, exploring its design, applications, and the science behind its performance.

Table of Contents

Understanding the Naca 0012 Airfoil

The Naca 0012 Airfoil is a symmetrical airfoil, meaning its upper and lower surfaces are mirror images of each other. The "00" in its designation indicates that it is a symmetrical airfoil, while the "12" refers to the maximum thickness of the airfoil as a percentage of its chord length. In this case, the maximum thickness is 12% of the chord length. This design provides a balance between lift and drag, making it suitable for a wide range of applications.

The Naca 0012 Airfoil is characterized by its smooth, curved shape, which helps to minimize turbulence and maximize lift. The leading edge is rounded, which reduces drag and improves aerodynamic efficiency. The trailing edge is sharp, which helps to delay the onset of flow separation and maintain lift at higher angles of attack.

Design and Geometry

The geometry of the Naca 0012 Airfoil is defined by a series of mathematical equations that describe its shape. The airfoil's coordinates can be generated using these equations, which are based on the NACA four-digit series. The equations take into account the camber line, thickness distribution, and other parameters that define the airfoil's shape.

To generate the coordinates of the Naca 0012 Airfoil, you can use the following equations:

📝 Note: The equations below are provided for educational purposes. For precise calculations, refer to specialized aerodynamics software or textbooks.

The camber line for a symmetrical airfoil is a straight line, so the camber is zero. The thickness distribution is given by the following equation:

t/c = 5.93017372 * (x/c)^0.5 - 9.34473053 * (x/c) + 12.2104632 * (x/c)^2 - 9.37734174 * (x/c)^3 + 2.71520623 * (x/c)^4 - 0.25316930 * (x/c)^5

Where:

t/c is the thickness ratio,
x/c is the chordwise position,
t is the thickness at a given point, and
c is the chord length.

The coordinates of the upper and lower surfaces can be obtained by adding and subtracting the thickness distribution from the camber line, respectively.

Applications of the Naca 0012 Airfoil

The Naca 0012 Airfoil is widely used in various aeronautical and aerospace applications due to its favorable aerodynamic properties. Some of the key applications include:

Aircraft Wings: The Naca 0012 Airfoil is commonly used in the design of aircraft wings, particularly for general aviation and small aircraft. Its symmetrical shape provides good lift-to-drag ratio, making it suitable for a wide range of flight conditions.
Wind Turbine Blades: The airfoil's efficiency in generating lift makes it an ideal choice for wind turbine blades. Its symmetrical design helps to minimize drag and maximize energy capture from the wind.
Model Aircraft: Due to its simplicity and effectiveness, the Naca 0012 Airfoil is often used in the design of model aircraft. Its performance characteristics make it a popular choice among hobbyists and enthusiasts.
Research and Education: The Naca 0012 Airfoil is frequently used in aerodynamics research and education. Its well-documented properties make it a valuable tool for studying the principles of aerodynamics and validating computational fluid dynamics (CFD) simulations.

Aerodynamic Performance

The aerodynamic performance of the Naca 0012 Airfoil is characterized by its lift, drag, and moment coefficients. These coefficients are functions of the angle of attack, Reynolds number, and other flow parameters. The lift coefficient (Cl) represents the lift generated by the airfoil, while the drag coefficient (Cd) represents the drag. The moment coefficient (Cm) represents the pitching moment about the aerodynamic center.

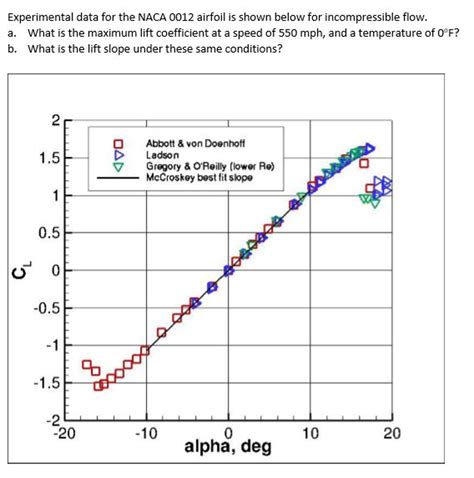

The lift coefficient of the Naca 0012 Airfoil increases linearly with the angle of attack up to a certain point, after which it reaches a maximum and then decreases. The drag coefficient increases with the angle of attack, and the moment coefficient varies depending on the location of the aerodynamic center.

The following table provides a summary of the aerodynamic coefficients for the Naca 0012 Airfoil at different angles of attack and Reynolds numbers:

Angle of Attack (degrees)	Reynolds Number	Lift Coefficient (Cl)	Drag Coefficient (Cd)	Moment Coefficient (Cm)
0	1,000,000	0.28	0.008	-0.08
5	1,000,000	0.85	0.012	-0.06
10	1,000,000	1.35	0.020	-0.04
15	1,000,000	1.45	0.035	-0.02

These values are approximate and can vary depending on the specific flow conditions and experimental setup. For precise data, refer to experimental results or CFD simulations.

Flow Visualization

Flow visualization techniques are essential for understanding the behavior of the Naca 0012 Airfoil in different flow conditions. These techniques help to identify flow separation, vortices, and other phenomena that affect the airfoil's performance. Common flow visualization methods include:

Smoke Trails: Smoke trails are used to visualize the flow patterns around the airfoil. The smoke is injected into the flow and follows the streamlines, revealing the flow structure.
Tufts: Tufts are small, flexible fibers attached to the airfoil surface. They align with the flow direction, providing a visual indication of the flow separation and reattachment points.
Oil Flow Visualization: Oil flow visualization involves applying a mixture of oil and dye to the airfoil surface. The oil flows with the surface shear stress, revealing the flow patterns and separation points.
Particle Image Velocimetry (PIV): PIV is a non-intrusive technique that uses laser light and particle seeding to measure the flow velocity field. It provides detailed information about the flow structure and turbulence.

These visualization techniques help to validate CFD simulations and provide insights into the aerodynamic performance of the Naca 0012 Airfoil.

Computational Fluid Dynamics (CFD) Analysis

Computational Fluid Dynamics (CFD) is a powerful tool for analyzing the aerodynamic performance of the Naca 0012 Airfoil. CFD simulations provide detailed information about the flow field, pressure distribution, and aerodynamic forces acting on the airfoil. These simulations help to optimize the airfoil design and predict its performance in different flow conditions.

To perform a CFD analysis of the Naca 0012 Airfoil, follow these steps:

Geometry Creation: Create the geometry of the Naca 0012 Airfoil using CAD software or generate the coordinates using the mathematical equations described earlier.
Mesh Generation: Generate a computational mesh around the airfoil. The mesh should be fine enough to capture the flow details, particularly near the airfoil surface.
Boundary Conditions: Define the boundary conditions, including the inflow velocity, outflow pressure, and airfoil surface conditions. Specify the turbulence model and other flow parameters.
Solver Settings: Choose the appropriate solver settings, including the numerical scheme, convergence criteria, and time-stepping parameters.
Simulation: Run the CFD simulation and monitor the convergence of the solution. Post-process the results to extract the aerodynamic coefficients and flow visualization.

📝 Note: CFD analysis requires specialized software and expertise. For accurate results, consult with aerodynamics experts or refer to CFD textbooks.

CFD simulations provide valuable insights into the aerodynamic performance of the Naca 0012 Airfoil and help to optimize its design for specific applications.

Experimental Validation

Experimental validation is crucial for verifying the aerodynamic performance of the Naca 0012 Airfoil. Wind tunnel tests are commonly used to measure the lift, drag, and moment coefficients under controlled flow conditions. These experiments provide accurate data for validating CFD simulations and improving the airfoil design.

To conduct a wind tunnel test of the Naca 0012 Airfoil, follow these steps:

Model Preparation: Fabricate a model of the Naca 0012 Airfoil using materials such as wood, foam, or 3D-printed parts. Ensure the model is smooth and accurate.
Wind Tunnel Setup: Install the model in the wind tunnel and connect it to a force balance. The force balance measures the lift, drag, and moment forces acting on the airfoil.
Flow Conditions: Set the desired flow conditions, including the inflow velocity, Reynolds number, and angle of attack. Ensure the flow is uniform and free from turbulence.
Data Acquisition: Acquire the force and moment data using the force balance and data acquisition system. Record the data for different flow conditions and angles of attack.
Data Analysis: Analyze the data to extract the aerodynamic coefficients and compare them with CFD simulations. Validate the results and identify any discrepancies.

📝 Note: Wind tunnel tests require specialized equipment and expertise. For accurate results, consult with aerodynamics experts or refer to experimental aerodynamics textbooks.

Experimental validation provides reliable data for improving the design of the Naca 0012 Airfoil and ensuring its performance in real-world applications.

Optimization and Modifications

The Naca 0012 Airfoil can be optimized and modified to improve its performance for specific applications. Some common modifications include:

Camber Modification: Adding camber to the airfoil can increase the lift coefficient and improve the lift-to-drag ratio. This modification is useful for applications requiring higher lift, such as aircraft wings.
Thickness Modification: Changing the thickness distribution can affect the airfoil's structural strength and aerodynamic performance. Thicker airfoils provide better structural integrity but may have higher drag.
Leading Edge Modification: Modifying the leading edge shape can improve the airfoil's performance at high angles of attack. Rounded or sharp leading edges can delay flow separation and reduce drag.
Trailing Edge Modification: Modifying the trailing edge shape can affect the airfoil's moment coefficient and stability. Sharp or rounded trailing edges can improve the airfoil's performance in specific flow conditions.

These modifications can be analyzed using CFD simulations and validated through wind tunnel tests. The optimized airfoil design can then be implemented in real-world applications to achieve the desired performance.

In summary, the Naca 0012 Airfoil is a versatile and efficient airfoil design that has been extensively studied and utilized in various aeronautical and aerospace applications. Its symmetrical shape, favorable aerodynamic properties, and well-documented performance make it a valuable tool for engineers and researchers. By understanding the design, geometry, and aerodynamic performance of the Naca 0012 Airfoil, one can optimize its design for specific applications and achieve the desired performance. The use of CFD simulations and experimental validation provides reliable data for improving the airfoil design and ensuring its effectiveness in real-world scenarios. The Naca 0012 Airfoil continues to be a cornerstone of modern aviation design, contributing to the development of efficient and high-performance aircraft and wind turbines. Its simplicity and effectiveness make it a popular choice among engineers and enthusiasts, and its continued study and optimization will undoubtedly lead to further advancements in the field of aerodynamics.
