N Channel Mosfet

In the realm of electronics, the N Channel MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) stands as a cornerstone component, widely used in various applications due to its efficiency and versatility. This blog post delves into the intricacies of the N Channel MOSFET, exploring its structure, functionality, and practical applications. We will also discuss how to select the right N Channel MOSFET for your projects and provide a step-by-step guide on how to use it effectively.

Table of Contents

Understanding the N Channel MOSFET

The N Channel MOSFET is a type of transistor that uses an electric field to control the flow of electrons. It consists of three main terminals: the source, drain, and gate. The gate terminal controls the flow of current between the source and drain. When a voltage is applied to the gate, it creates an electric field that allows current to flow from the drain to the source.

There are two primary types of MOSFETs: enhancement-mode and depletion-mode. Enhancement-mode N Channel MOSFETs are normally off and require a positive voltage at the gate to conduct current. Depletion-mode N Channel MOSFETs are normally on and require a negative voltage at the gate to turn off.

Structure and Functionality

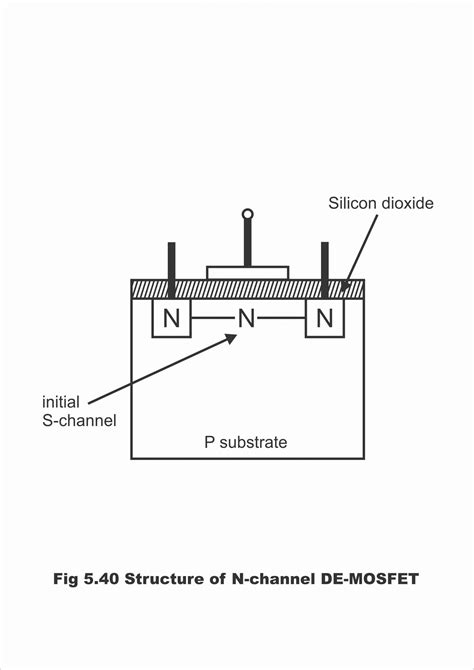

The structure of an N Channel MOSFET includes a p-type substrate with two n-type regions (source and drain) and a gate electrode separated by an insulating layer (usually silicon dioxide). The gate voltage controls the formation of a conductive channel between the source and drain, allowing current to flow.

Here is a simplified breakdown of the N Channel MOSFET structure:

Source (S): The terminal through which electrons enter the channel.
Drain (D): The terminal through which electrons exit the channel.
Gate (G): The terminal that controls the flow of electrons by applying a voltage.
Substrate (B): The body of the transistor, which is usually connected to the source for stability.

Key Parameters of N Channel MOSFETs

When selecting an N Channel MOSFET, several key parameters must be considered to ensure it meets the requirements of your application. These parameters include:

Drain-Source Voltage (VDSS): The maximum voltage that can be applied between the drain and source.
Gate-Source Voltage (VGS): The voltage applied to the gate to control the channel.
Drain Current (ID): The current flowing from the drain to the source.
Gate Threshold Voltage (Vth): The minimum gate voltage required to create a conductive channel.
On-Resistance (RDS(on)): The resistance between the drain and source when the MOSFET is fully on.

Understanding these parameters is crucial for selecting the right N Channel MOSFET for your specific application.

Applications of N Channel MOSFETs

The N Channel MOSFET is used in a wide range of applications due to its high efficiency and low power consumption. Some of the most common applications include:

Switching Circuits: N Channel MOSFETs are often used as switches in power supplies and motor control circuits.
Amplifiers: They are used in analog circuits to amplify signals.
Power Management: N Channel MOSFETs are essential in power management systems, such as voltage regulators and battery chargers.
RF Circuits: They are used in radio frequency (RF) circuits for signal amplification and switching.
Automotive Electronics: N Channel MOSFETs are used in various automotive applications, including engine control units and lighting systems.

Selecting the Right N Channel MOSFET

Choosing the right N Channel MOSFET involves considering several factors, including the voltage and current requirements of your application, the switching frequency, and the thermal management needs. Here are some steps to help you select the appropriate N Channel MOSFET:

Determine the Voltage and Current Requirements: Ensure the N Channel MOSFET can handle the maximum voltage and current in your circuit.
Consider the Switching Frequency: Higher switching frequencies may require MOSFETs with lower gate charges and faster switching times.
Evaluate Thermal Management: Ensure the MOSFET can dissipate the heat generated during operation. This may involve selecting a MOSFET with a lower on-resistance or using a heat sink.
Check the Gate Drive Requirements: Ensure your control circuit can provide the necessary gate drive voltage and current.

Here is a table summarizing the key parameters to consider when selecting an N Channel MOSFET:

Parameter	Description	Importance
Drain-Source Voltage (VDSS)	The maximum voltage between the drain and source.	High
Gate-Source Voltage (VGS)	The voltage applied to the gate to control the channel.	High
Drain Current (ID)	The current flowing from the drain to the source.	High
Gate Threshold Voltage (Vth)	The minimum gate voltage required to create a conductive channel.	Medium
On-Resistance (RDS(on))	The resistance between the drain and source when the MOSFET is fully on.	High

💡 Note: Always refer to the datasheet of the N Channel MOSFET for detailed specifications and operating conditions.

Using N Channel MOSFETs in Circuits

To use an N Channel MOSFET effectively in your circuits, follow these steps:

Design the Circuit: Determine the circuit requirements, including voltage, current, and switching frequency.
Select the MOSFET: Choose an N Channel MOSFET that meets the circuit requirements based on the parameters discussed earlier.
Design the Gate Drive Circuit: Ensure the gate drive circuit can provide the necessary voltage and current to control the MOSFET.
Implement Thermal Management: Use heat sinks or other cooling methods to dissipate heat generated during operation.
Test the Circuit: Verify the circuit's performance and make any necessary adjustments.

Here is an example of a simple switching circuit using an N Channel MOSFET:

In this circuit, the N Channel MOSFET acts as a switch controlled by the gate voltage. When the gate voltage is high, the MOSFET conducts, allowing current to flow from the drain to the source. When the gate voltage is low, the MOSFET is off, and no current flows.

💡 Note: Ensure proper grounding and isolation to prevent short circuits and damage to the MOSFET.

When working with N Channel MOSFETs, it's essential to understand the gate drive requirements. The gate drive circuit must provide sufficient voltage and current to turn the MOSFET on and off efficiently. Here are some key points to consider:

Gate Voltage (VGS): The gate voltage must be higher than the threshold voltage (Vth) to turn the MOSFET on.
Gate Current (IG): The gate current must be sufficient to charge and discharge the gate capacitance quickly.
Gate Resistance (RG): The gate resistance should be low enough to minimize switching losses but high enough to prevent excessive gate current.

Proper thermal management is crucial for the reliable operation of N Channel MOSFETs. High power dissipation can lead to overheating, which can degrade the MOSFET's performance and reduce its lifespan. Here are some thermal management techniques:

Heat Sinks: Use heat sinks to dissipate heat from the MOSFET.
Thermal Pads: Use thermal pads to improve heat transfer between the MOSFET and the heat sink.
Forced Air Cooling: Use fans or other forced air cooling methods to enhance heat dissipation.
Thermal Monitoring: Monitor the MOSFET's temperature and adjust the cooling methods as needed.

By following these steps and considerations, you can effectively use N Channel MOSFETs in your circuits, ensuring reliable and efficient operation.

In conclusion, the N Channel MOSFET is a versatile and efficient component widely used in various electronic applications. Understanding its structure, functionality, and key parameters is essential for selecting the right MOSFET for your projects. By following the steps outlined in this post, you can effectively use N Channel MOSFETs in your circuits, ensuring reliable and efficient operation. Whether you’re designing switching circuits, amplifiers, or power management systems, the N Channel MOSFET is a valuable component to have in your toolkit.
