Understanding how to use a multimeter effectively is crucial for anyone working with electronics. One of the fundamental measurements you'll need to make is reading direct current (DC) voltage. The multimeter direct current symbol is essential for identifying the correct setting on your multimeter. This guide will walk you through the process of measuring DC voltage, ensuring you get accurate readings every time.
Understanding the Multimeter Direct Current Symbol

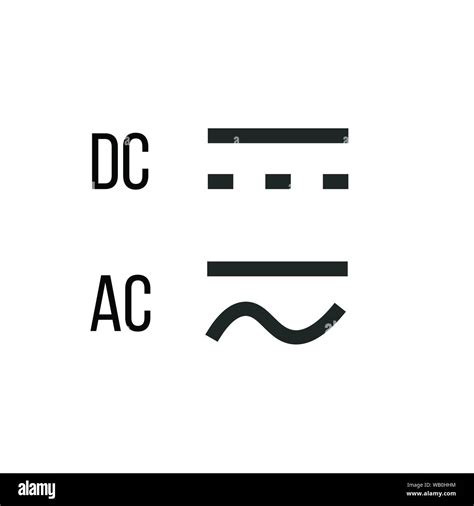

The multimeter direct current symbol is typically represented by a straight line with arrows pointing in opposite directions, often accompanied by the letters “DC.” This symbol indicates that the multimeter is set to measure direct current voltage. It’s important to familiarize yourself with this symbol to avoid incorrect measurements.
Setting Up Your Multimeter
Before you start measuring, you need to set up your multimeter correctly. Here are the steps to follow:
- Turn on your multimeter.
- Locate the dial or selector switch and rotate it to the DC voltage setting. This is usually marked with the multimeter direct current symbol (a straight line with arrows) and a “V” for voltage.
- Ensure the probes are correctly inserted into the right ports. The red probe goes into the port marked with a “VΩmA” or a similar label, and the black probe goes into the “COM” port.
Measuring DC Voltage
Once your multimeter is set up, you can proceed to measure the DC voltage. Follow these steps:
- Identify the positive and negative terminals of the circuit or component you are measuring.
- Connect the red probe to the positive terminal and the black probe to the negative terminal.
- Read the display on your multimeter. The value shown will be the DC voltage of the circuit or component.
🔍 Note: Always ensure that the voltage range on your multimeter is set appropriately. If you're unsure, start with the highest range and then adjust to a lower range for more precise readings.
Common Mistakes to Avoid
Measuring DC voltage with a multimeter can be straightforward, but there are common mistakes that can lead to inaccurate readings:
- Incorrect Probe Placement: Ensure the red probe is connected to the positive terminal and the black probe to the negative terminal. Reversing the probes will give you a negative reading, which can be confusing.
- Wrong Range Setting: If the voltage range is set too low, it can cause the multimeter to display an overload error. Conversely, setting it too high can result in less precise readings.
- Faulty Probes: Damaged or poorly connected probes can lead to inaccurate readings. Regularly check your probes for any signs of wear or damage.
Interpreting the Results
Once you have taken your measurement, interpreting the results is the next step. Here’s what you need to know:
- Positive Reading: A positive reading indicates that the voltage is flowing in the correct direction.
- Negative Reading: A negative reading means the probes are reversed. Simply swap the probes to get a positive reading.
- Zero Reading: A zero reading could mean there is no voltage present, or there might be an issue with the circuit or the multimeter itself.
🔍 Note: If you consistently get zero readings, check the circuit for any breaks or loose connections. Also, ensure your multimeter is functioning correctly by testing it on a known voltage source.
Advanced Measurements
For more advanced measurements, you might need to delve deeper into the capabilities of your multimeter. Here are some additional tips:
- Continuity Testing: Use the continuity setting to check for breaks in a circuit. This is useful for troubleshooting faulty wires or components.
- Resistance Measurement: Measure the resistance of components like resistors, capacitors, and inductors. This can help you identify faulty components.
- Current Measurement: Switch to the current setting to measure the flow of electrons in a circuit. This is useful for diagnosing power supply issues.
Safety Precautions
Safety is paramount when working with electronics. Here are some essential safety precautions to keep in mind:
- Avoid High Voltages: Never measure voltages higher than your multimeter’s rating. This can damage the multimeter and pose a safety risk.
- Insulated Probes: Use probes with insulated handles to prevent accidental shocks.
- Proper Grounding: Ensure your circuit is properly grounded to avoid electrical hazards.
🔍 Note: Always double-check your connections and settings before taking measurements. A small mistake can lead to significant issues.
Troubleshooting Common Issues
Even with careful setup, you might encounter issues. Here are some common problems and their solutions:
| Issue | Solution |
|---|---|
| Incorrect Reading | Check probe placement and voltage range. Ensure the circuit is functioning correctly. |
| Overload Error | Increase the voltage range setting. If the error persists, check for short circuits. |
| Zero Reading | Verify the circuit is powered on and check for loose connections. Test the multimeter on a known voltage source. |
By following these troubleshooting steps, you can quickly identify and resolve common issues, ensuring accurate measurements every time.
Measuring DC voltage with a multimeter is a fundamental skill for anyone working with electronics. By understanding the multimeter direct current symbol and following the steps outlined in this guide, you can ensure accurate and reliable measurements. Whether you’re a hobbyist or a professional, mastering this skill will enhance your ability to diagnose and repair electronic circuits effectively.
