Woodworking is an art that has been practiced for centuries, and one of the most fundamental and enduring techniques in this craft is the mortise and tenon joint. This classic joinery method has stood the test of time due to its strength, durability, and versatility. Whether you're a seasoned woodworker or just starting out, understanding the mortise and tenon joint is essential for creating sturdy and long-lasting furniture and structures.
Understanding the Mortise and Tenon Joint

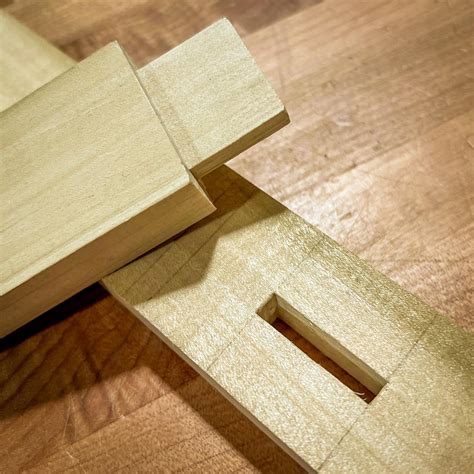

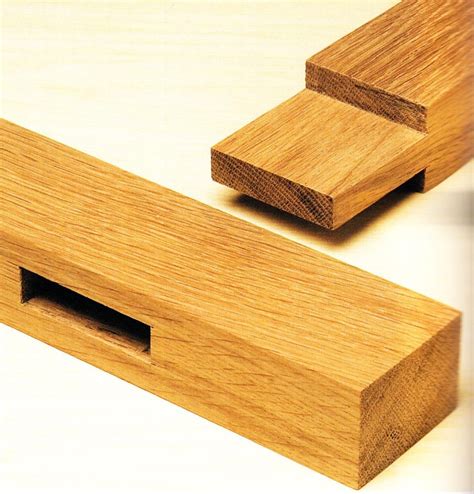

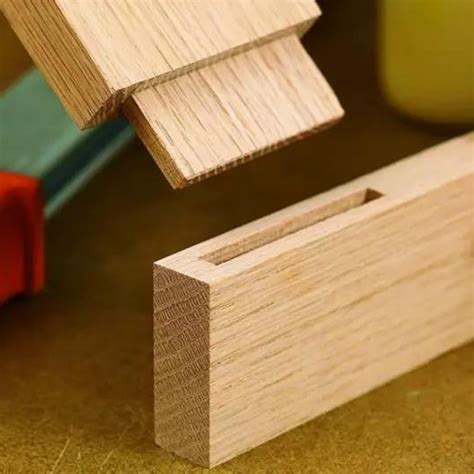

The mortise and tenon joint is a simple yet effective way to connect two pieces of wood. It consists of two main components: the mortise and the tenon. The mortise is a hole or slot cut into one piece of wood, while the tenon is a protruding piece of wood that fits snugly into the mortise. This interlocking design provides a strong and stable connection that can withstand significant stress and weight.

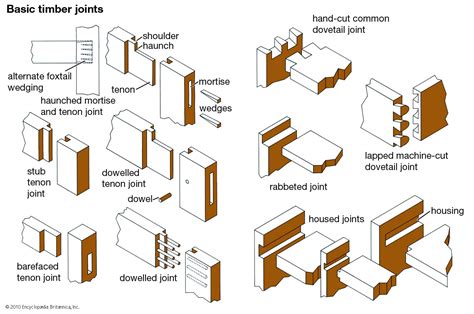

Types of Mortise and Tenon Joints
There are several variations of the mortise and tenon joint, each suited to different applications. Some of the most common types include:

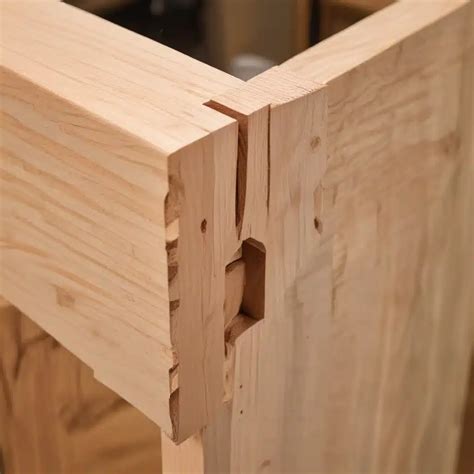

- Through Mortise and Tenon: In this type, the mortise passes completely through the piece of wood, and the tenon is visible on both sides.
- Blind Mortise and Tenon: The mortise does not pass all the way through the wood, and the tenon is hidden from one side.
- Stub Mortise and Tenon: Similar to the blind mortise and tenon, but the tenon is shorter and does not extend the full thickness of the wood.
- Haunched Mortise and Tenon: This variation includes an additional shoulder or "haunch" on the tenon, providing extra support and stability.
Tools Required for Mortise and Tenon Joints
Creating a mortise and tenon joint requires a set of specialized tools. Here are some of the essential tools you'll need:
- Chisels: High-quality chisels are crucial for cutting the mortise and shaping the tenon.
- Mallet: Used to drive the chisel into the wood.
- Saw: A handsaw or a power saw for cutting the tenon.
- Router: For creating precise mortises, especially in larger projects.
- Clamps: To hold the pieces together while the glue dries.
- Marking Gauge: For accurately marking the depth of the mortise and the length of the tenon.
Step-by-Step Guide to Creating a Mortise and Tenon Joint
Creating a mortise and tenon joint involves several steps. Here's a detailed guide to help you through the process:
Step 1: Marking the Wood
Begin by marking the locations for the mortise and tenon on your wood pieces. Use a marking gauge to ensure accurate measurements. The mortise should be slightly wider and deeper than the tenon to allow for a snug fit.
Step 2: Cutting the Mortise
Using a chisel and mallet, carefully cut out the mortise. Start by making a series of shallow cuts around the perimeter of the marked area, then gradually deepen the cuts until you reach the desired depth. Be sure to keep your chisel sharp for clean cuts.
🛠️ Note: Always wear safety glasses and gloves when using sharp tools.
Step 3: Cutting the Tenon
Next, cut the tenon on the corresponding piece of wood. Use a saw to make the initial cuts, then refine the shape with a chisel. The tenon should fit snugly into the mortise without being too tight or too loose.

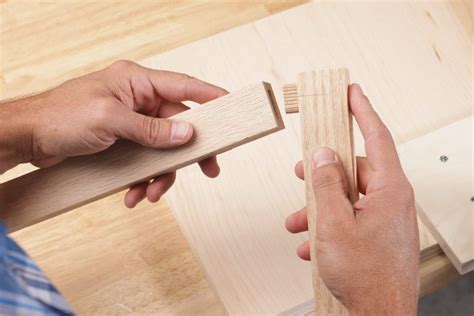

Step 4: Fitting the Joint
Test the fit of the joint by inserting the tenon into the mortise. If necessary, make adjustments to ensure a tight fit. You may need to use sandpaper or a chisel to fine-tune the dimensions.
Step 5: Gluing and Clamping
Apply wood glue to the tenon and insert it into the mortise. Use clamps to hold the pieces together firmly while the glue dries. Follow the manufacturer's instructions for the recommended drying time.
🛠️ Note: Wipe away any excess glue with a damp cloth before it dries to prevent a messy finish.
Applications of Mortise and Tenon Joints
The mortise and tenon joint is incredibly versatile and can be used in a wide range of woodworking projects. Some common applications include:
- Furniture Making: Chairs, tables, and cabinets often use mortise and tenon joints for their strength and durability.
- Door and Window Frames: These joints are ideal for creating sturdy frames that can withstand daily use.
- Cabinets and Shelves: The joint provides a strong connection for supporting heavy loads.
- Framing Structures: In construction, mortise and tenon joints are used to build frames for walls, roofs, and other structural elements.
Tips for Achieving a Perfect Mortise and Tenon Joint
Creating a flawless mortise and tenon joint requires precision and patience. Here are some tips to help you achieve the best results:
- Use Sharp Tools: Dull tools can make the process more difficult and result in uneven cuts.
- Measure Accurately: Double-check your measurements to ensure a perfect fit.
- Test the Fit: Regularly test the fit of the joint as you work to make any necessary adjustments.
- Use Clamps: Clamps help hold the pieces together while the glue dries, ensuring a strong bond.
- Sand Smoothly: After the glue has dried, sand the joint to achieve a smooth finish.
Common Mistakes to Avoid
Even experienced woodworkers can make mistakes when creating a mortise and tenon joint. Here are some common pitfalls to avoid:
- Inaccurate Measurements: Poor measurements can lead to a loose or tight fit, compromising the strength of the joint.
- Rushing the Process: Taking shortcuts can result in uneven cuts and a weak joint.
- Ignoring Safety: Always wear protective gear and follow safety guidelines when using sharp tools.
- Not Testing the Fit: Regularly testing the fit of the joint ensures that you catch any issues early.
Advanced Techniques for Mortise and Tenon Joints
For those looking to take their woodworking skills to the next level, there are several advanced techniques for creating mortise and tenon joints. These techniques can enhance the strength and aesthetics of your projects:
- Haunched Tenons: Adding a haunch to the tenon provides extra support and stability.
- Dovetailed Tenons: Incorporating dovetails into the tenon creates a stronger and more decorative joint.

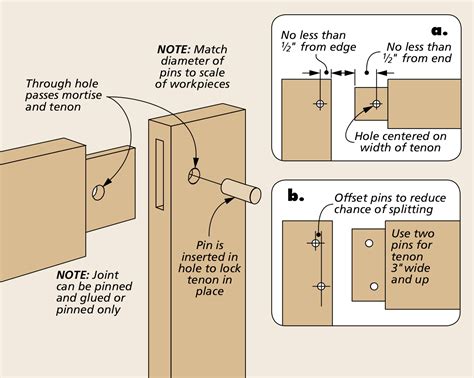

- Pegged Tenons: Using wooden pegs to secure the tenon in the mortise adds an extra layer of strength.
- Through Tenons: Extending the tenon through the mortise and trimming it flush with the surface creates a clean, modern look.
Maintaining Mortise and Tenon Joints
Proper maintenance is essential for ensuring the longevity of your mortise and tenon joints. Here are some tips for keeping your joints in top condition:
- Regular Inspection: Periodically check your joints for signs of wear or damage.
- Avoid Excessive Moisture: Keep your woodwork dry to prevent warping and rot.
- Use Protective Finishes: Apply a protective finish to shield the wood from moisture and UV damage.
- Tighten Loose Joints: If a joint becomes loose, use clamps to tighten it and apply additional glue if necessary.
In conclusion, the mortise and tenon joint is a timeless and versatile technique in woodworking. Its strength, durability, and versatility make it an essential skill for any woodworker. By understanding the different types of mortise and tenon joints, using the right tools, and following a step-by-step process, you can create sturdy and long-lasting connections for your woodworking projects. Whether you’re building furniture, frames, or structural elements, mastering the mortise and tenon joint will enhance your woodworking skills and the quality of your work.
