Understanding the concept of moment of inertia is crucial in various fields of engineering and physics, particularly when dealing with the rotational dynamics of objects. The moment of inertia rectangle is a specific case that often arises in structural engineering and mechanical design. This post will delve into the fundamentals of the moment of inertia, focusing on how it applies to rectangles, and provide practical examples and calculations to illustrate these concepts.
Understanding Moment of Inertia
The moment of inertia, often denoted by the symbol I, is a measure of an object’s resistance to changes in its rotation. It is analogous to mass in linear motion, where mass resists changes in linear velocity. In rotational motion, the moment of inertia resists changes in angular velocity. The formula for the moment of inertia of a point mass is given by:
I = mr2
where m is the mass of the object and r is the perpendicular distance from the axis of rotation to the point mass.
The Moment of Inertia of a Rectangle
When dealing with extended objects like rectangles, the moment of inertia is calculated by integrating the contributions of all the infinitesimal mass elements that make up the object. For a rectangle, the moment of inertia about an axis perpendicular to its plane and passing through its centroid (center of mass) is given by:
Ixx = bh3/12
where b is the base and h is the height of the rectangle.
Calculating the Moment of Inertia for Different Axes
The moment of inertia can be calculated about different axes. For a rectangle, the moment of inertia about the centroidal axes (axes passing through the centroid) is straightforward. However, if the axis of rotation is not passing through the centroid, the parallel axis theorem (also known as the Steiner’s theorem) is used. This theorem states that the moment of inertia about any axis is equal to the moment of inertia about a parallel axis passing through the centroid plus the product of the mass of the object and the square of the distance between the two axes.
The formula for the parallel axis theorem is:
Inew = Icentroid + md2
where Inew is the moment of inertia about the new axis, Icentroid is the moment of inertia about the centroidal axis, m is the mass of the object, and d is the distance between the two axes.
Practical Examples
Let’s consider a few practical examples to illustrate the calculation of the moment of inertia for a rectangle.
Example 1: Moment of Inertia About the Centroidal Axis
Consider a rectangle with a base b = 4 meters and a height h = 2 meters. The moment of inertia about the centroidal axis (perpendicular to the plane and passing through the centroid) is calculated as follows:
Ixx = bh3/12 = (4)(2)3/12 = 8⁄3 m4
Example 2: Moment of Inertia About a Non-Centroidal Axis
Now, consider the same rectangle, but we want to find the moment of inertia about an axis that is parallel to the centroidal axis but 1 meter away from it. Using the parallel axis theorem:
Inew = Icentroid + md2
First, we need to find the mass of the rectangle. Assuming the density ρ is 1 kg/m2, the mass m is:
m = ρbh = (1)(4)(2) = 8 kg
Now, applying the parallel axis theorem:
Inew = (8⁄3) + (8)(1)2 = 8⁄3 + 8 = 32⁄3 m4
Applications of Moment of Inertia in Engineering
The concept of moment of inertia rectangle is widely used in various engineering disciplines. Here are some key applications:
- Structural Engineering: In the design of buildings and bridges, the moment of inertia is crucial for determining the deflection and stress distribution under loads.
- Mechanical Engineering: In the design of rotating machinery, such as flywheels and turbines, the moment of inertia affects the rotational dynamics and stability.
- Aerospace Engineering: In the design of aircraft and spacecraft, the moment of inertia is essential for understanding the rotational behavior and control systems.
Important Formulas and Equations

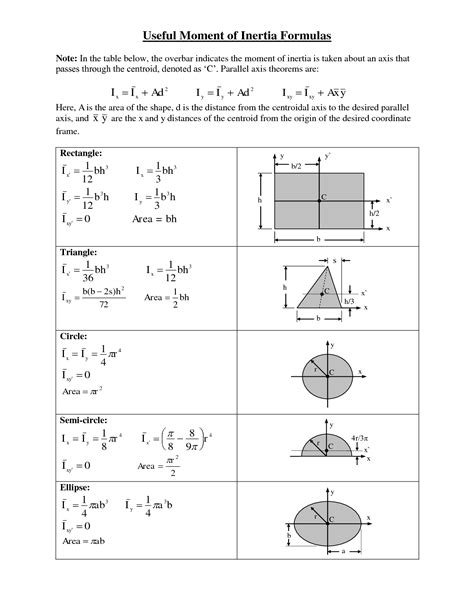

Here are some important formulas and equations related to the moment of inertia of a rectangle:
| Formula | Description |
|---|---|
| Ixx = bh3/12 | Moment of inertia about the centroidal axis (perpendicular to the plane) |
| Iyy = b3h/12 | Moment of inertia about the centroidal axis (parallel to the base) |
| Inew = Icentroid + md2 | Parallel axis theorem |
📝 Note: The formulas provided are for a rectangle with uniform density. For non-uniform density or different shapes, the calculations may vary.

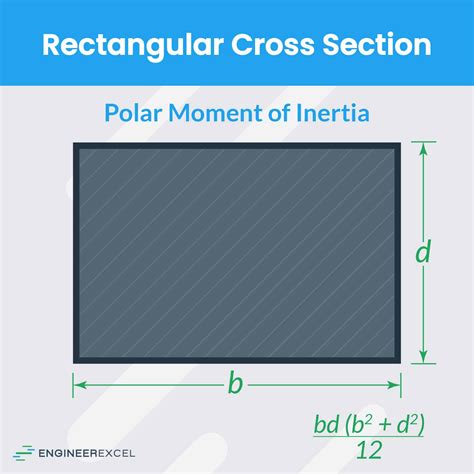

In addition to the moment of inertia, other properties such as the polar moment of inertia and the radius of gyration are also important in rotational dynamics. The polar moment of inertia is the moment of inertia about an axis perpendicular to the plane of the object, while the radius of gyration is a measure of the distribution of mass around the axis of rotation.
Understanding the moment of inertia rectangle and its applications is essential for engineers and physicists working in various fields. By mastering the concepts and formulas related to the moment of inertia, one can design more efficient and stable structures and machinery. The practical examples and calculations provided in this post should serve as a solid foundation for further exploration and application of these principles.
