Understanding the molecular shape of C2H4, commonly known as ethylene, is crucial for various fields, including chemistry, biology, and materials science. Ethylene is a simple hydrocarbon with the chemical formula C2H4. Its molecular shape and structure play a significant role in its chemical properties and reactivity. This post delves into the molecular shape of C2H4, its significance, and its applications.
Understanding the Molecular Structure of C2H4
Ethylene, or C2H4, is an unsaturated hydrocarbon with a double bond between the two carbon atoms. This double bond is crucial in determining the molecular shape and properties of ethylene. The molecular shape of C2H4 can be understood through its Lewis structure and Valence Shell Electron Pair Repulsion (VSEPR) theory.
Lewis Structure of C2H4
The Lewis structure of C2H4 shows that each carbon atom is bonded to two hydrogen atoms and one other carbon atom. The double bond between the carbon atoms consists of one sigma (Ο) bond and one pi (Ο) bond. The sigma bond is formed by the overlap of sp2 hybridized orbitals, while the pi bond is formed by the side-by-side overlap of p orbitals.
Here is the Lewis structure of C2H4:
VSEPR Theory and Molecular Shape
According to VSEPR theory, the molecular shape of a molecule is determined by the repulsion between electron pairs in the valence shell of the central atom. In the case of C2H4, each carbon atom has three regions of electron density around it: two single bonds to hydrogen atoms and one double bond to the other carbon atom.

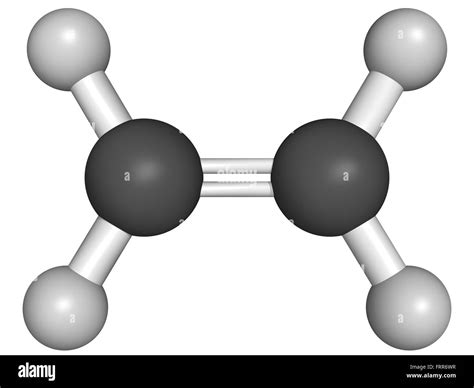

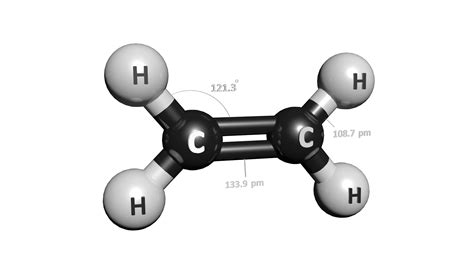

These three regions of electron density arrange themselves in a trigonal planar geometry around each carbon atom. The bond angles between the hydrogen atoms and the carbon atoms are approximately 120 degrees. This trigonal planar geometry is the molecular shape of C2H4.
The Significance of the Molecular Shape of C2H4
The molecular shape of C2H4 has several significant implications for its chemical properties and reactivity. Some of the key points include:
- Reactivity: The presence of a double bond in C2H4 makes it highly reactive. The pi bond is particularly susceptible to attack by electrophiles, making ethylene a versatile reagent in organic synthesis.
- Isomerism: The planar geometry of C2H4 allows for cis-trans isomerism. This means that substituents on the double bond can be on the same side (cis) or opposite sides (trans) of the molecule, leading to different isomers with distinct properties.
- Polymerization: Ethylene is a key monomer in the production of polyethylene, one of the most widely used plastics. The double bond in ethylene allows it to polymerize, forming long chains of polyethylene.
Applications of C2H4
The unique molecular shape and properties of C2H4 make it valuable in various applications. Some of the most notable uses include:
Industrial Chemistry
Ethylene is a fundamental building block in the chemical industry. It is used to produce a wide range of chemicals, including:
- Polyethylene: Used in the production of plastics, packaging materials, and various consumer goods.
- Ethylene oxide: Used as a disinfectant and in the production of antifreeze and detergents.
- Ethylene glycol: Used as an antifreeze and in the production of polyester fibers.
Agriculture
Ethylene plays a crucial role in plant biology. It is a natural plant hormone that regulates various processes, including:
- Fruit ripening: Ethylene accelerates the ripening process in fruits, making it useful in the agricultural industry.
- Flowering: Ethylene can induce flowering in certain plants, which is important for horticulture.
- Leaf abscission: Ethylene promotes the shedding of leaves, which is useful in controlling plant growth and harvesting.
Medical Applications
Ethylene and its derivatives have several medical applications, including:
- Anesthesia: Ethylene was historically used as an anesthetic, although it has been largely replaced by safer alternatives.
- Sterilization: Ethylene oxide is used as a sterilizing agent for medical equipment and supplies.
- Pharmaceuticals: Ethylene derivatives are used in the production of various pharmaceutical compounds.
Experimental Techniques for Studying the Molecular Shape of C2H4
Several experimental techniques can be used to study the molecular shape of C2H4. These techniques provide valuable insights into the structure and properties of ethylene. Some of the most commonly used methods include:
X-Ray Crystallography
X-ray crystallography is a powerful technique for determining the three-dimensional structure of molecules. By analyzing the diffraction pattern of X-rays passing through a crystal of ethylene, scientists can deduce the molecular shape and bond lengths.
π Note: X-ray crystallography requires the molecule to be in a crystalline form, which can be challenging for gases like ethylene.
Nuclear Magnetic Resonance (NMR) Spectroscopy
NMR spectroscopy is used to study the magnetic properties of atomic nuclei. By analyzing the NMR spectrum of ethylene, scientists can determine the electronic environment around the carbon and hydrogen atoms, providing insights into the molecular shape and bonding.
π Note: NMR spectroscopy is non-destructive and can be used to study molecules in solution, making it a versatile tool for structural analysis.
Infrared (IR) Spectroscopy
IR spectroscopy involves the absorption of infrared light by a molecule, leading to the excitation of molecular vibrations. The IR spectrum of ethylene provides information about the bond strengths and molecular shape, as different vibrational modes correspond to specific bond types and geometries.
π Note: IR spectroscopy is particularly useful for identifying functional groups and studying the effects of molecular shape on vibrational modes.
Comparative Analysis of Molecular Shapes
To better understand the molecular shape of C2H4, it is helpful to compare it with other similar molecules. The following table provides a comparative analysis of the molecular shapes of ethylene (C2H4), ethane (C2H6), and acetylene (C2H2):
| Molecule | Chemical Formula | Molecular Shape | Bond Type |
|---|---|---|---|
| Ethylene | C2H4 | Trigonal Planar | One sigma and one pi bond |
| Ethane | C2H6 | Tetrahedral | Single sigma bonds |
| Acetylene | C2H2 | Linear | Two pi bonds and one sigma bond |
The comparison highlights the differences in molecular shape and bonding due to the presence of single, double, or triple bonds between the carbon atoms. These differences significantly impact the chemical properties and reactivity of each molecule.
The molecular shape of C2H4, with its trigonal planar geometry, is distinct from the tetrahedral shape of ethane and the linear shape of acetylene. This unique shape contributes to the reactivity and versatility of ethylene in various chemical and biological processes.
In conclusion, the molecular shape of C2H4 is a critical aspect of its chemical properties and applications. Understanding the trigonal planar geometry of ethylene, its reactivity, and its role in various fields provides valuable insights into its significance. From industrial chemistry to agriculture and medical applications, the molecular shape of C2H4 plays a pivotal role in its diverse uses. By studying the molecular shape of C2H4 through experimental techniques and comparative analysis, scientists can gain a deeper understanding of its properties and potential applications. This knowledge is essential for advancing research and development in chemistry, biology, and materials science.
