Mini Split Wiring

Mini split systems have become increasingly popular for their energy efficiency and flexibility in heating and cooling spaces. One of the critical aspects of installing a mini split system is the Mini Split Wiring. Proper wiring ensures that the system operates safely and efficiently. This guide will walk you through the essential steps and considerations for Mini Split Wiring, helping you understand the process and avoid common pitfalls.

Table of Contents

Understanding Mini Split Systems

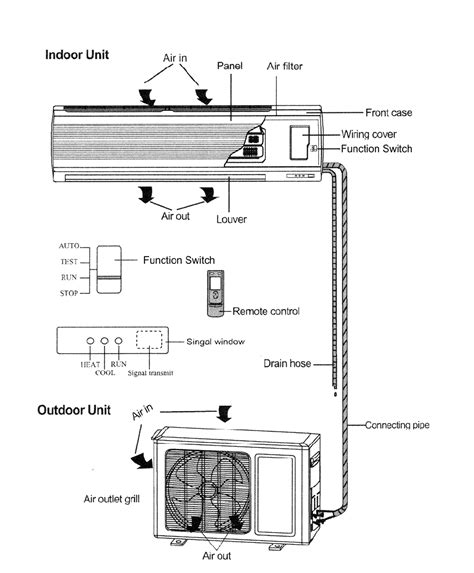

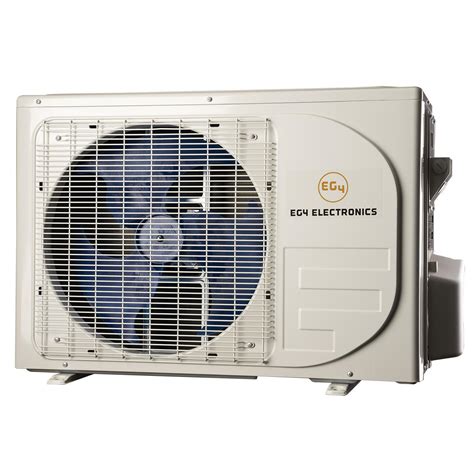

Mini split systems consist of two main components: the outdoor unit (condenser) and the indoor unit (evaporator). These units are connected by refrigerant lines and electrical wiring. The outdoor unit is responsible for compressing the refrigerant and dissipating heat, while the indoor unit distributes the cooled or heated air into the living space.

Preparation for Mini Split Wiring

Before diving into the wiring process, it's crucial to gather the necessary tools and materials. Here's a list of what you'll need:

Wire strippers
Screwdrivers
Pliers
Voltage tester
Electrical tape
Wire nuts
Appropriate gauge wires (usually 18-2 AWG)

Additionally, ensure you have the wiring diagram provided by the manufacturer. This diagram is essential for understanding the specific connections required for your mini split system.

Safety Precautions

Safety should always be your top priority when working with electrical components. Here are some key safety precautions to follow:

Turn off the power supply to the area where you will be working.
Use a voltage tester to ensure there is no live current before handling any wires.
Wear appropriate protective gear, including gloves and safety glasses.
Follow local electrical codes and regulations.

Step-by-Step Mini Split Wiring Guide

Now, let's go through the step-by-step process of Mini Split Wiring.

Step 1: Identify the Wires

Identify the wires from the outdoor and indoor units. Typically, you will have the following wires:

Power wires (usually black and white)
Control wires (usually red, blue, and green)
Ground wire (usually bare or green)

Refer to the wiring diagram provided by the manufacturer to confirm the color coding and connections.

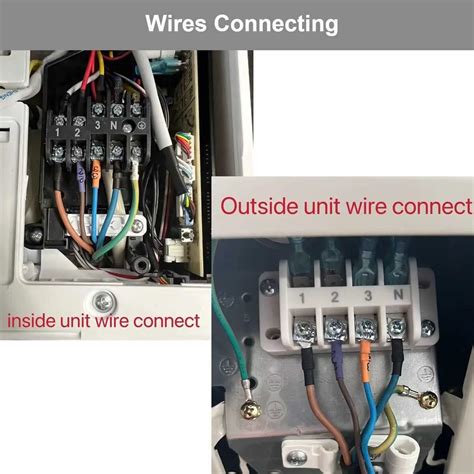

Step 2: Connect the Power Wires

Connect the power wires from the outdoor unit to the indoor unit. Ensure that the black wire (hot) is connected to the black wire, and the white wire (neutral) is connected to the white wire. Use wire nuts to secure the connections and wrap them with electrical tape for added insulation.

Step 3: Connect the Control Wires

Connect the control wires according to the wiring diagram. These wires are crucial for the communication between the indoor and outdoor units. Typically, the red wire is for the compressor, the blue wire is for the fan, and the green wire is for the ground. Ensure that each wire is securely connected and wrapped with electrical tape.

Step 4: Ground the System

Grounding the system is essential for safety. Connect the ground wire from the outdoor unit to the ground wire from the indoor unit. Ensure that the ground wire is securely connected and wrapped with electrical tape.

Step 5: Test the Connections

Before turning on the power, double-check all connections to ensure they are secure and properly insulated. Use a voltage tester to verify that there is no live current before turning on the power supply.

🔧 Note: Always follow the manufacturer's instructions for specific wiring details, as they may vary between different models.

Common Mistakes to Avoid

When performing Mini Split Wiring, it's essential to avoid common mistakes that can lead to system malfunctions or safety hazards. Here are some pitfalls to watch out for:

Incorrect wire gauge: Using the wrong gauge wire can lead to overheating and potential fires.
Improper grounding: Failing to ground the system properly can result in electrical shocks and system failures.
Loose connections: Loose wires can cause intermittent operation and potential short circuits.
Ignoring the wiring diagram: Each mini split system has a specific wiring diagram that must be followed for proper operation.

Troubleshooting Mini Split Wiring Issues

Even with careful installation, issues can arise with Mini Split Wiring. Here are some common problems and their solutions:

System Not Turning On

If the system does not turn on, check the following:

Ensure the power supply is turned on.
Verify that all wires are securely connected.
Check for any tripped circuit breakers or blown fuses.

Intermittent Operation

If the system operates intermittently, it may be due to:

Loose wire connections.
Incorrect wire gauge.
Faulty control wires.

Overheating

If the system overheats, it could be due to:

Incorrect wire gauge.
Poor ventilation around the outdoor unit.
Faulty compressor or fan.

🛠️ Note: If you encounter persistent issues, it may be best to consult a professional HVAC technician to diagnose and fix the problem.

Maintenance Tips for Mini Split Systems

Maintaining your mini split system ensures its longevity and efficiency. Here are some maintenance tips to keep your system running smoothly:

Regularly clean the filters to ensure proper airflow.
Inspect the outdoor unit for debris and clean it as needed.
Check the refrigerant levels and top them off if necessary.
Inspect the wiring periodically for any signs of wear or damage.

By following these maintenance tips, you can extend the lifespan of your mini split system and avoid costly repairs.

Conclusion

Proper Mini Split Wiring is crucial for the safe and efficient operation of your mini split system. By following the steps outlined in this guide and taking necessary safety precautions, you can ensure that your system is wired correctly. Regular maintenance and troubleshooting can help you address any issues that may arise, keeping your mini split system running smoothly for years to come. Always refer to the manufacturer’s instructions for specific wiring details and consult a professional if needed.
