Mini Split Sizing Chart

When it comes to heating and cooling solutions, mini-split systems have gained significant popularity due to their efficiency and flexibility. One of the critical aspects of installing a mini-split system is ensuring that you have the correct sizing. This is where a Mini Split Sizing Chart becomes invaluable. Proper sizing ensures optimal performance, energy efficiency, and comfort. This guide will walk you through the importance of a Mini Split Sizing Chart, how to use it, and key considerations to keep in mind.

Table of Contents

Understanding Mini-Split Systems

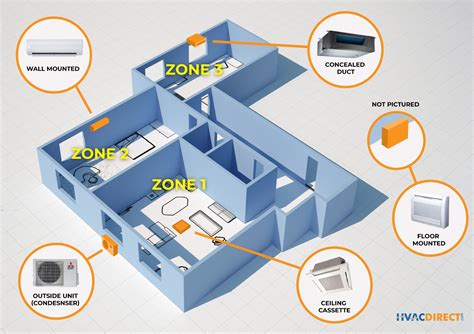

Mini-split systems, also known as ductless mini-split systems, consist of an outdoor unit and one or more indoor units. These systems are ideal for homes, offices, and commercial spaces where ductwork is not feasible or desired. They offer zoned heating and cooling, allowing you to control the temperature in different areas independently.

Why Use a Mini Split Sizing Chart?

A Mini Split Sizing Chart is a tool that helps determine the appropriate size of the mini-split system for a given space. Proper sizing is crucial for several reasons:

Energy Efficiency: An oversized or undersized system can lead to higher energy consumption and increased utility bills.
Comfort: A correctly sized system ensures even temperature distribution and consistent comfort.
Longevity: Proper sizing reduces wear and tear on the system, extending its lifespan.
Cost-Effectiveness: Avoiding the need for frequent repairs and replacements saves money in the long run.

How to Use a Mini Split Sizing Chart

Using a Mini Split Sizing Chart involves several steps. Here’s a detailed guide to help you through the process:

Step 1: Measure the Space

Begin by measuring the area where the mini-split system will be installed. This includes the length, width, and height of the room. Calculate the square footage by multiplying the length by the width.

Step 2: Determine the BTU Requirements

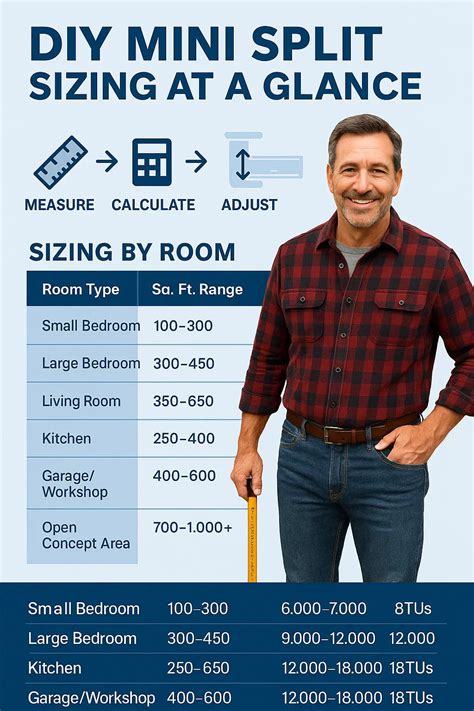

British Thermal Units (BTUs) are a measure of the cooling or heating capacity of a system. The Mini Split Sizing Chart typically provides BTU requirements based on square footage. For example:

Square Footage	BTU Requirements
100-150 sq ft	5,000-6,000 BTU
150-250 sq ft	6,000-7,000 BTU
250-350 sq ft	7,000-9,000 BTU
350-450 sq ft	9,000-12,000 BTU
450-550 sq ft	12,000-14,000 BTU
550-700 sq ft	14,000-18,000 BTU
700-1,000 sq ft	18,000-23,000 BTU
1,000-1,200 sq ft	23,000-24,000 BTU

Note that these are general guidelines. The actual BTU requirements can vary based on other factors such as ceiling height, insulation, and climate.

Step 3: Consider Additional Factors

Several additional factors can affect the BTU requirements:

Ceiling Height: Higher ceilings require more BTUs to cool or heat the space effectively.
Insulation: Well-insulated spaces require fewer BTUs, while poorly insulated spaces need more.
Climate: In regions with extreme temperatures, higher BTU systems may be necessary.
Sun Exposure: Rooms with significant sun exposure may require additional cooling capacity.
Number of Occupants: More people in a room generate more heat, which can affect the cooling requirements.

Adjust the BTU requirements based on these factors to ensure accurate sizing.

Step 4: Consult a Professional

While a Mini Split Sizing Chart is a useful tool, consulting with a professional HVAC technician is highly recommended. They can perform a detailed load calculation, taking into account all the specific factors of your space. This ensures that you get the most accurate sizing and optimal performance from your mini-split system.

🔍 Note: Always consider consulting with a professional HVAC technician for the most accurate sizing and installation advice.

Common Mistakes to Avoid

When sizing a mini-split system, there are several common mistakes to avoid:

Oversizing: An oversized system can lead to short cycling, where the system turns on and off frequently. This reduces efficiency and comfort.
Undersizing: An undersized system will struggle to maintain the desired temperature, leading to increased energy consumption and reduced comfort.
Ignoring Additional Factors: Failing to consider factors like insulation, ceiling height, and climate can result in inaccurate sizing.
DIY Sizing: While a Mini Split Sizing Chart is helpful, relying solely on it without professional consultation can lead to errors.

Benefits of Proper Mini-Split Sizing

Properly sizing your mini-split system offers numerous benefits:

Improved Energy Efficiency: A correctly sized system operates more efficiently, reducing energy consumption and lowering utility bills.
Enhanced Comfort: Proper sizing ensures even temperature distribution and consistent comfort throughout the space.
Extended Lifespan: A well-sized system experiences less wear and tear, extending its lifespan and reducing the need for repairs.
Cost Savings: Avoiding the need for frequent repairs and replacements saves money in the long run.

Proper sizing is essential for maximizing the benefits of your mini-split system.

Conclusion

In summary, using a Mini Split Sizing Chart is a crucial step in ensuring that your mini-split system is correctly sized for your space. Proper sizing enhances energy efficiency, comfort, and the overall lifespan of the system. By following the steps outlined in this guide and consulting with a professional, you can ensure that your mini-split system meets your heating and cooling needs effectively. Always consider the specific factors of your space and avoid common sizing mistakes to achieve the best results.
