Mig welding, or Metal Inert Gas welding, is a versatile and widely used welding process in various industries. It is known for its efficiency, speed, and the ability to weld a wide range of materials. Whether you are a professional welder or a hobbyist, understanding the fundamentals of Mig welding can significantly enhance your skills and the quality of your work. This guide will walk you through the basics of Mig welding, including equipment, techniques, and safety measures.
Understanding Mig Welding
Mig welding is a type of arc welding that uses a continuous solid wire electrode and an inert or semi-inert gas mixture to shield the weld from contaminants. The process is automated, making it faster and more efficient than manual welding methods. Mig welding is particularly popular for its ability to weld thin materials without warping and for its versatility in welding different types of metals, including steel, stainless steel, and aluminum.

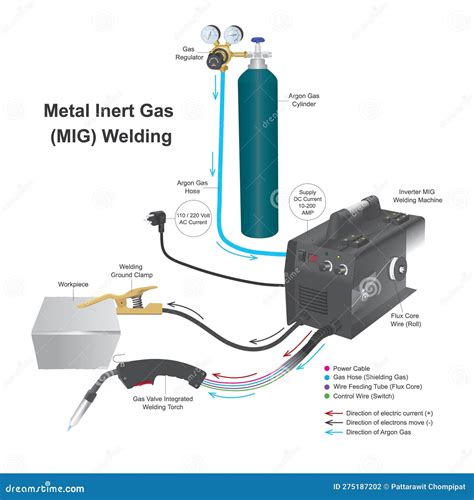

Equipment Needed for Mig Welding
To get started with Mig welding, you will need the following equipment:

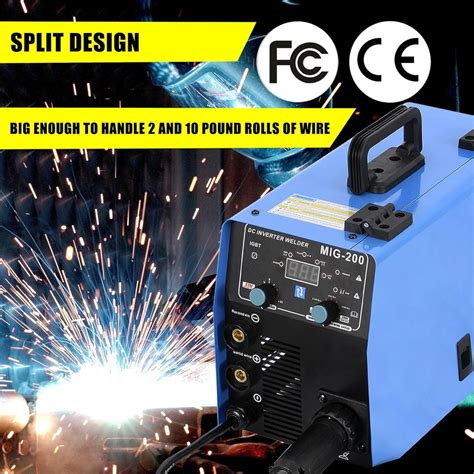

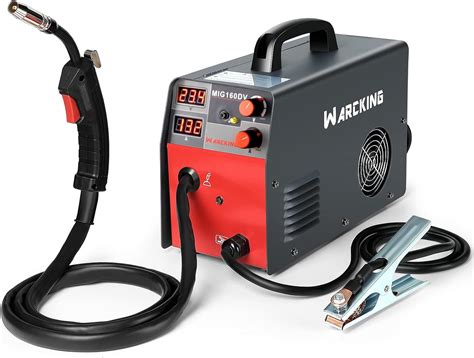

- Mig Welder: The main machine that supplies the electrical current and feeds the wire electrode.
- Shielding Gas: Typically a mixture of argon, helium, or carbon dioxide, used to protect the weld from atmospheric contaminants.
- Welding Wire: The consumable electrode that is fed through the welding gun.
- Welding Gun: The handheld device that directs the wire and gas to the weld area.
- Ground Clamp: Connects the workpiece to the welder to complete the electrical circuit.
- Safety Gear: Includes a welding helmet, gloves, and protective clothing to safeguard against sparks and UV radiation.
Setting Up Your Mig Welder
Before you begin Mig welding, it is crucial to set up your equipment correctly. Here are the steps to follow:
- Connect the Gas Cylinder: Attach the shielding gas cylinder to the welder and ensure the regulator is set to the correct pressure.
- Load the Welding Wire: Insert the spool of welding wire into the welder and thread it through the welding gun.
- Set the Polarity: Ensure the polarity is set to DCEN (Direct Current Electrode Negative) for most Mig welding applications.
- Adjust the Wire Feed Speed: Set the wire feed speed according to the thickness of the material you are welding.
- Select the Voltage: Choose the appropriate voltage setting based on the material and thickness.
- Connect the Ground Clamp: Attach the ground clamp to the workpiece to complete the electrical circuit.
🔧 Note: Always refer to the manufacturer's guidelines for specific settings and adjustments for your Mig welder.
Techniques for Effective Mig Welding
Mastering the techniques of Mig welding is essential for achieving high-quality welds. Here are some key techniques to focus on:
Proper Gun Angle
The angle of the welding gun relative to the workpiece significantly affects the quality of the weld. For most applications, a 90-degree angle is recommended. This ensures that the wire is deposited evenly and the shielding gas effectively protects the weld area.
Travel Speed
The speed at which you move the welding gun along the seam is crucial. Moving too slowly can result in excessive heat input and warping, while moving too quickly can lead to a weak weld. Practice maintaining a consistent travel speed to achieve optimal results.
Wire Feed Speed
The wire feed speed determines the amount of wire deposited per unit of time. Adjusting the wire feed speed allows you to control the size of the weld bead. For thinner materials, a slower wire feed speed is recommended, while thicker materials may require a faster speed.
Gas Flow Rate
The flow rate of the shielding gas is essential for protecting the weld from contaminants. A consistent gas flow ensures that the weld area is adequately shielded. Most Mig welding applications require a gas flow rate between 15-25 cubic feet per hour (CFH).
Safety Measures for Mig Welding
Safety is paramount when performing Mig welding. Here are some essential safety measures to follow:
- Wear Protective Gear: Always wear a welding helmet, gloves, and protective clothing to shield yourself from sparks and UV radiation.
- Ventilate the Work Area: Ensure proper ventilation to disperse fumes and gases generated during welding.
- Inspect Equipment: Regularly check your welding equipment for any signs of wear or damage.
- Follow Manufacturer Guidelines: Adhere to the manufacturer's instructions for safe operation and maintenance of your Mig welder.
⚠️ Note: Never weld in a confined space without proper ventilation. Fumes from welding can be hazardous to your health.
Common Mistakes to Avoid in Mig Welding
Even experienced welders can make mistakes. Here are some common errors to avoid:
- Incorrect Wire Feed Speed: Setting the wire feed speed too high or too low can result in poor weld quality.
- Inconsistent Travel Speed: Varying your travel speed can lead to uneven weld beads and weak spots.
- Improper Gun Angle: Holding the welding gun at the wrong angle can cause the wire to deposit unevenly.
- Inadequate Gas Flow: Insufficient shielding gas can result in contamination and weak welds.
Maintaining Your Mig Welder
Regular maintenance of your Mig welder is essential for ensuring its longevity and performance. Here are some maintenance tips:
- Clean the Welding Gun: Regularly clean the welding gun to remove any debris or spatter.
- Check the Wire Feed Mechanism: Ensure the wire feed mechanism is functioning smoothly and replace any worn parts.
- Inspect the Gas Hoses: Check for any leaks or damage in the gas hoses and replace them if necessary.
- Lubricate Moving Parts: Apply lubricant to moving parts to reduce friction and wear.
🛠️ Note: Always follow the manufacturer's guidelines for maintenance and replacement of parts.
Advanced Mig Welding Techniques
Once you have mastered the basics of Mig welding, you can explore advanced techniques to enhance your skills. Some advanced techniques include:
- Pulsed Mig Welding: This technique uses a pulsed current to control the heat input, making it ideal for welding thin materials.
- Spray Transfer: This method involves using a higher voltage and wire feed speed to create a fine spray of molten metal, resulting in a smooth and strong weld.
- Short-Circuiting Transfer: This technique is suitable for welding thin materials and involves the wire short-circuiting with the workpiece to create a small, controlled weld.
Applications of Mig Welding
Mig welding is used in a wide range of industries due to its versatility and efficiency. Some common applications include:
- Automotive Industry: Mig welding is used for repairing and fabricating vehicle parts.
- Construction Industry: It is employed for welding structural components and metal frames.
- Manufacturing Industry: Mig welding is used for producing various metal products, including appliances and machinery.
- Aerospace Industry: It is utilized for welding aircraft components and structures.
Mig welding is also popular among hobbyists for DIY projects and home repairs. Its ease of use and versatility make it an excellent choice for both beginners and experienced welders.
Troubleshooting Common Issues in Mig Welding
Even with proper technique and equipment, issues can arise during Mig welding. Here are some common problems and their solutions:
| Problem | Solution |
|---|---|
| Poor Weld Quality | Check the wire feed speed, travel speed, and gun angle. Ensure proper shielding gas flow. |
| Excessive Spatter | Adjust the wire feed speed and voltage settings. Ensure the welding gun is clean and free of debris. |
| Inconsistent Weld Beads | Maintain a consistent travel speed and wire feed speed. Check for any obstructions in the wire feed mechanism. |
| Gas Leaks | Inspect the gas hoses and connections for any leaks or damage. Replace any faulty components. |
🛠️ Note: Regular maintenance and proper setup can help prevent many common issues in Mig welding.
Mig welding is a powerful and versatile welding process that offers numerous benefits for both professional and hobbyist welders. By understanding the fundamentals of Mig welding, setting up your equipment correctly, and mastering essential techniques, you can achieve high-quality welds and enhance your welding skills. Always prioritize safety and regular maintenance to ensure the longevity and performance of your Mig welder.
