Welding is a crucial skill in various industries, from construction to automotive repair. Among the different welding techniques, Mig Welder Welding stands out for its versatility and ease of use. This method, also known as Gas Metal Arc Welding (GMAW), uses a continuously fed solid wire electrode and an inert or semi-inert gas mixture to shield the weld from contaminants. Whether you're a beginner or an experienced welder, understanding the intricacies of Mig Welder Welding can significantly enhance your welding capabilities.
Understanding Mig Welder Welding
Mig Welder Welding is a semi-automatic or automatic arc welding process that uses a continuous solid wire electrode. The wire is fed through a welding gun and into the weld pool, where it melts and joins the base metals. The process is shielded by an inert or semi-inert gas, typically a mixture of argon and carbon dioxide, which protects the weld from atmospheric contaminants.
One of the key advantages of Mig Welder Welding is its versatility. It can be used on a wide range of materials, including steel, stainless steel, and aluminum. Additionally, it is suitable for various thicknesses of metal, making it a popular choice for both thin and thick materials. The process is also relatively easy to learn, making it an excellent option for beginners.
Equipment Needed for Mig Welder Welding
To get started with Mig Welder Welding, you'll need several essential pieces of equipment. Here's a list of the key components:

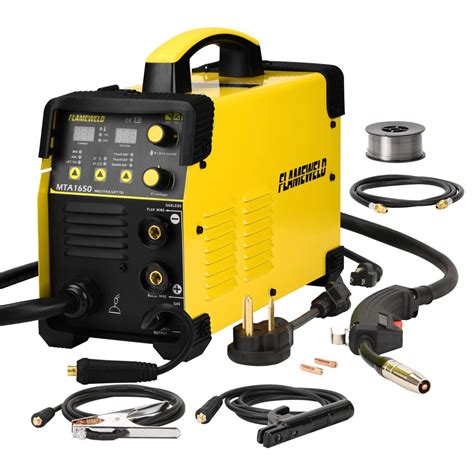

- Mig Welder: The main machine that supplies the electrical current and feeds the wire electrode.
- Welding Gun: The tool used to direct the wire and gas to the weld area.
- Wire Feed Unit: A mechanism that feeds the wire electrode at a consistent speed.
- Shielding Gas: Typically a mixture of argon and carbon dioxide, used to protect the weld from contaminants.
- Power Source: Provides the electrical current needed for the welding process.
- Safety Gear: Includes welding helmets, gloves, and protective clothing to ensure safety.
Setting Up Your Mig Welder
Before you begin Mig Welder Welding, it's essential to set up your equipment correctly. Here are the steps to follow:
- Connect the Power Source: Ensure your welder is properly connected to a power source. Most Mig Welder Welding machines require a 220-volt power supply.
- Install the Wire: Load the wire spool into the wire feed unit and thread the wire through the welding gun. Make sure the wire is properly aligned and fed smoothly.
- Set the Gas Flow: Connect the shielding gas cylinder to the welder and adjust the gas flow rate according to the manufacturer's recommendations.

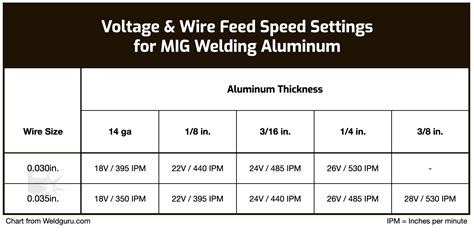

- Adjust the Settings: Set the voltage and wire feed speed on the welder. These settings will depend on the type and thickness of the metal you are welding.
- Test the Equipment: Perform a test weld on a scrap piece of metal to ensure everything is working correctly.
🛠️ Note: Always refer to the manufacturer's manual for specific instructions on setting up your Mig Welder Welding equipment.
Techniques for Effective Mig Welder Welding
Mastering the techniques of Mig Welder Welding is crucial for achieving high-quality welds. Here are some key techniques to focus on:
Proper Gun Angle
The angle of the welding gun significantly affects the quality of the weld. For most applications, a 90-degree angle is recommended. This ensures that the wire is directed straight into the weld pool, promoting better penetration and fusion.
Travel Speed
The speed at which you move the welding gun along the joint is critical. Moving too slowly can result in excessive heat input and a wider bead, while moving too quickly can lead to poor fusion and a weak weld. Practice maintaining a consistent travel speed to achieve optimal results.
Wire Feed Speed
The wire feed speed determines the amount of wire deposited into the weld pool. Adjusting this setting correctly is essential for controlling the bead size and penetration. Experiment with different wire feed speeds to find the best setting for your specific application.
Gas Shielding
Proper gas shielding is crucial for preventing contaminants from entering the weld pool. Ensure that the gas flow rate is set correctly and that the shielding gas is directed properly to cover the weld area. Any disruption in the gas shield can lead to porosity and weak welds.
Common Mistakes to Avoid in Mig Welder Welding
Even experienced welders can make mistakes. Here are some common errors to avoid when performing Mig Welder Welding:
- Incorrect Wire Feed Speed: Setting the wire feed speed too high or too low can result in poor weld quality. Always adjust the speed according to the material and thickness.
- Inadequate Gas Shielding: Insufficient gas flow or improper shielding can lead to contamination and porosity in the weld. Ensure the gas flow rate is set correctly and the shielding gas covers the weld area.
- Improper Gun Angle: Holding the welding gun at the wrong angle can affect the penetration and fusion of the weld. Maintain a 90-degree angle for most applications.
- Incorrect Voltage Settings: Setting the voltage too high or too low can result in poor weld quality. Refer to the manufacturer's guidelines for the correct voltage settings based on the material and thickness.
- Excessive Heat Input: Moving the welding gun too slowly can cause excessive heat input, leading to a wider bead and potential warping of the metal. Maintain a consistent travel speed to control heat input.
Safety Precautions for Mig Welder Welding
Safety is paramount when performing Mig Welder Welding. Here are some essential safety precautions to follow:
- Wear Protective Gear: Always wear a welding helmet, gloves, and protective clothing to shield yourself from sparks, UV radiation, and heat.
- Ventilate the Work Area: Ensure proper ventilation to remove fumes and gases generated during welding. Use exhaust fans or work in a well-ventilated area.
- Inspect Equipment: Regularly inspect your welding equipment for any signs of damage or wear. Replace any faulty components immediately.
- Follow Manufacturer's Guidelines: Always follow the manufacturer's instructions for setting up and operating your Mig Welder Welding equipment.
- Keep a Fire Extinguisher Nearby: Have a fire extinguisher readily available in case of a fire emergency.
🛠️ Note: Never weld in an enclosed space without proper ventilation. The fumes generated during welding can be harmful to your health.
Applications of Mig Welder Welding
Mig Welder Welding is used in a wide range of applications across various industries. Some of the most common uses include:
- Automotive Repair: Mig Welder Welding is often used for repairing and fabricating automotive parts, including frames, body panels, and exhaust systems.
- Construction: In the construction industry, Mig Welder Welding is used for welding structural steel, such as beams, columns, and trusses.
- Manufacturing: Many manufacturing processes rely on Mig Welder Welding for assembling metal components, such as machinery parts, appliances, and furniture.
- Aerospace: In the aerospace industry, Mig Welder Welding is used for welding aircraft components, including fuselage sections, wings, and landing gear.
- Shipbuilding: Mig Welder Welding is essential in shipbuilding for welding hulls, decks, and other structural components.
Tips for Improving Your Mig Welder Welding Skills
Improving your Mig Welder Welding skills requires practice and attention to detail. Here are some tips to help you enhance your welding abilities:
- Practice Regularly: The more you practice, the better you will become. Spend time welding different types of materials and thicknesses to gain experience.
- Watch Tutorials: Watching instructional videos and tutorials can provide valuable insights and techniques. Look for reputable sources and experienced welders.
- Join a Welding Community: Engaging with other welders can provide support, advice, and opportunities to learn from their experiences.
- Experiment with Settings: Don't be afraid to experiment with different voltage, wire feed speed, and gas flow settings to find what works best for your specific application.
- Seek Feedback: Ask for feedback from experienced welders or instructors to identify areas for improvement.
🛠️ Note: Always prioritize safety when practicing and experimenting with Mig Welder Welding. Follow all safety guidelines and use protective gear.
Troubleshooting Common Issues in Mig Welder Welding
Even with proper setup and technique, issues can arise during Mig Welder Welding. Here are some common problems and their solutions:
| Issue | Possible Causes | Solutions |
|---|---|---|
| Porosity | Inadequate gas shielding, contaminated materials, or moisture in the wire. | Ensure proper gas shielding, clean the materials, and use dry wire. |
| Inconsistent Bead | Fluctuating wire feed speed, incorrect voltage settings, or inconsistent travel speed. | Adjust the wire feed speed, voltage, and maintain a consistent travel speed. |
| Excessive Spatter | High wire feed speed, incorrect voltage settings, or contaminated materials. | Reduce the wire feed speed, adjust the voltage, and clean the materials. |
| Poor Penetration | Low voltage settings, incorrect gun angle, or excessive travel speed. | Increase the voltage, maintain a 90-degree gun angle, and slow down the travel speed. |
| Burn-Through | Excessive heat input, thin materials, or incorrect wire feed speed. | Reduce the heat input, use thicker materials if possible, and adjust the wire feed speed. |
🛠️ Note: Regular maintenance of your Mig Welder Welding equipment can help prevent many of these issues. Keep your welder clean and well-maintained.
Mig Welder Welding is a versatile and efficient welding method that offers numerous benefits for both beginners and experienced welders. By understanding the equipment, techniques, and safety precautions, you can achieve high-quality welds and expand your welding capabilities. Whether you’re working in automotive repair, construction, manufacturing, or any other industry, mastering Mig Welder Welding can open up new opportunities and enhance your skills. With practice and attention to detail, you can become proficient in this essential welding technique and produce strong, reliable welds.
