When it comes to electrical wiring, safety and reliability are paramount. One of the most trusted solutions for ensuring both is the use of Metal Clad Cable 12/2. This type of cable is designed to provide robust protection against physical damage and environmental hazards, making it an ideal choice for a variety of applications. Whether you're working on a residential, commercial, or industrial project, understanding the benefits and proper installation of Metal Clad Cable 12/2 can significantly enhance the safety and efficiency of your electrical system.
What is Metal Clad Cable 12/2?

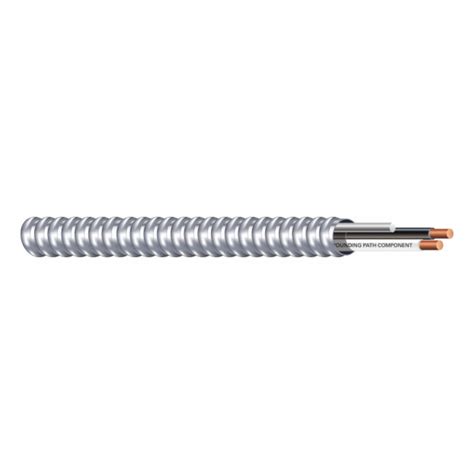

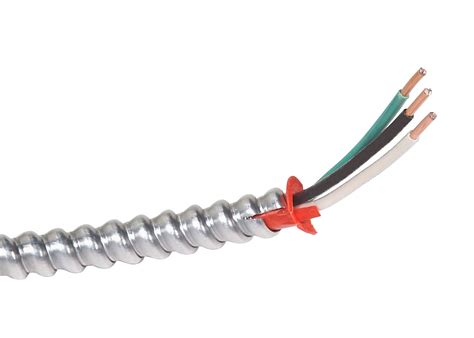

Metal Clad Cable 12/2 is a type of electrical cable that features a flexible metallic sheath surrounding the conductors. The "12/2" designation indicates that the cable contains two 12-gauge conductors, typically used for 120-volt circuits. The metallic sheath provides excellent protection against mechanical damage, making it suitable for installations where the cable may be exposed to rough conditions or potential impacts.
Key Features of Metal Clad Cable 12/2
Metal Clad Cable 12/2 offers several key features that make it a preferred choice for many electrical applications:
- Durability: The metallic sheath provides superior protection against physical damage, making it ideal for installations in areas where the cable may be exposed to rough conditions.
- Flexibility: Despite its robust construction, Metal Clad Cable 12/2 remains flexible, allowing for easy installation in various configurations.
- Fire Resistance: The cable is designed to withstand high temperatures, reducing the risk of fire hazards.
- Corrosion Resistance: The metallic sheath is often coated with a corrosion-resistant material, ensuring longevity even in harsh environments.
- Ease of Installation: The cable can be easily installed using standard electrical tools and techniques, making it a convenient choice for both professionals and DIY enthusiasts.
Applications of Metal Clad Cable 12/2
Metal Clad Cable 12/2 is versatile and can be used in a wide range of applications, including:
- Residential Wiring: Ideal for wiring in homes, especially in areas where the cable may be exposed to physical damage, such as basements, garages, and attics.
- Commercial Buildings: Suitable for offices, retail spaces, and other commercial settings where durability and safety are crucial.
- Industrial Settings: Often used in factories, warehouses, and other industrial environments where the cable may be subjected to rough conditions.
- Outdoor Installations: Can be used for outdoor wiring projects, provided it is properly protected from moisture and other environmental factors.
Installation Guide for Metal Clad Cable 12/2
Installing Metal Clad Cable 12/2 requires careful planning and adherence to electrical codes and safety standards. Here is a step-by-step guide to help you through the process:
Materials Needed
- Metal Clad Cable 12/2
- Electrical conduit and fittings
- Wire strippers
- Cable cutters
- Screwdrivers
- Cable ties or clamps
- Electrical tape
Step-by-Step Installation
- Plan the Route: Determine the path the cable will take from the power source to the destination. Ensure the route is clear of obstacles and follows the shortest possible path.
- Measure and Cut the Cable: Measure the required length of Metal Clad Cable 12/2 and cut it to size using cable cutters. Ensure you leave enough slack for connections and bends.
- Strip the Cable: Use wire strippers to remove the outer metallic sheath and expose the individual conductors. Be careful not to damage the insulation on the conductors.
- Install Conduit and Fittings: If necessary, install electrical conduit and fittings to protect the cable and ensure it follows the planned route. Secure the conduit using appropriate clamps or brackets.
- Connect the Cable: Connect the exposed conductors to the appropriate terminals in the electrical box or device. Ensure the connections are secure and properly insulated.
- Secure the Cable: Use cable ties or clamps to secure the cable along its route, ensuring it is properly supported and protected from physical damage.
- Test the Circuit: Once the installation is complete, test the circuit to ensure it is functioning correctly. Use a multimeter to check for continuity and proper voltage.
🔧 Note: Always follow local electrical codes and safety guidelines when installing Metal Clad Cable 12/2. If you are unsure about any aspect of the installation, consult a licensed electrician.
Safety Considerations
When working with Metal Clad Cable 12/2, it is essential to prioritize safety. Here are some key safety considerations to keep in mind:
- Proper Grounding: Ensure the cable is properly grounded to prevent electrical shocks and reduce the risk of fire.
- Avoid Overloading: Do not exceed the cable's ampacity rating to prevent overheating and potential fires.
- Use Appropriate Tools: Always use insulated tools designed for electrical work to minimize the risk of electrical shock.
- Wear Protective Gear: Use safety glasses, gloves, and other protective gear to protect yourself from potential hazards.
- Follow Electrical Codes: Adhere to local electrical codes and standards to ensure a safe and compliant installation.
Maintenance and Troubleshooting
Regular maintenance and prompt troubleshooting can extend the lifespan of Metal Clad Cable 12/2 and ensure its continued reliability. Here are some tips for maintaining and troubleshooting your cable:
- Inspect Regularly: Periodically inspect the cable for signs of damage, such as cuts, cracks, or corrosion. Address any issues promptly to prevent further damage.
- Check Connections: Ensure all connections are secure and properly insulated. Loose or corroded connections can lead to electrical faults and potential hazards.
- Monitor for Overheating: Keep an eye out for signs of overheating, such as discoloration or melting of the insulation. If you notice any issues, disconnect the power and inspect the cable immediately.
- Test Continuity: Use a multimeter to test the continuity of the cable. If you detect any breaks or shorts, replace the affected section of the cable.
Comparing Metal Clad Cable 12/2 with Other Cable Types
When choosing the right cable for your electrical project, it's essential to compare Metal Clad Cable 12/2 with other cable types to ensure you make an informed decision. Here is a comparison table to help you understand the differences:
| Cable Type | Protection | Flexibility | Cost | Typical Applications |
|---|---|---|---|---|
| Metal Clad Cable 12/2 | High | Moderate | Moderate | Residential, Commercial, Industrial |
| Non-Metallic Sheathed Cable (NM) | Low | High | Low | Residential, Light Commercial |
| Armored Cable (AC) | High | Low | High | Industrial, Commercial |
| Underground Feeder Cable (UFC) | Moderate | Low | Moderate | Outdoor, Underground |
Each type of cable has its strengths and weaknesses, and the best choice depends on the specific requirements of your project. Metal Clad Cable 12/2 stands out for its durability and versatility, making it a reliable option for a wide range of applications.
In conclusion, Metal Clad Cable 12⁄2 is a robust and versatile solution for electrical wiring projects. Its durable construction, flexibility, and resistance to environmental hazards make it an ideal choice for residential, commercial, and industrial applications. By understanding the key features, proper installation techniques, and safety considerations, you can ensure a safe and reliable electrical system. Regular maintenance and prompt troubleshooting will further enhance the longevity and performance of your Metal Clad Cable 12⁄2 installation.
